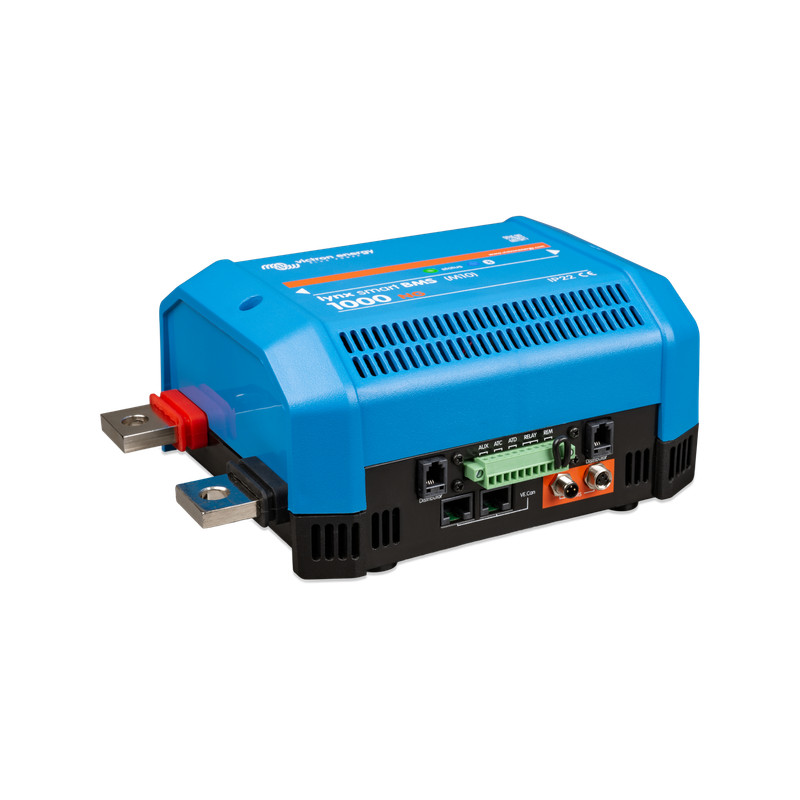

Battery Monitor Lynx Smart BMS 1000 NG (M10)
Lynx Smart BMS 1000 NG (M10) is an advanced battery management system designed for Victron Energy Lithium NG batteries. This robust BMS system ensures reliable operation, optimal safety and effective monitoring of Lithium NG storage batteries.
- On request
Product details
- Brand
- Victron Energy
- Reference
- LYN034170310
- EAN13
- 8719076063568
- MPN
- LYN034170310
Data Sheet
| Model | Version |
|---|---|
| Lynx | Smart BMS |
Description
Description

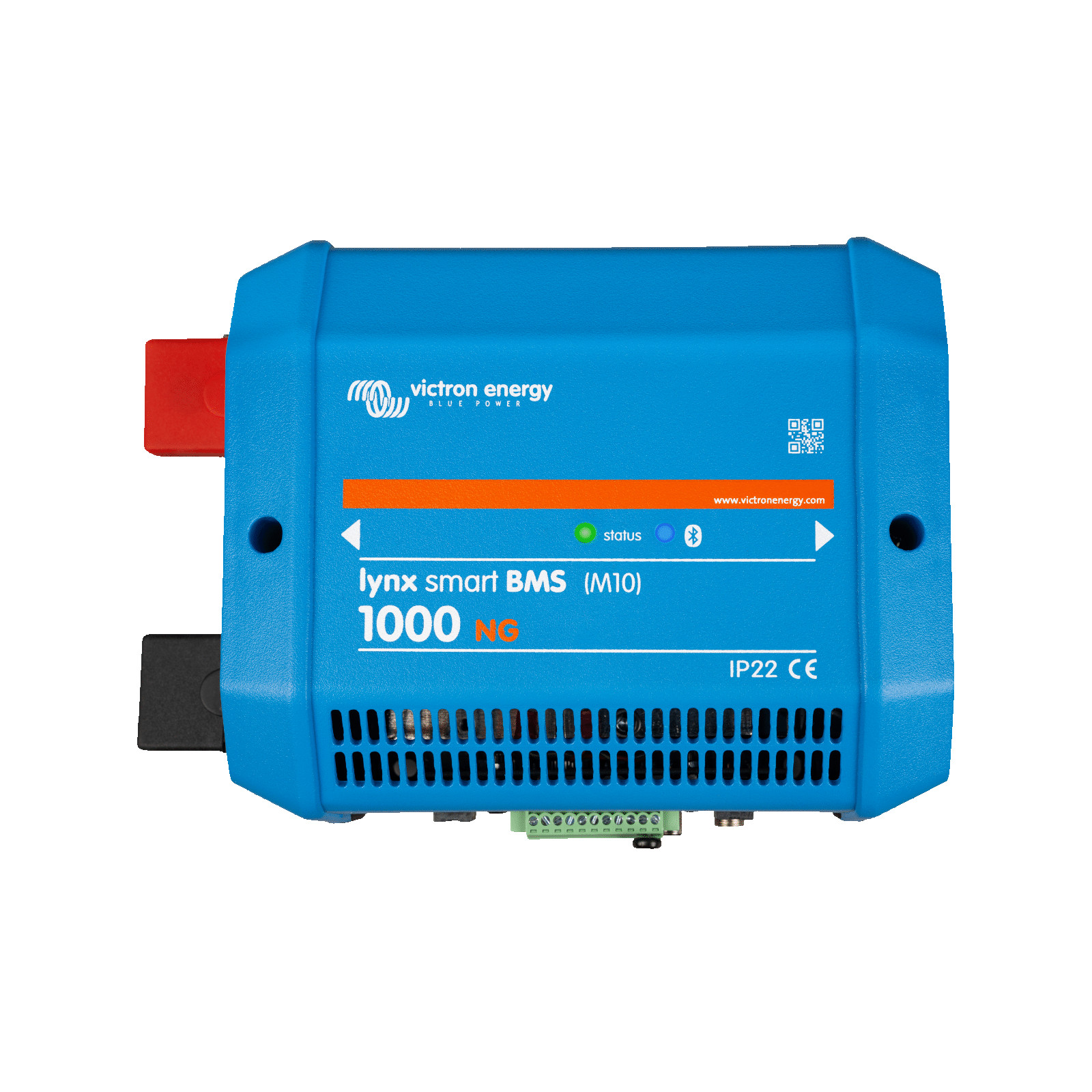

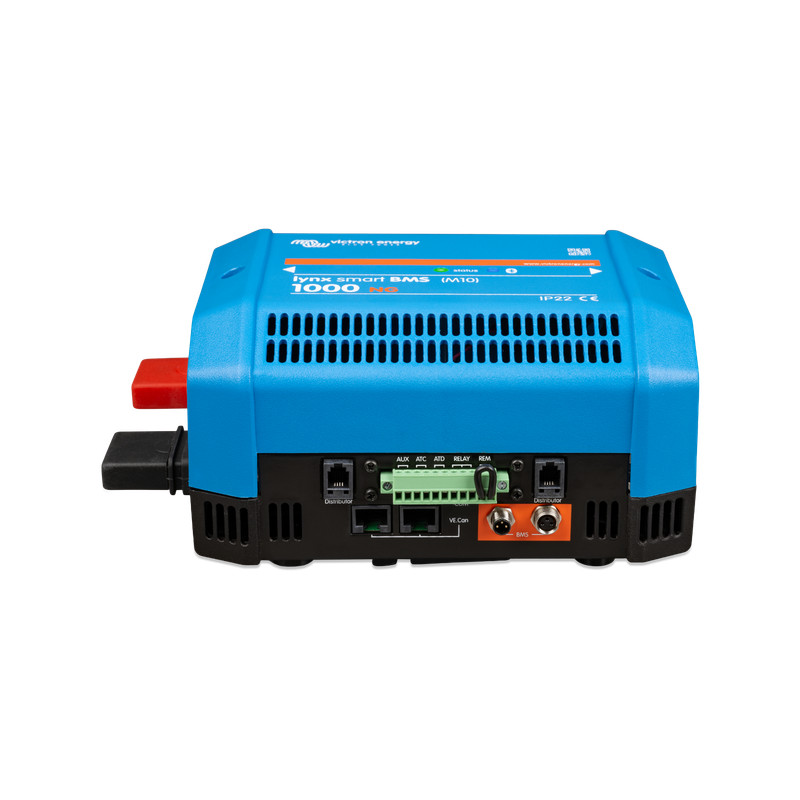

Lynx Smart BMS 1000 NG (M10)
Modern battery management system
Victron Energy Lynx Smart BMS NG is a dedicated battery management system designed to work with the Victron Lithium NG (LiFePO4) series. The device is the ‘brain’ of the installation, providing the highest level of safety and control for the safest lithium technology available on the market.
The system offers tremendous configuration flexibility, allowing you to build 12V, 24V or 48V energy banks by connecting batteries in series and parallel. The BMS supports up to 50 battery units in a single system, allowing you to create powerful storage facilities with capacities of up to 192 kWh.
This is the ideal solution for complex installations requiring reliability. The ability to connect multiple Lynx Smart BMS modules in parallel allows for unlimited capacity scaling and ensures full redundancy – in the event of a single bank failure, the system continues to supply power without interruption.
Key Features
Discover the advantages that make a difference
Intelligent monitoring
The Lynx Smart BMS 1000 NG (M10) offers advanced battery management features, including voltage, current, temperature and charge status monitoring, ensuring optimal performance and long battery life.
Easy integration
Designed for easy integration with Victron Energy systems. M10 terminals enable quick and secure cable connection, facilitating installation and maintenance.
Advanced energy management
Lynx Smart BMS NG is part of Victron's modular energy management system, which enables effective monitoring and optimisation of energy distribution in complex energy installations.
Why Lynx Smart BMS NG?
This module is the ideal choice for systems requiring the highest level of protection, automatic energy management, and seamless scalability of large energy banks.
Victron Energy Lynx Smart BMS NG
The Heart of Your System
Main Functions
Main functions and how they work

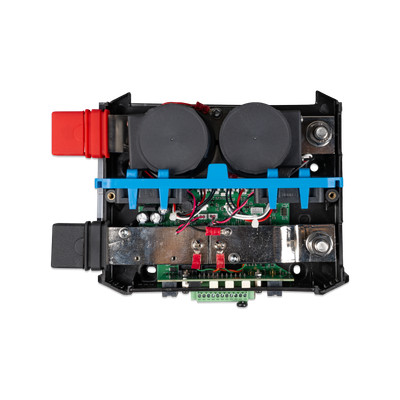

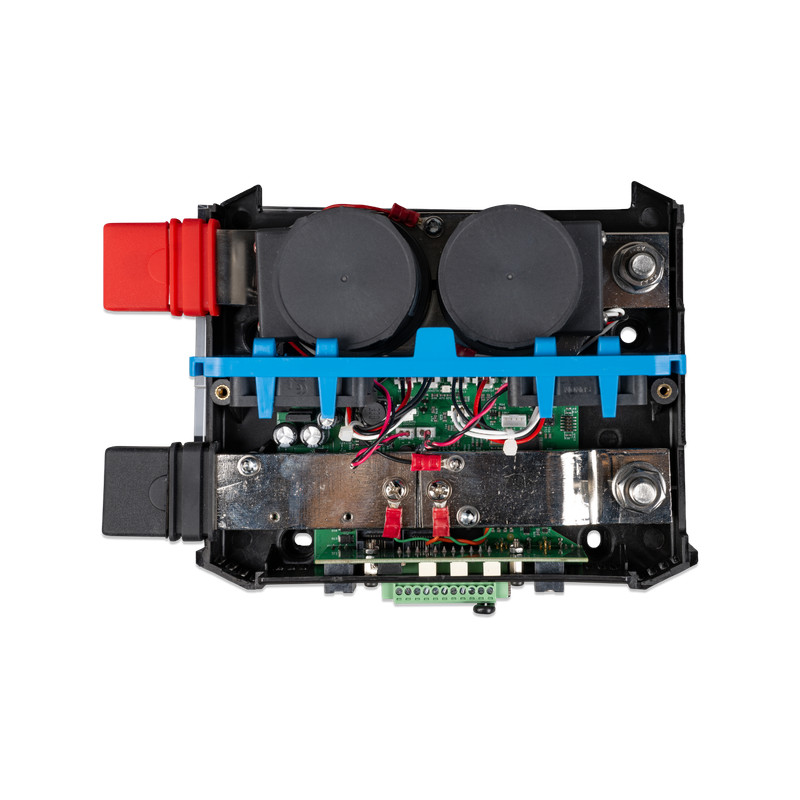

Built-in 1000A contactor
The Lynx Smart BMS NG features a built-in 1000A contactor that acts as an additional safety system, protecting the batteries in the event that the main controllers fail to switch off loads or chargers at the right time. This contactor can also act as a remote-controlled main switch for the system.
Pre-charge circuit
This system has a built-in pre-charge circuit, eliminating the risk of high inrush currents when connecting capacitive loads such as MultiPlus/Quattro inverters or others, thus eliminating the need for external pre-charging.
Monitoring and control
Monitoring and control of the BMS system is done via Bluetooth using the VictronConnect app or GX devices such as Cerbo GX, with access to the VRM Portal platform. The built-in battery monitor provides real-time information on charge status, voltage, current, historical data and other relevant parameters.
Programmable relay
& AUX terminal
Lynx Smart BMS NG offers the possibility to program a relay that can act as an alarm or control the alternator via an external regulator. It operates in ATC mode, activating only when the contactor is closed, ensuring safe energy management.
The built-in AUX connector provides auxiliary power in the event of low cell voltage, allowing power to be maintained for devices such as GX devices after the BMS system has switched off the loads.
System Examples
Examples of Lynx Smart BMS NG configurations
Lynx Smart BMS NG, 2x Lynx Distributor and lithium NG batteries
At the heart of this system is the Lynx Smart BMS NG with two Lynx Distributors and a Cerbo GX with a GX touch panel. These systems continuously monitor batteries, fuses, connected loads, chargers and inverters.
This system includes the following elements:
- Lynx Smart BMS NG with built-in contactor and battery monitor.
- Lynx Distributor with 2 fused paralleled lithium NG batteries
- Lynx Distributor with fused connections for chargers, inverter/charger(s) and loads.
- Cerbo GX (or other GX device).
Lynx Smart BMS NG only
For a very slim line system, the Lynx Smart BMS NG can be used just by itself. This is usefull if the system contains a single lithium battery or a single series string of lithium batteries together with a simple DC system.
Please also note that no GX device is used. It is not absolutely necessary for the operation of the Lynx Smart BMS. However, without GX device it is not possible to control compatible inverter/chargers and MPPTs via DVCC.
The Lynx Distribution System
The Lynx Distribution System is a modular busbar system that incorporates DC connections, distribution, fusing, battery monitoring and/or Lithium battery management.
Specifications
Lynx Smart BMS 1000 NG - Victron Energy |
|
|
Supply voltage range |
9 - 60V DC |
|
Supported system voltages |
12, 24 or 48V |
|
Reverse polarity protection |
No |
|
Main safety contactor continuous current rating |
1000A |
|
Main safety contactor peak current rating/p> |
1200A for 5 minutes |
|
Power consumption OFF mode |
0.3mA for all system voltages |
|
Power consumption in Standby mode |
Approximately 0.6W (50mA at 12V) |
|
Power consumption in ON mode |
Approximately 4,2W (350mA at 12V) depending on the state of the relays |
|
Minimum load resistance for pre-charging |
10Ω and above for 12V systems |
|
AUX output maximum current rating |
1.1A continuous, protected by resettable fuse |
|
Allow-to-charge/discharge port maximum current rating |
0.5A at 60Vdc, protected by resettable fuse |
|
Programmable relay (SPDT) maximum current rating |
2A at 60Vdc |
Connections |
|
|
Busbar |
M10 (Torque: 33 Nm) |
|
VE.Can |
RJ45 and RJ45 terminator |
|
I/O |
Removable 13-pin multi-connector with screw terminals |
|
Battery BMS cables |
Male and female circular 3-pole connector with M8 screw ring |
|
Lynx Distributor (up to 4 modules) |
RJ10 (cable ships with each Lynx Distributor) |
Other |
|
|
Enclosure material |
ABS |
|
Enclosure dimensions (h x w x d) |
230 x 180 x 100 mm |
|
Weight |
2,7 kg |
|
Busbar material |
Tinned copper |
|
Busbar dimensions (h x w) |
8 x 30 mm |
|
Operating temperature range |
-40°C to +60° |
|
Humidity |
Max. 95% (non-condensing) |
|
Protection class |
IP22 |
Standards |
|
|
Safety |
EN-IEC 63000:2018 |
|
EMC |
EN-IEC 61000-6-3:2007/A1:2011/AC:2012 |
|
QMS |
NEN-EN-ISO 9001:2015 |
