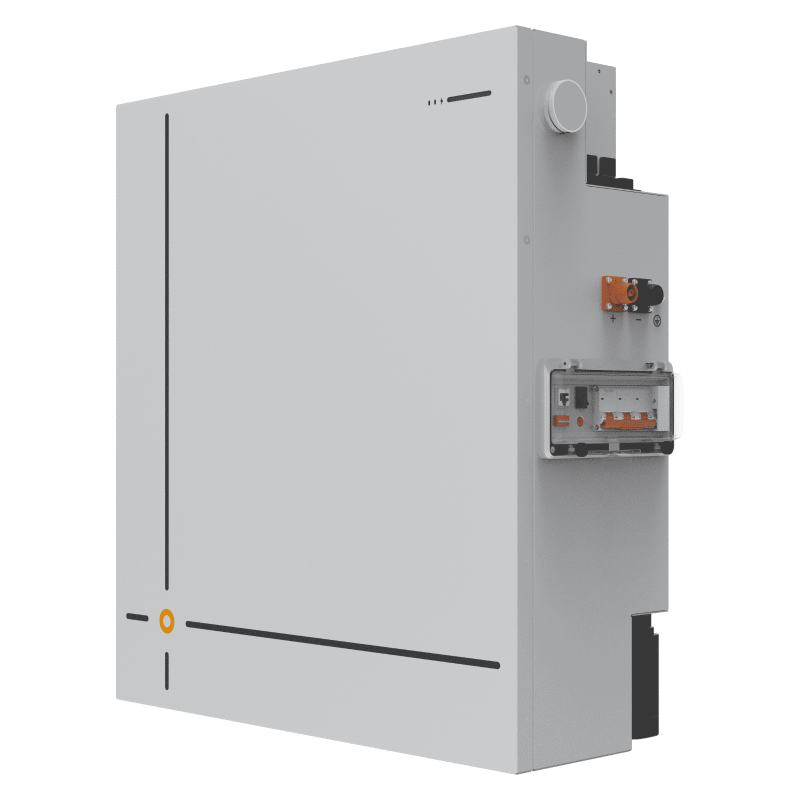

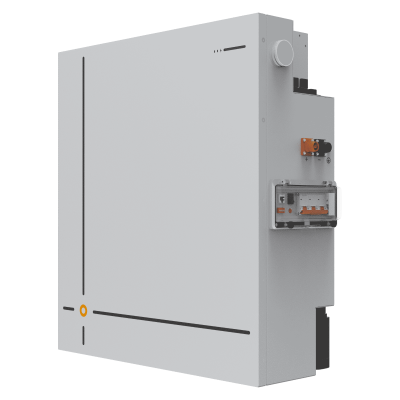

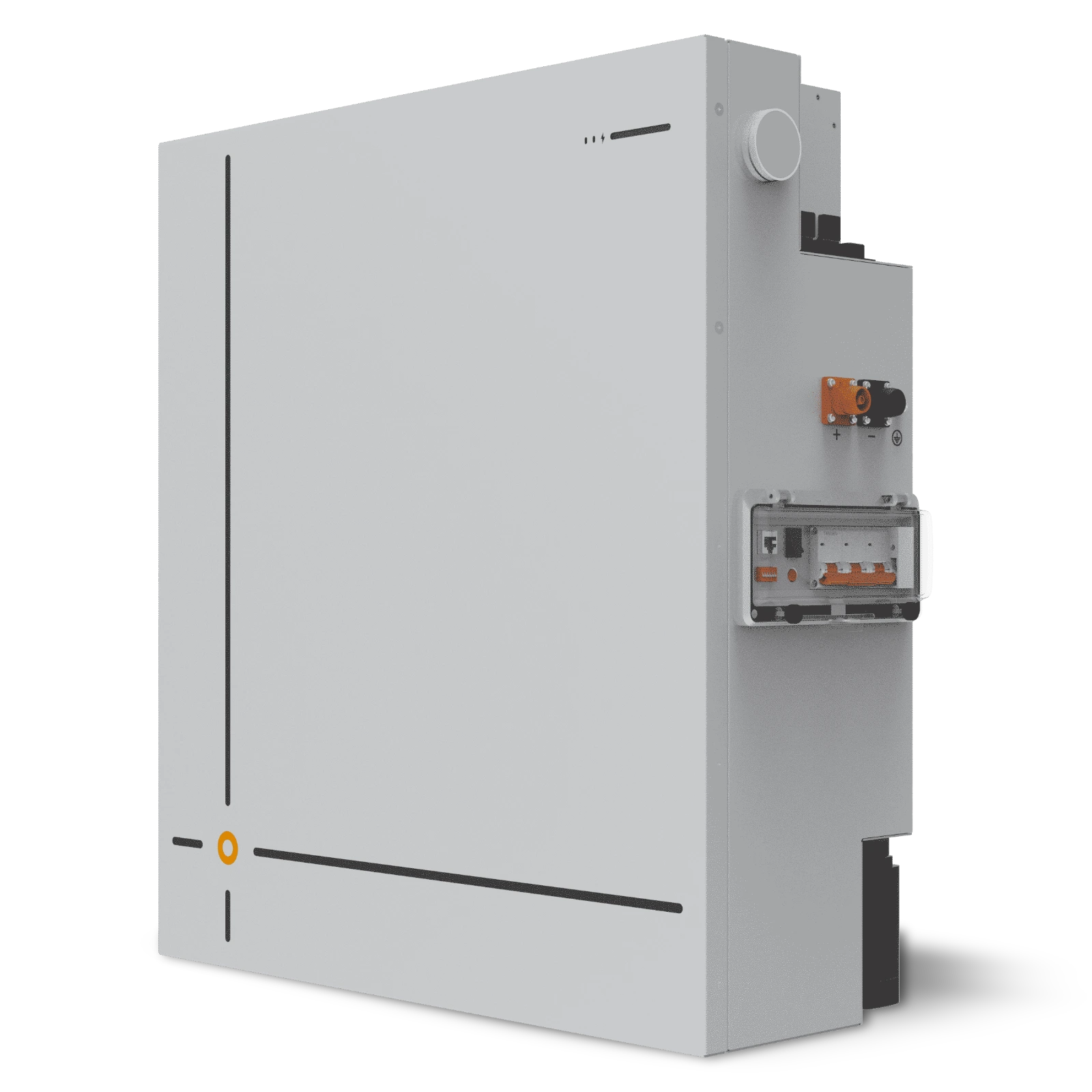

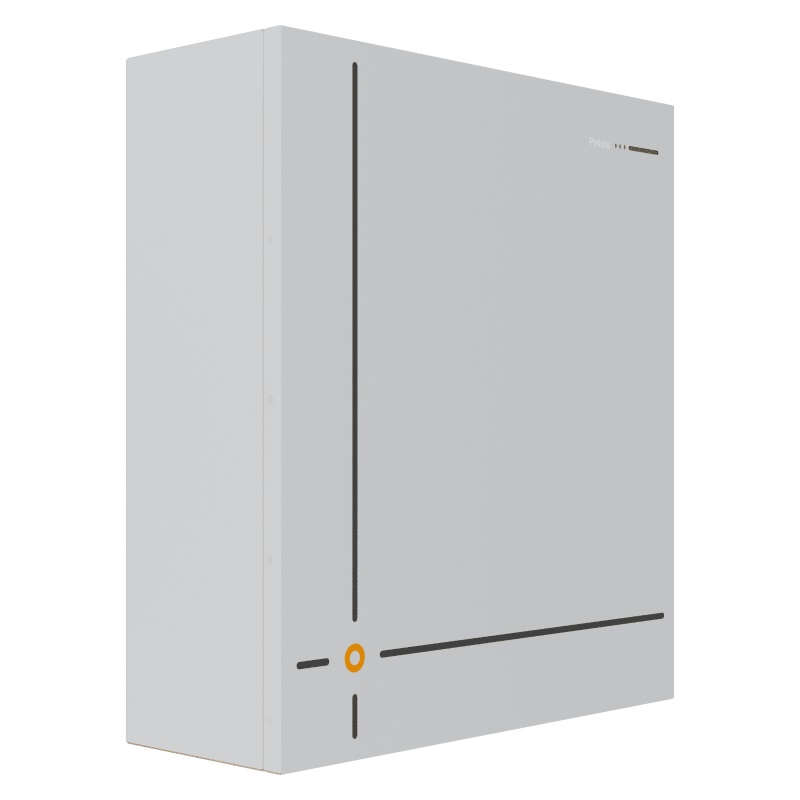

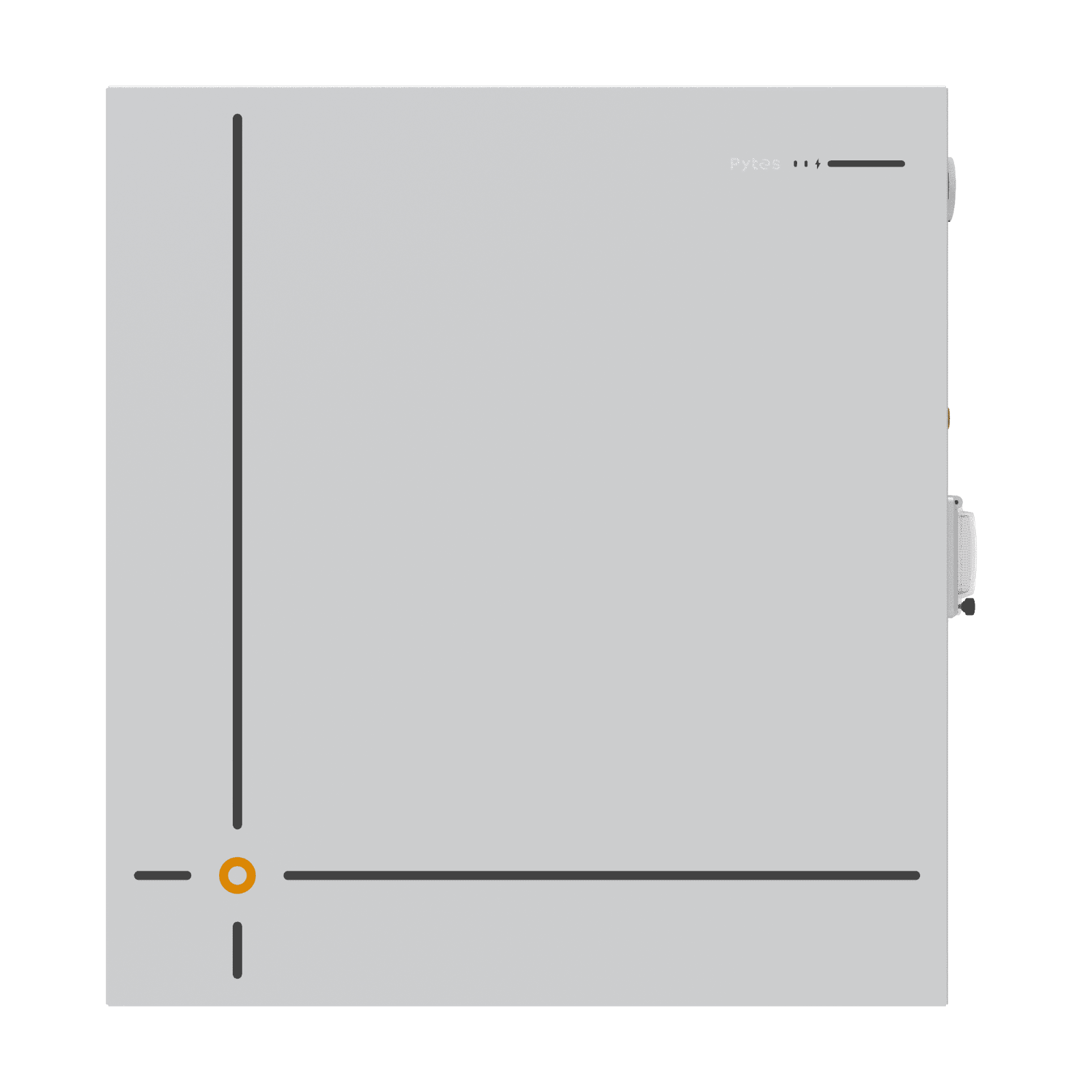

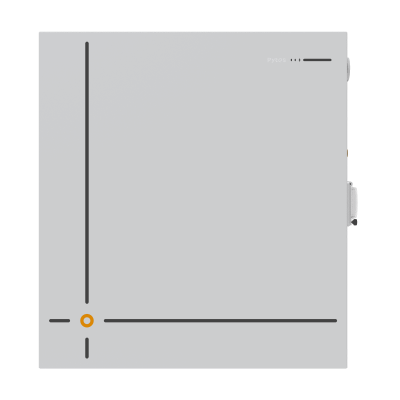

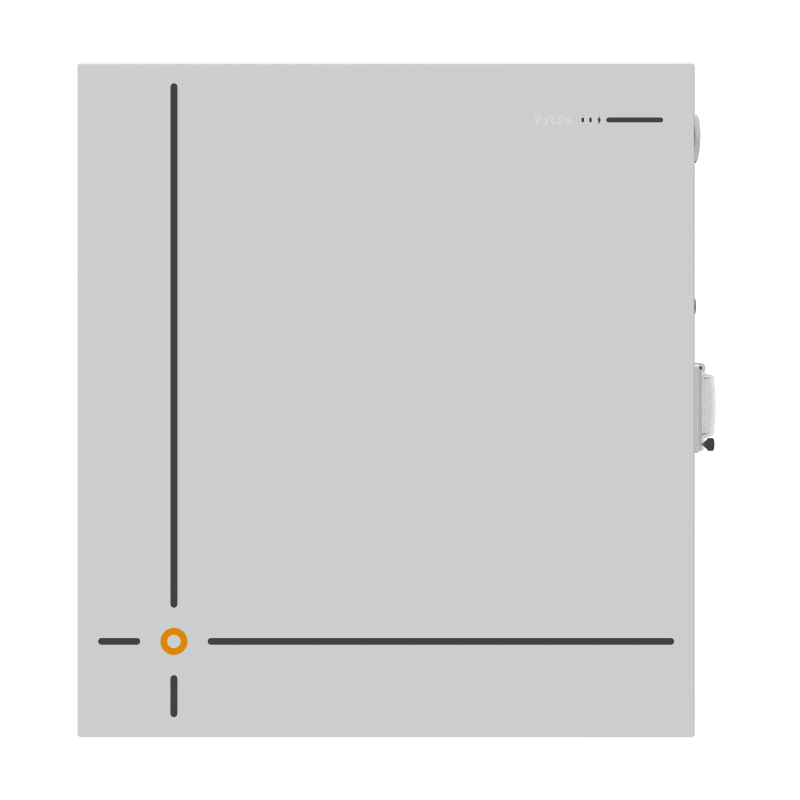

Energy Storage 16kWh Pytes V16
Pytes V16 is a high-performance, wall-mounted 51,2V LiFePO4 battery for all-weather energy storage. Offering 16kWh usable energy and 10,24kW output, IP66 enclosure, built-in heating, and 8000-cycle design ensure reliable, safe operation for residential and commercial solar/backup needs.
- On request
Product details
- Brand
- Pytes
- Reference
- 110402100209
Data Sheet
| Battery Chemistry | Voltage | Voltage Range | Charge Current | IP Rating |
|---|---|---|---|---|
| LiFePO4 | 51.2 V | 46.5-56.8 V | 125 A | IP66 |
Description
Pytes V16
16 kWh Wall Mounted LiFePO4 Battery
Meet Pytes V16
Pytes V16 is a high-power, outdoor-ready LiFePO4 battery storage designed to deliver reliable energy storage in challenging residential and light commercial environments. It combines 16.07kWh capacity with 10.24kW output, featuring an IP66 rating and integrated heating for harsh conditions.
This versatile battery simplifies deployments for installers and distributors through wide inverter compatibility and an integrated safety architecture. Its flexible wall or ground-mounted design, along with a 10-year warranty, ensures efficient, safe, and scalable energy solutions.
Powerful & Robust
Nominal Energy
51,2V 16kWh
Output Power
200A / 10,24kW
Warranty
10 Years
Integrated
Heating Pad
Ingress Protection
IP66
@ 90% DOD
8000 Cycles
Energy storage Pytes for your home system
Increase your home's energy self-sufficiency and optimize the use of energy from photovoltaic panels
The All Weather Battery
- IP66 Rated
- Integrated Heating Pad
- Corrosion Resistance C4-M

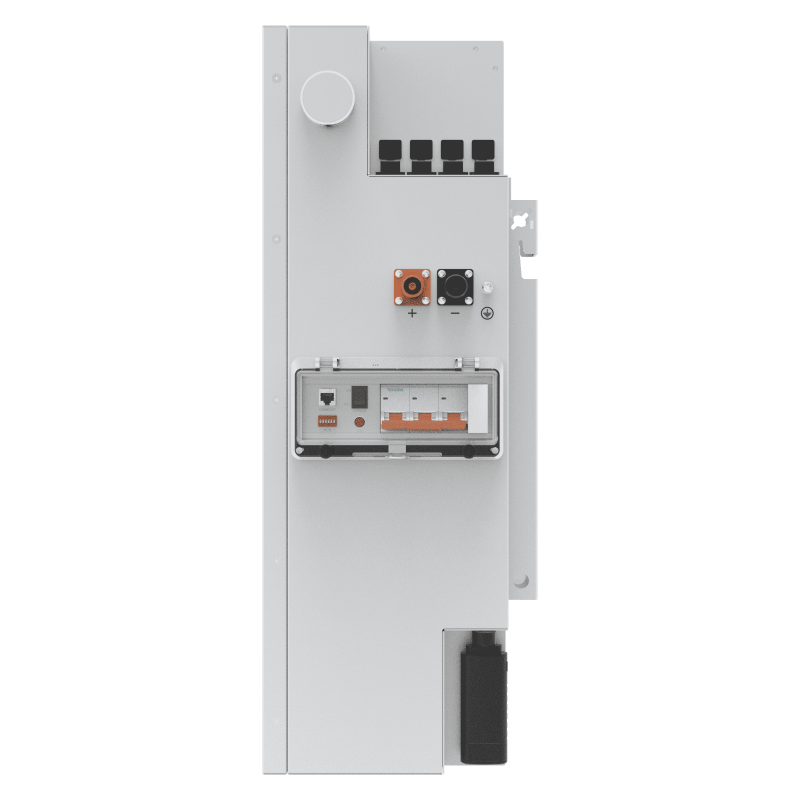

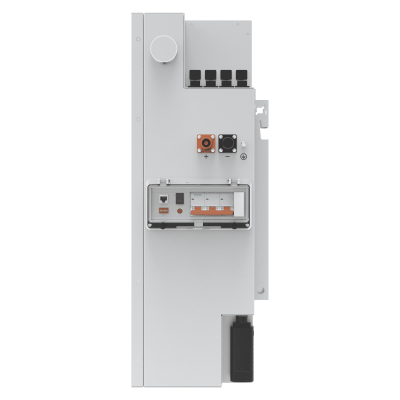

Fail-Safe Protections
- Integrated Battery Breaker
- Aerosol Fire Suppression
- Integrated Pre-charge Circuit
Certifications
- Confirms adherence to global safety and quality standards
- Guarantees long-term reliability and regulatory compliance
- UL IEC CE CEC SGIP
Powerful & Robust
- 200A / 10,24kW Output Power
- 16kWh Nominal Energy
- Delivers up to 8000 cycles @ 90% DOD
Wide Compatibility
- Closed Loop Communication with most inverters
- Supports RS485, CAN, WiFi, and dry contact communication
- Minimizes integration and compatibility concerns
Effortless Installation
- Wall / Ground Mounted
- Quick Commissioning
- Adapts easily to different site conditions
Data sheet
-
StructureDC Breaker 250V 250A
Pre-Charge Circuit -
Battery ChemistryLiFePO4
-
Voltage51.2 V
-
Voltage Range46.5-56.8 V
-
Weight130.5 kg
-
Maximum Discharge Current200 A
-
Capacity (Ah)314 Ah
-
Energy (kWh)16 kWh
-
Charge Current125 A
-
Discharge Current150 A
-
Communication ProtocolCAN
Dry Contact
RS485
Wi-Fi -
Operating Temperature (Charge)0°C ~ 55°C
-
Operating Temperature (Discharge)-20°C ~ 55°C
-
Cycle Life8000 Cycles
-
Fire SafetyIntegrated aerosol fire suppression module
-
IP RatingIP66
-
Dimensions (W x H x D)671 x 700 x 260 mm
