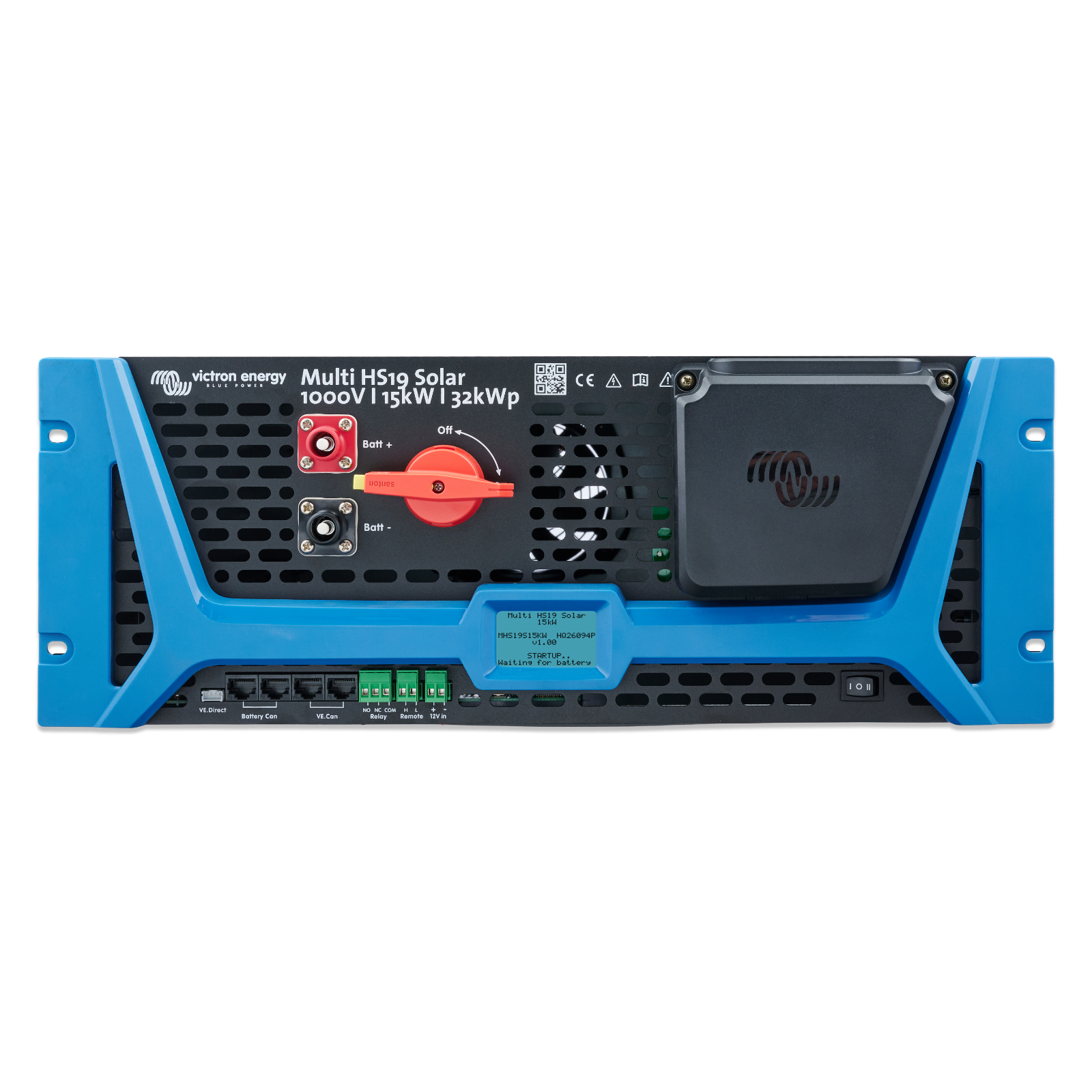

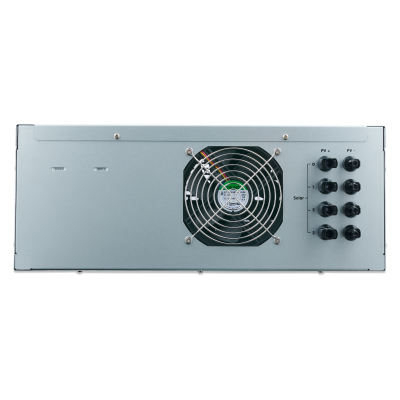

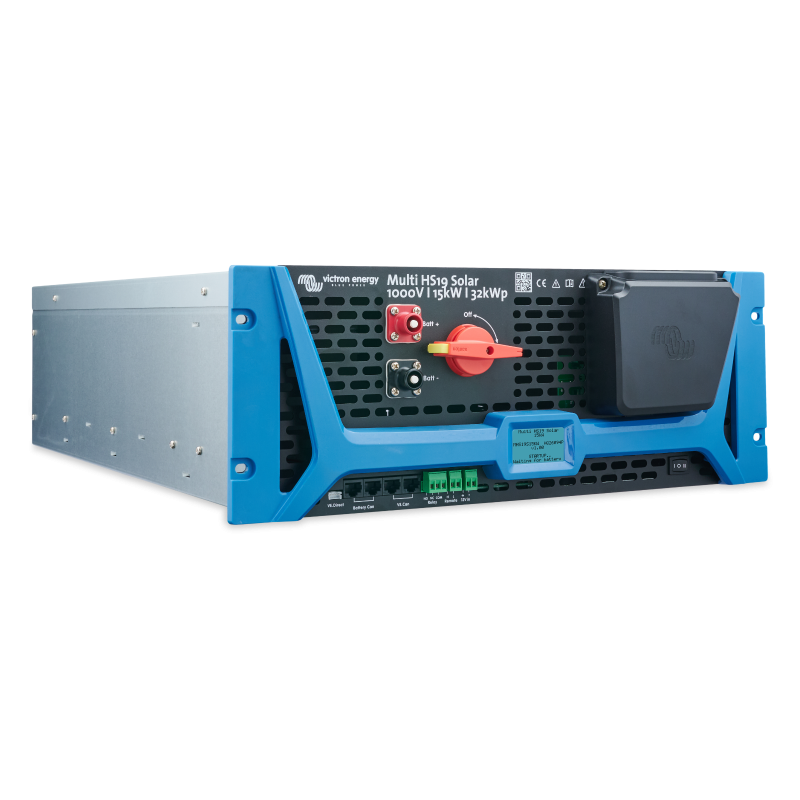

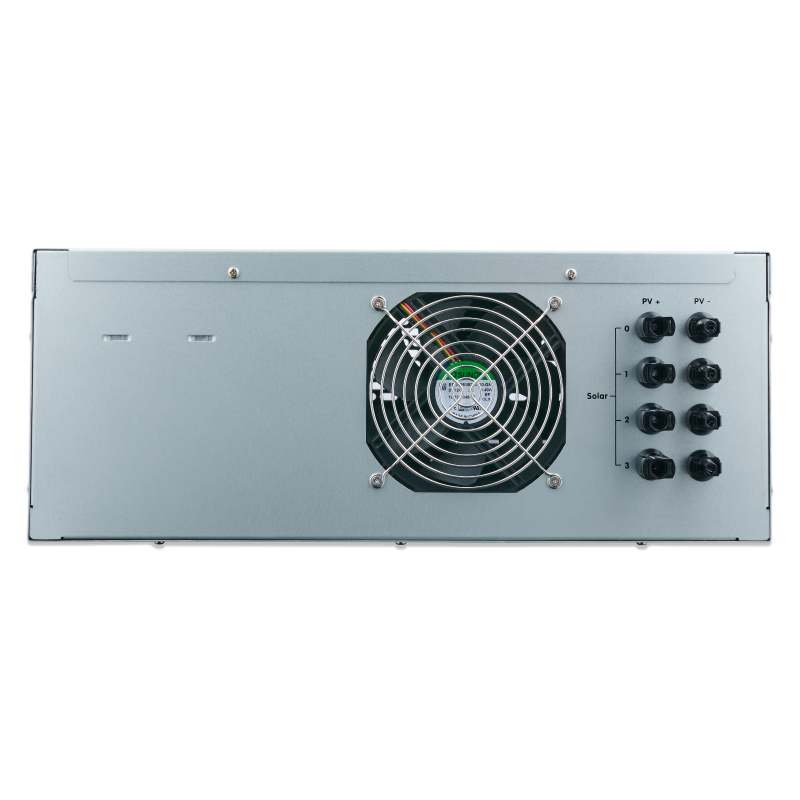

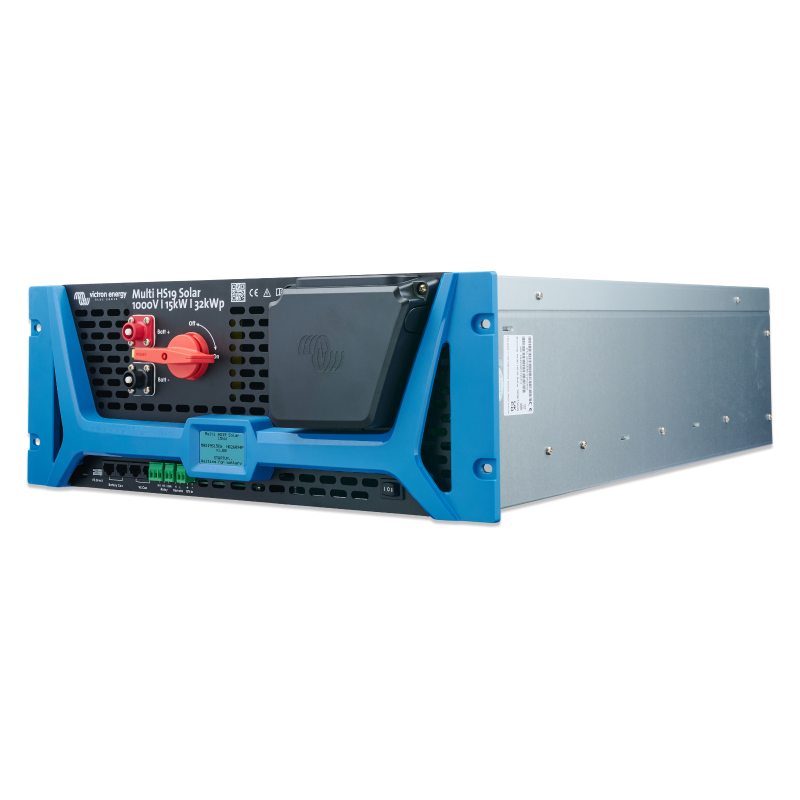

Inverter / Charger Multi HS19 Solar 15kW
The Inverter / Charger Multi HS19 Solar 15kW is a 3-phase, 19-inch rack unit with up to 98% efficiency. Featuring 4 MPPT trackers (up to 32 kW PV) and high-voltage battery support (650-1000V), it is the perfect compact solution for demanding off-grid, ESS, and backup power systems.
- On request
- New
Product details
- Brand
- Victron Energy
- Reference
- PMR803150300
- EAN13
- 8719076058410
- MPN
- PMR803150300
Data Sheet
| Model | Max. AC Input Current | Power | Peak Power | AC Voltage | Bluetooth | VE.Direct | CAN | VE.Can | Programmable Relay | Operating Temperature | Voltage Range | Max. Efficiency | No-Load Power Draw | Humidity | Maximum Altitude | Pollution Degree | Overvoltage Category | DC Connectors | Safety | Electromagnetic Compatibility (EMC) | Cooling | IP Rating | Continuous AC Current per Phase | Number of AC Inputs / Outputs | Maximum Open Circuit Voltage | Number of MPPT Trackers | MPPT Operating Voltage Range | Max. PV Input Power (Total) | Max. Solar Efficiency | Supported Batteries | Parallel Operation | Rack Unit | Depth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Multi HS | 32A | 15000VA | 22000VA (5s) | 400VAC (3-phase) | Yes | Yes | Yes | Yes | Yes (3A / 30VDC) | 0°C ~ 60°C | 650-1000V | 98% | 50W | 95% | 2000 m | PD2 | PV II / AC III | Surlok 5.7mm / MC4 (PV) | EN-IEC 62109-1 EN-IEC 62109-2 | EN-IEC 61000-3-11 EN-IEC 61000-3-12 IEC 61000-6-1 IEC 61000-6-2 IEC 61000-6-4 | Forced Air | IP20 | 22A RMS | 1 Input / 2 Outputs | 600V | 4 | 100-600V | 32kW (Max. 8kW per string) | 99% | Batteries supporting Victron HV Protocol | No | 4U | 70 cm |
Description
Multi HS19 Solar 15kW
High-voltage inverter/charger for large ESS systems
The Multi HS19 Solar 15kW is a groundbreaking, integrated 3-phase device from Victron Energy, designed specifically for high-voltage battery systems (650–1000 V). It combines the functions of a powerful three-phase inverter, battery charger, and advanced solar charge controller with 4 independent MPPT trackers.
By switching to high voltage (HV), these systems require significantly thinner cabling, which drastically reduces transmission losses, material costs, and simplifies and speeds up installation.
The entire system is housed in a compact enclosure designed for mounting in a standard 19-inch rack cabinet.
Key Features
Discover the advantages that make the difference
High Voltage
Supports battery systems with a voltage range of 650 to 1000 V.
Built-in Full 3-Phase
Full three-phase output in a single rack-mount unit.
Up to 98% Efficiency
Fewer losses, more energy available for use.
Integrated Solar Tracking
Four independent MPPT trackers, up to 32 kW of input power.
Why choose the Multi HS19 Solar 15kW?
The Multi HS19 Solar 15k is the ideal solution for anyone seeking uncompromising performance and modern large-scale energy management. It combines high-voltage technology with record-breaking efficiency.

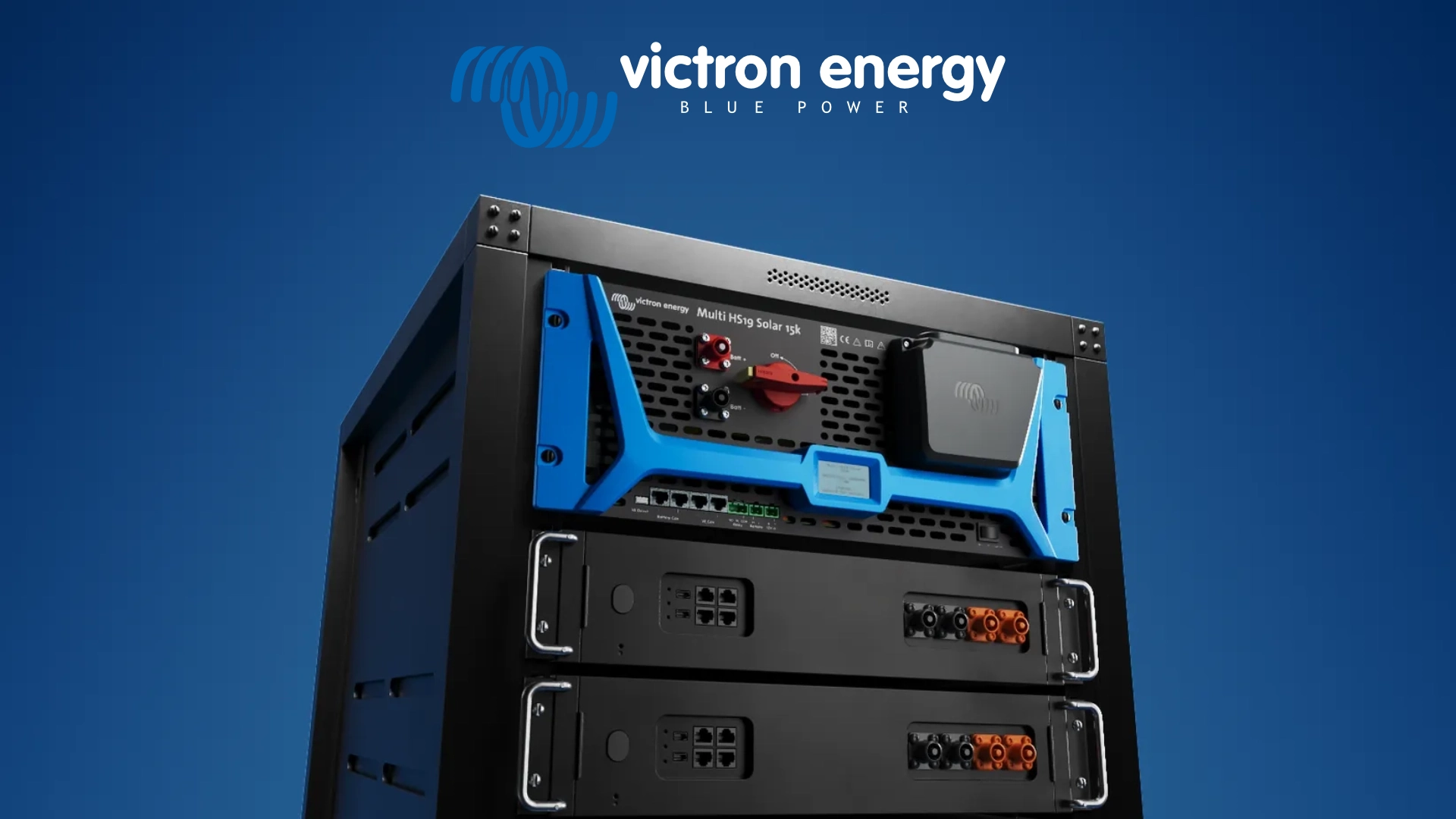

Victron Energy Multi HS19 Solar 15kW
Discover the compact inverter/charger built for large energy storage systems (ESS) and off-grid installations.

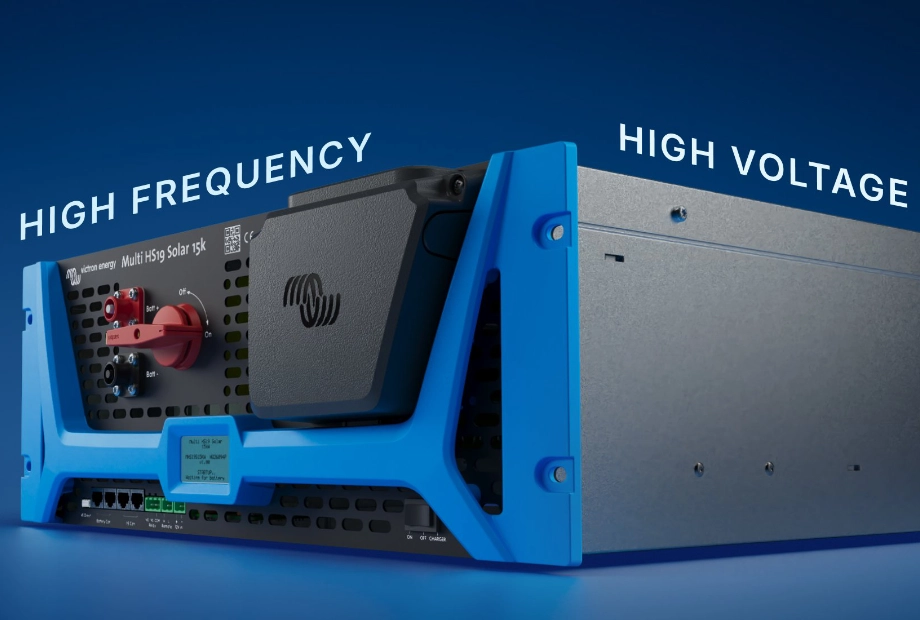

3-phase power and 98% efficiency
Thanks to high-voltage (HV) technology, the Multi HS19 Solar hybrid inverter achieves up to 98% efficiency. This means minimal self-consumption and maximum energy recovery from every kilowatt-hour. The device provides stable, full 3-phase power supply, operates extremely quietly, and weighs just 26.5 kg.

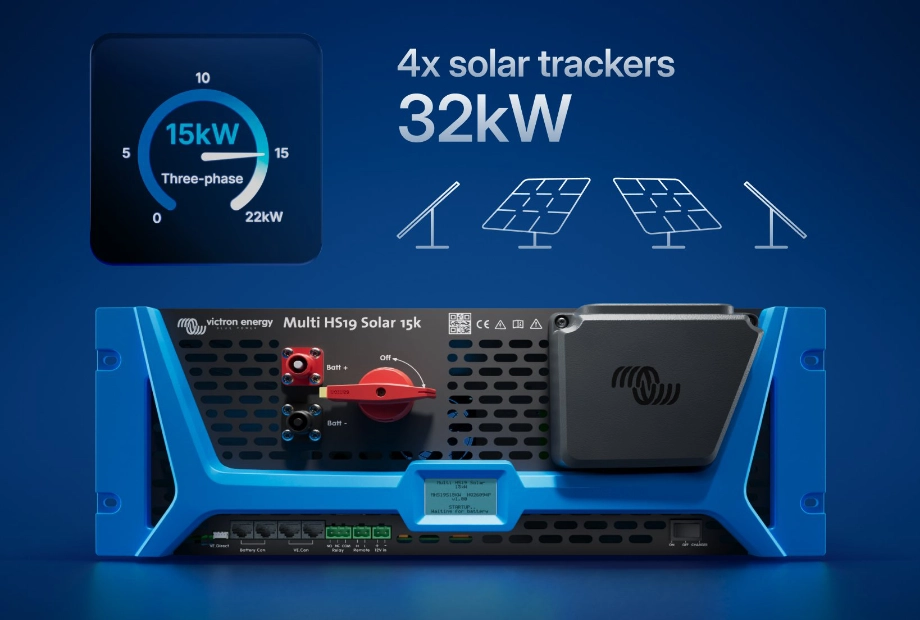

19" Rack Standard
A complete system in a single enclosure – fewer components and less cabling means shorter installation time. Multi HS19 Solar 15k fits perfectly in a standard 19" rack cabinet next to a high-voltage energy storage system. It delivers 15 kW of continuous power and supports up to 32 kWp from solar panels, and its low weight enables single-person installation.
Maximum yield from solar panels
Four independent MPPT trackers with 99% efficiency guarantee maximum yields, eliminating the issues of shading or different roof slope orientations. The high input voltage of up to 600 V per MPPT allows for longer strings, which drastically reduces DC cabling and speeds up panel installation.
Key Functions
Key functions and how they work
Faster and Simpler Installation
By mounting in a standard 19" rack cabinet together with the batteries, the entire system fits in one enclosure, drastically reducing cabling and shortening installation time.
Higher Performance and Savings
Support for high-voltage batteries (650–1000 V) allows the use of thinner, cheaper cables and provides ultra-fast charging at up to 33 kW.
Victron Ecosystem Integration
Built-in Bluetooth and dedicated VE.Can communication ports enable instant configuration in the VictronConnect app and seamless compatibility with batteries.
Remote Management via GX Device
Connecting a GX panel opens access to the free VRM portal, enabling real-time remote monitoring, system automation, and integration with other devices.
Built-in Display
The built-in display provides an instant overview of system operation, while the programmable relay and remote control connector allow easy process automation.
PowerControl and PowerAssist
PowerControl and PowerAssist protect the grid from overloading and automatically supplement power from the batteries when needed, eliminating the need for costly grid connection upgrades.
Victron Ecosystem
The Victron system is designed to give you full control anytime, anywhere.
VictronConnect App
Local configuration and system monitoring of the Multi HS19 Solar directly from your smartphone via Bluetooth.
- Live overview: Monitor yields from 4 MPPT trackers, HV battery status, and inverter parameters.
- Easy configuration: Quickly adjust charging profiles and system operating parameters.
- Fast diagnostics: Analyze the device's operating history directly on-site.
VRM Portal
Full access to the remote management platform after connecting the inverter to a GX device.
- Remote service: Change settings and update firmware without visiting the client's site.
- Advanced analytics: Track energy flows, optimize ESS systems, and control costs.
- Smart alerts: Receive instant notifications about faults and online system status.
Applications
High voltage where you need it.
Energy Storage (ESS)
As the heart of ESS systems, the Multi HS19 Solar enables peak power demand reduction (peak shaving) and full control over self-consumption and energy export in large facilities.
Off-Grid Systems
Guarantees reliable power supply in off-grid installations without grid access, offering simpler system design and seamless compatibility with a generator.
Backup Power
In the event of a grid failure, it instantly sustains critical loads using the capacity of high-voltage batteries for uninterrupted business and home operation.
FAQ
Frequently asked questions
Data sheet
-
ModelMulti HS
-
Max. AC Input Current32A
-
Power15000VA
-
Peak Power22000VA (5s)
-
AC Voltage400VAC (3-phase)
-
BluetoothYes
-
VE.DirectYes
-
CANYes
-
VE.CanYes
-
Programmable RelayYes (3A / 30VDC)
-
Operating Temperature0°C ~ 60°C
-
Voltage Range650-1000V
-
Weight26.5 kg
-
Maximum Discharge Current25A
-
Maximum Charge Current41A
-
Max. Efficiency98%
-
No-Load Power Draw50W
-
Humidity95%
-
Maximum Altitude2000 m
-
Pollution DegreePD2
-
Overvoltage CategoryPV II / AC III
-
DC ConnectorsSurlok 5.7mm / MC4 (PV)
-
SafetyEN-IEC 62109-1
EN-IEC 62109-2 -
Electromagnetic Compatibility (EMC)EN-IEC 61000-3-11
EN-IEC 61000-3-12
IEC 61000-6-1
IEC 61000-6-2
IEC 61000-6-4 -
CoolingForced Air
-
IP RatingIP20
-
Continuous AC Current per Phase22A RMS
-
Number of AC Inputs / Outputs1 Input / 2 Outputs
-
Maximum Open Circuit Voltage600V
-
Number of MPPT Trackers4
-
MPPT Operating Voltage Range100-600V
-
Max. PV Input Power (Total)32kW (Max. 8kW per string)
-
Max. Solar Efficiency99%
-
Supported BatteriesBatteries supporting Victron HV Protocol
-
Parallel OperationNo
-
Rack Unit4U
-
Depth70 cm
