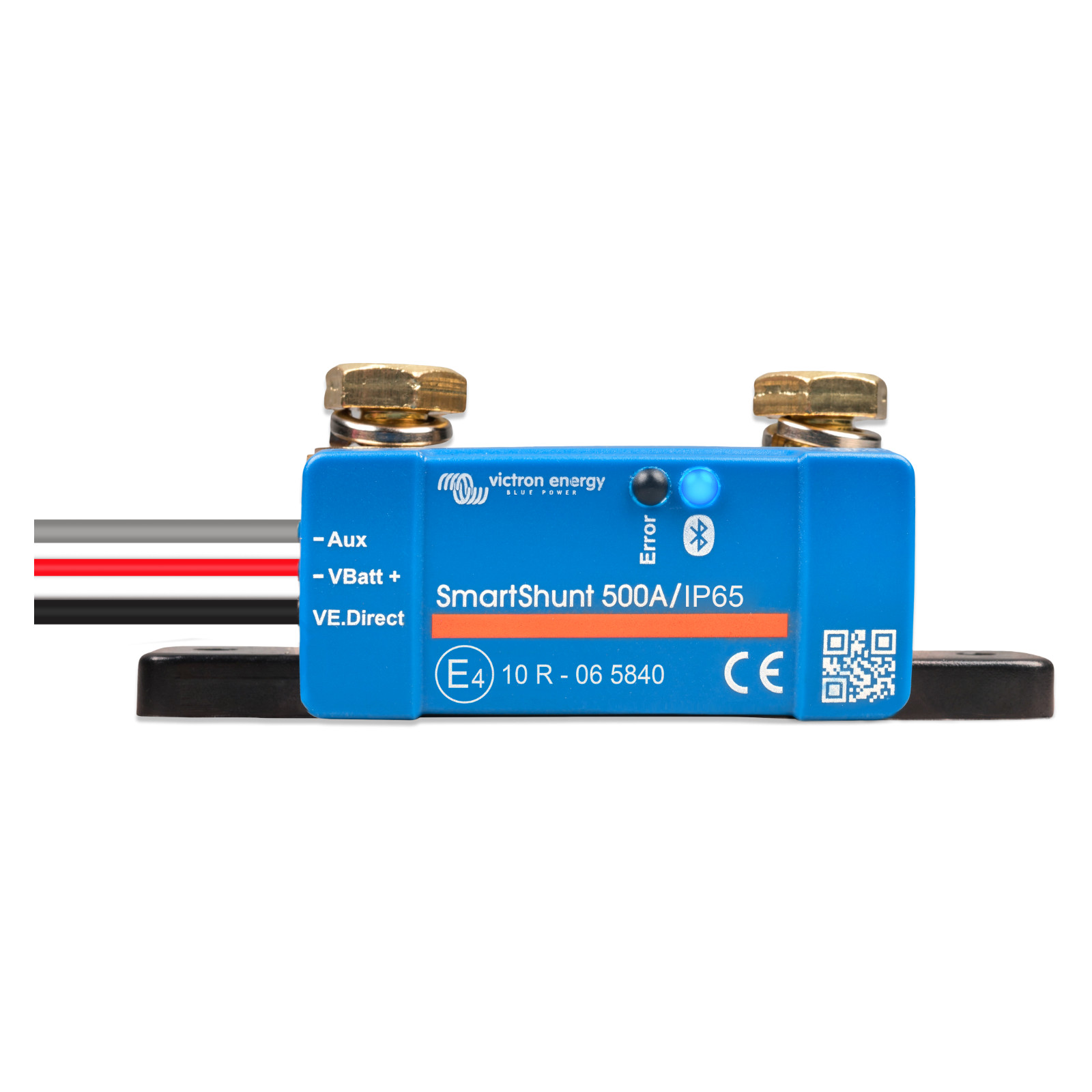

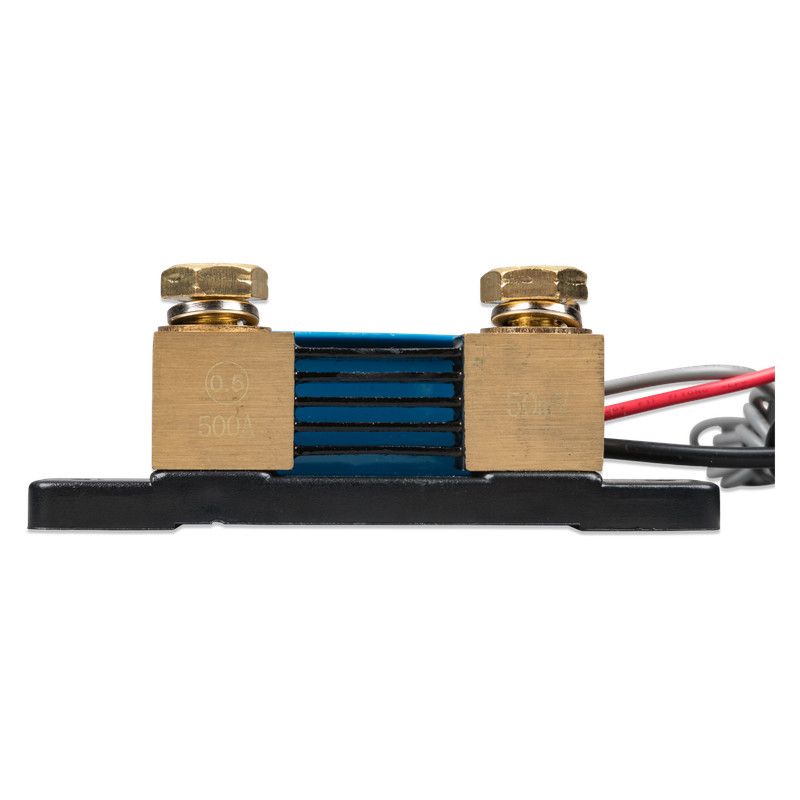

Name: SmartShunt 500A/50mV IP65
Brand: Victron Energy
SKU: SHU065150050
Price: 131.61 EUR
Availability: InStock

Victron SmartShunt 500A IP65 - Waterproof Battery Monitor

€131.61

Tax included

€107.00

netto

Only a few items left

Delivery within 2 business days Last items in stock

Product details

Brand: Victron Energy
Reference: SHU065150050
EAN13: 8719076057895
MPN: SHU065150050

Data Sheet

Bluetooth	Category
Tak	Boczniki Monitory akumulatorów

Description

SmartShunt 500A IP65

Advanced battery monitor

The Victron Energy SmartShunt is a single-piece battery monitor without a display. Your smartphone acts as the display!

SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet), allowing you to conveniently read all monitored battery parameters, such as state of charge, remaining operating time, historical data, and more.

SmartShunt can also be connected to a GX device, where you can also read the data. The connection of the SmartShunt is made using a VE.Direct cable.

Key features

Bluetooth Connection

Get access to live data about performance and load through a wireless connection with the VictronConnect app on your phone or tablet

VE.Direct port

Allows connection to a GX device using a VE.Direct cable and remote monitoring and management of the system through the VRM portal

Additional connector

Allows monitoring of a second battery, intermediate installation point or connection of a temperature sensor for more precise system control

Battery protection

SafetyShield+ function and precise shunt technology help protect the battery and extend its lifespan

Universal application

Precise monitoring of lithium, AGM and liquid electrolyte batteries with configuration options in the VictronConnect app

IP65 water- and dust-resistance

IP65 protection class provides resistance to water and dust, enabling reliable operation in challenging conditions

Why SmartShunt?

SmartShunt is a good alternative to the battery monitor BMV, especially in systems where battery monitoring is necessary, but excessive cable length would create unnecessary clutter.

Wiring diagrams

Examples of different SmartShunt configurations

Basic SmartShunt wiring

Standard connection of the monitor to the battery. This diagram shows the basic configuration of SmartShunt in a single-battery system.

Simple connection to the battery
Minimal number of wires
Ideal for basic applications

Connection to the GX device

Integrating SmartShunt with the Victron GX management system. Allows central monitoring of all system parameters.

Connection with VE.Direct cable
Central monitoring
Advanced system features

Measuring voltage of the starter battery

Configuration enabling monitoring of a second battery in the system, such as a starter battery in a vehicle.

Monitoring of two batteries
Control of the starter battery state
Optimization of charging

Measuring voltage of the starter battery

Measuring battery temperature

Configuration with a temperature sensor enables precise monitoring of thermal conditions of the battery for optimal performance.

Precise temperature measurement
Temperature compensation
Protection against overheating

Measurement the midpoint of the battery bank

Monitoring the battery bank's intermediate point allows for early detection of cell imbalance or damage.

Early detection of battery problems
Control of uniform charging
Extension of battery life

Measuring the midpoint of the battery bank

SmartShunt Applications

Universal solution for various industries

Recreational Vehicles

Provides reliable energy monitoring in campers, vans and trailers

Marine

Ideal for marine installations, offering precise control of the energy system on yachts and boats

Off-grid Systems

Enables detailed monitoring of batteries and DC power measurement in off-grid power systems

VictronConnect App

Your phone acts as a display for SmartShunt. The VictronConnect app enables convenient reading of all battery parameters.

Battery state of charge
Remaining runtime
Historical data
Trends and charts

Differences in comparison with BMV-712 monitor

Limitations of SmartShunt

No alarm

No programmable visual and audible alarm

No relay

No programmable relay

FAQ

Most frequently asked questions

SmartShunt does not have a physical display - it is a shunt that transmits data (SoC, voltage, current) via Bluetooth to the VictronConnect app on your phone. BMV-712 has a traditional, round display mounted on the panel. SmartShunt is a cheaper alternative to hidden installations.

Connect the "Battery Minus" terminal exclusively to the battery's negative terminal. All other negative wires (loads, inverters, chargers) must go to the "System Minus" terminal. Connecting loads directly to the battery will cause the shunt to not detect them.

Yes. The device works with LiFePO4, AGM, Gel and Flooded batteries. In the VictronConnect app, you can either select the appropriate profile or manually set parameters (e.g. Peukert coefficient), which ensures a precise state of charge reading.

Yes. This version of SmartShunt has an IP65 protection class, it's completely waterproof and dustproof. It can be installed in challenging conditions, such as the engine compartment or a humid garage. The standard version has an IP21 class (only for dry indoor use).

SmartShunt has a VE.Direct port. It allows you to connect it to the panel Cerbo GX and other GX devices. Thanks to this, you get access to remote monitoring through the VRM portal and a stable connection where Bluetooth range is weak.

Specifications

SmartShunt IP65 500A (SHU065150050)
Supply voltage range	6,5 - 70 VDC
Current draw	< 1mA
Input voltage range, auxiliary battery	6,5 - 70 VDC
Battery capacity (Ah)	1 - 9999 Ah
Operating temperature range	-40 +50°C
Auxiliary input	Measures voltage of second battery, temperature* or midpoint * Only when optional temperature sensor is connected, temperature sensor is not included
Temperature measurement range	-20 +50 °C
VE.Direct communication port	Yes
RESOLUTION & ACCURACY
Current	± 0,01 A
Voltage	± 0,01 V
Amp hours	± 0,1 Ah
State of charge (0 - 100%)	± 0,1 %
Time-to-go	± 1 min
Temperature (optional temperature sensor connected)	± 1°C (0 – 50 °C)
Accuracy of current measurement	± 0,4 %
Offset	Less than 10 mA
Accuracy of voltage measurement	± 0,3 %
INSTALLATION & DIMENSIONS
Dimensions (h x w x d)	46 x 120 x 54 mm
Shunt connection bolts	M10
Protection category	IP65
STANDARDS
Safety	EN 60335-1, IEC 61010-1
Emission / Immunity	EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive	EN 50498

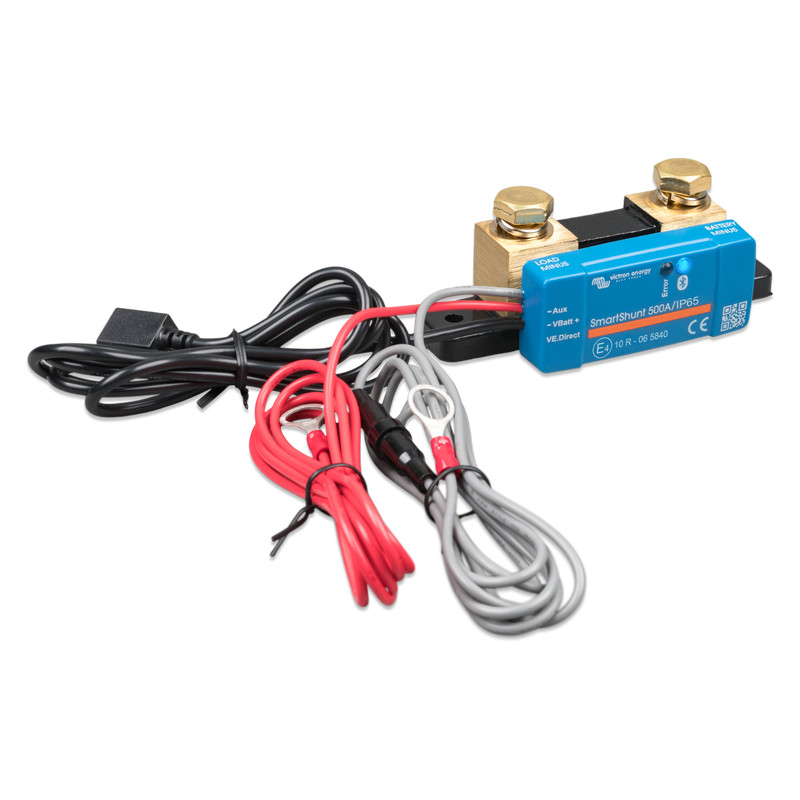

ACCESORIES
Cables (Vbatt & Aux)	1.5m red cable, with 1A slow blow fuse and M10 eye terminal
VE.Direct cable	1.5m black cable, with VE.Direct socket
Temperature sensor	Optional ( ASS000100000 )
A note regarding the range of the Bluetooth signal	The shunt and the electric cables do negatively influence the range of the Bluetooth signal. The resulting range of 10-15 meter is however satisfactory in most cases. The proximity of other electrically conducting elements, such as the metal chassis of a vehicle or seawater around the hull of a boat, may reduce the range of the Bluetooth signal to an unacceptable level. The solution in such a case is to add a VE.Direct Bluetooth Dongle ( ASS030536011 ) to the system, and to switch off Bluetooth in the SmartShunt.
