Energy Storage 5kWh Pytes E-Box 48100R
Chemically advanced LiFePO4 energy storage system with a capacity of 5 kWh, narrower than most available on the market, allows for both vertical and horizontal installation.
Product details
- Brand
- Pytes
- Reference
- 110402100007
Data Sheet
| Capacity (kWh) | Model (Rabat) |
|---|---|
| 5 kWh | E-Box-48100R |
Description
Description
Pytes E-Box 48100R
5kWh energy storage for photovoltaic systems
Optimize your photovoltaic installation with a reliable energy storage system

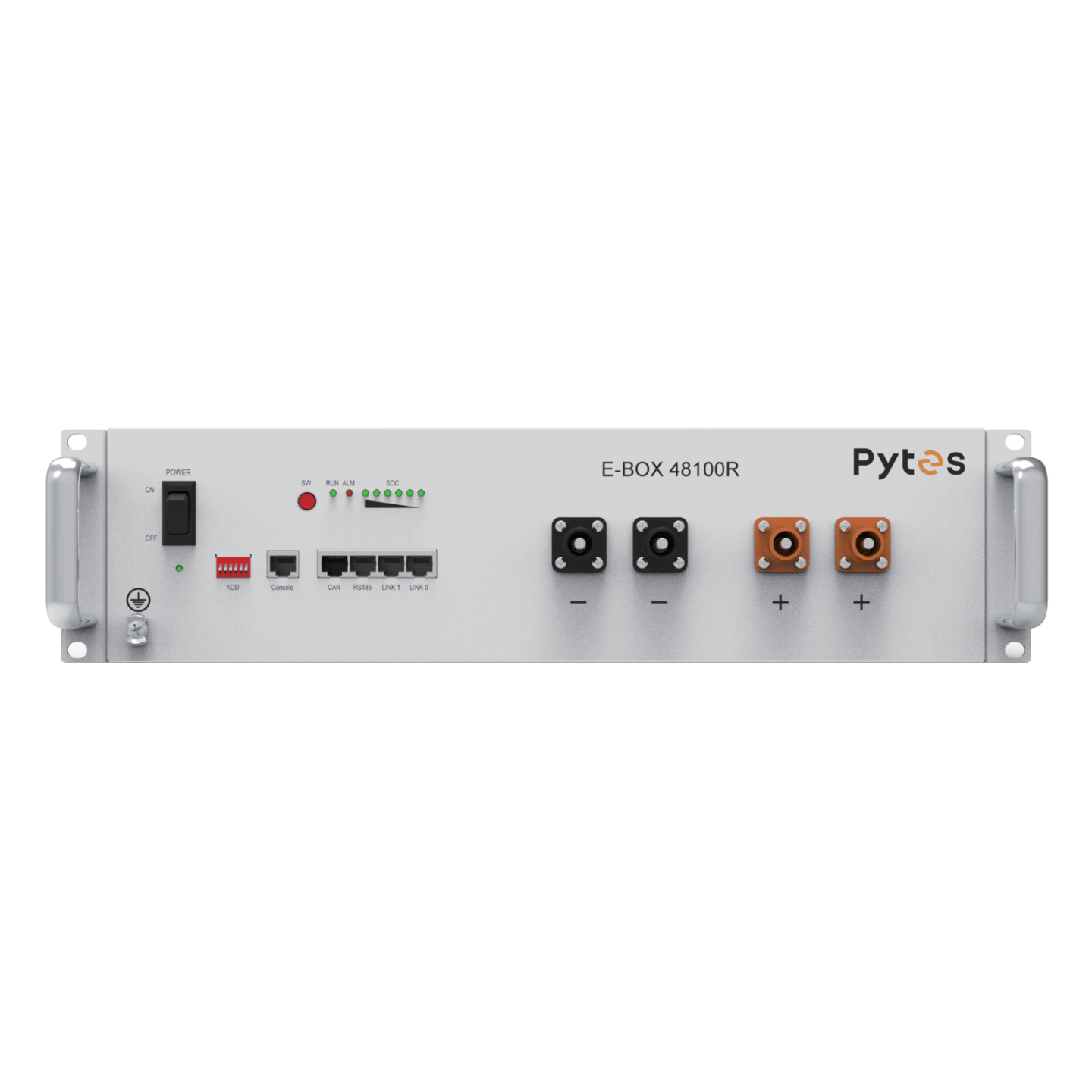

Meet Pytes E-Box 48100R
The Pytes E-Box 48100R is a highly regarded LiFePO4 energy storage system (51.2V 100Ah) energy storage device, used in installations around the world. This model combines high energy density with automotive-grade cell safety, all in a compact 19" RACK standard (2.6U).
This is a solution dedicated to scalable home systems, as well as stable emergency power supply or off-grid installations. Thanks to a lifespan of over 6000 cycles (at 90% DOD), the E-Box 48100R provides a guarantee of long-term and maintenance-free operation.
Energy Storage PYTES for your photovoltaic installation
Increase your home's energy self-sufficiency and optimize the use of energy from photovoltaic panels
Safe and Reliable
- Tier 1 Automotive Grade A Prismatic LiFePO4 Cells
- Self-developed BMS (Dual Active MCU Protection)
- Ideal solution for 5kW photovoltaic installations
Long-lasting and Efficient
- ≥6000 cycles at 90% DOD, maintaining 80% capacity at 25℃
- >95% efficiency of the charge-discharge cycle
- 10 years warranty, up to 20 years designed lifespan
- Optimal use of energy from photovoltaic panels
Certifications
- Product certified for use with photovoltaic systems
- UL9540 Ed.2 UL1973 UL9540A CEC
- SGIP CE IEC62619 UN38.3
Wide Compatibility
- Compatible with most inverter brands on the market
- Ideal for existing and new photovoltaic installations
- Works with popular hybrid inverter brands
Compact and Flexible
- Slimmer than most 5kWh server rack batteries
- Can be installed vertically and horizontally
- Dimensions: 440 x 620 x 117 mm (2.6U)
- Wall mount, floor-stand or server rack mount
Applications in Photovoltaics
- Storage of excess energy from photovoltaic panels
- Power supply at night and during cloudy weather
- Protection against power outages
- Optimization of own energy consumption from photovoltaics

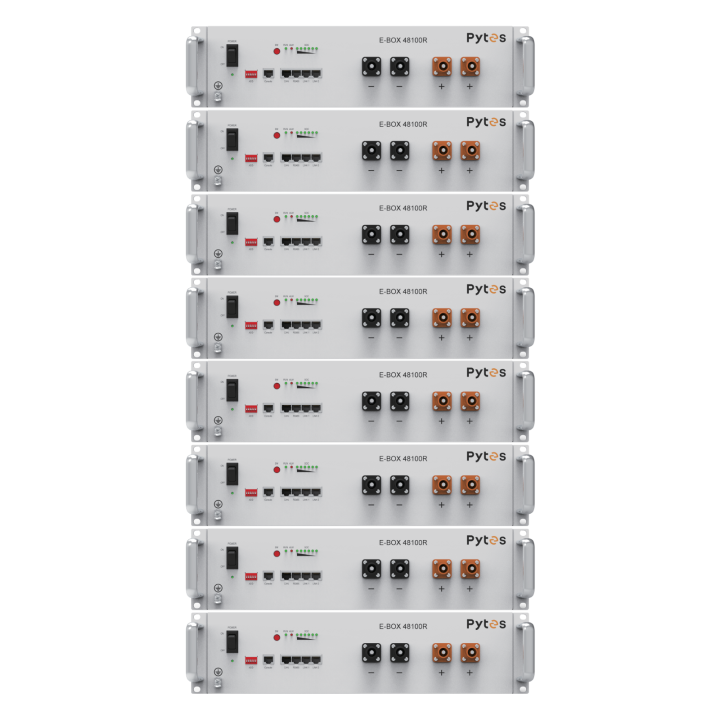

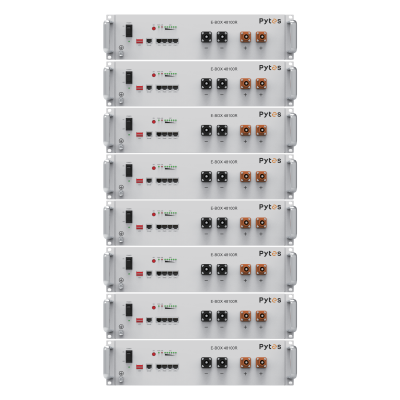

Scalable Capacity
- Scalable up to 286.72 kWh
- Possibility of connecting up to 56 units in parallel
- Possibility of adapting to any photovoltaic installation
- Easy expansion in the future
Benefits for Photovoltaic Systems
- Increase of self-sufficiency of the house
- Reduction of electricity costs
- Protection against rising energy prices
- Optimal return on investment in photovoltaics
Specifications
Energy Storage 5kWh Pytes E-Box 48100R |
|
|
Nominal Voltage |
51,2 V |
|
Voltage Range |
47,5 V ~ 57,6 V |
|
Nominal Capacity |
100Ah |
|
Nominal Energy |
5,12 kWh |
|
Recommended Charge/Discharge Current |
50A (2.56kW DC) |
|
Maximum Charge/Discharge Current |
50A (2.56kW DC) |
|
Peak Discharge Current |
102A (5.22kW@15s) |
General |
|
|
Chemistry |
LFP |
|
Communication Protocol |
CAN/RS485 |
|
Dimensions (L x W x H) |
620 × 440 × 117mm (2,6U) |
|
Weight |
51 kg / 112,5 lbs |
|
Ambient Temperature |
-10°C~50°C / 14°F~122°F |
|
Round-Trip Efficiency |
≥95% |
|
Cycle Life (1) |
≥6000 cycles |
|
Warranty |
10 years |
|
Certifications |
UL9540 Ed.2 (2020), UL9540A, UL1973, CEC, SGIP, CE, IEC62619, UN38.3 |
|
1) Test Condition 0.5C, 25°C @90%DOD |
|
