Name: Liquid Level Sensor - SAE-5-Hole Pattern - 275 mm - Wema S5-E275
Brand: Wema
SKU: 323105
Price: 65.09 EUR
Availability: InStock

Liquid level sensor 275 mm 0-190 om Wema S5-E275

€65.09

Tax included

€52.92

netto

Only a few items left

Delivery within 2 business days Last items in stock

Product details

Brand: Wema
Reference: 323105
EAN13: 7025923231051
MPN: 323105

Data Sheet

Category	Voltage	NMEA2000	Range	Fitting	Sensor Length (mm)
Liquid Level Sensors	12V 24V	No	0-190 Ohm	SAE-5-Hole Pattern	275

Description

Liquid Level Sensor - SAE-5-Hole Pattern - Wema S5-E

Professional solution for precise liquid level measurement

Working Range

0–190 Ohm (EU Standard)

Operating Temperature

-40°C to +85°C

Power Supply

12 / 24 V

Mounting

SAE-5-Hole Pattern

IP Rating

IP65

Material

316 Stainless Steel

Key Features

Durable & Reliable Construction

Designed for long-term performance, the S5 Sender combines precision engineering with premium materials to ensure accurate tank level monitoring in demanding environments.

AISI 316 stainless steel body
Single external moving float
Sealed, water-resistant cable entry

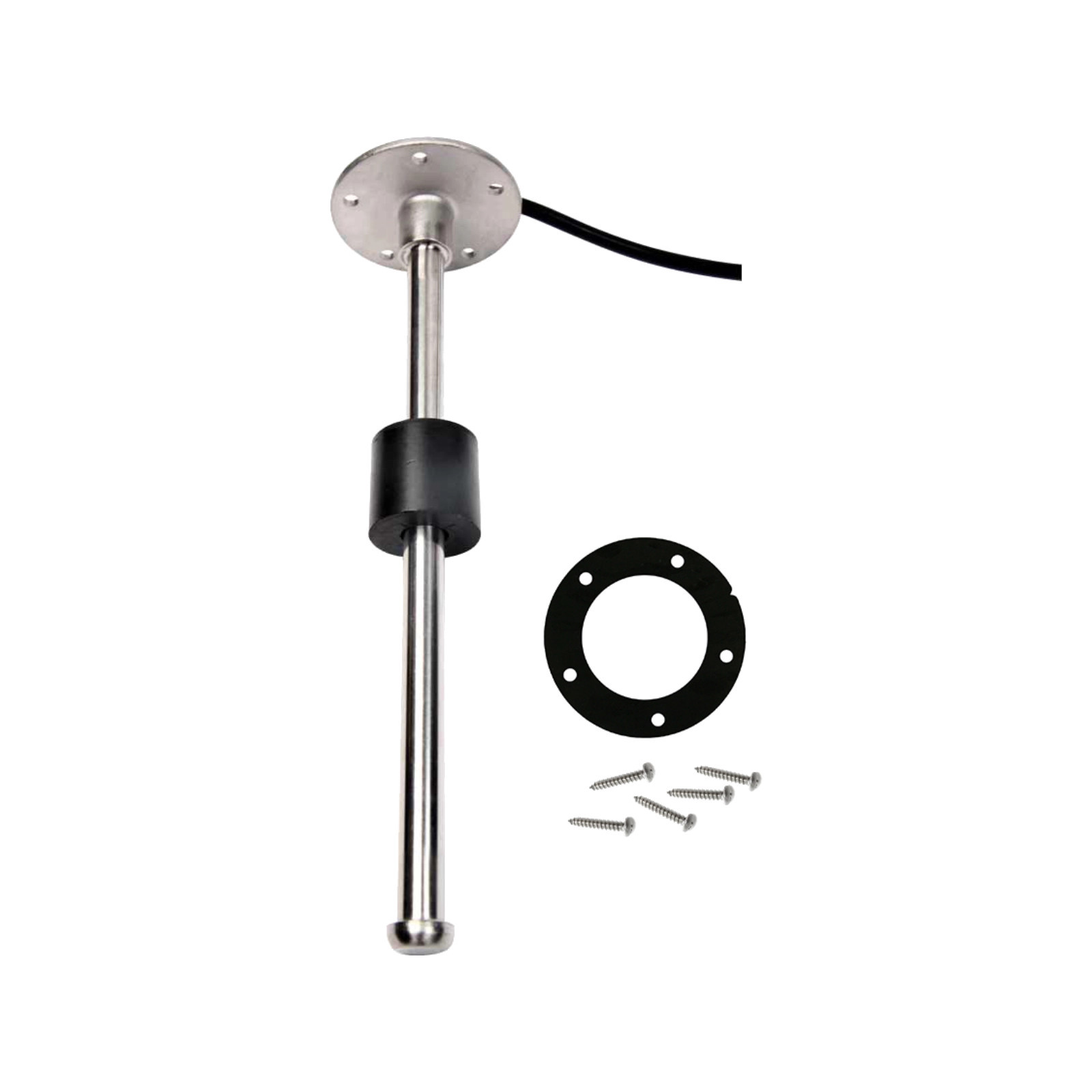

Close up view of Wema S5-E Liquid Level Sensor

Versatile Performance & Compatibility

Engineered for flexibility, the S5 Sender is suitable for various fuel and water applications and designed to integrate seamlessly with matching gauges.

Suitable for diesel, petrol, oil, potable and grey water
Compatible with 0–190 Ohm gauges
Works in boats, trucks, RVs

Specifications

Wema S5-E275 Liquid Level Sensor 275 mm
Sensor length	275 mm
Working range	0-190 ohm
Operating temperature	-40°C do 70°C
Voltage	12 / 24 V
Mounting type	SAE-5-Hole Pattern
Hole diameter	40 mm
External diameter of the sensor head	69 mm
Height above the tank	21 mm
