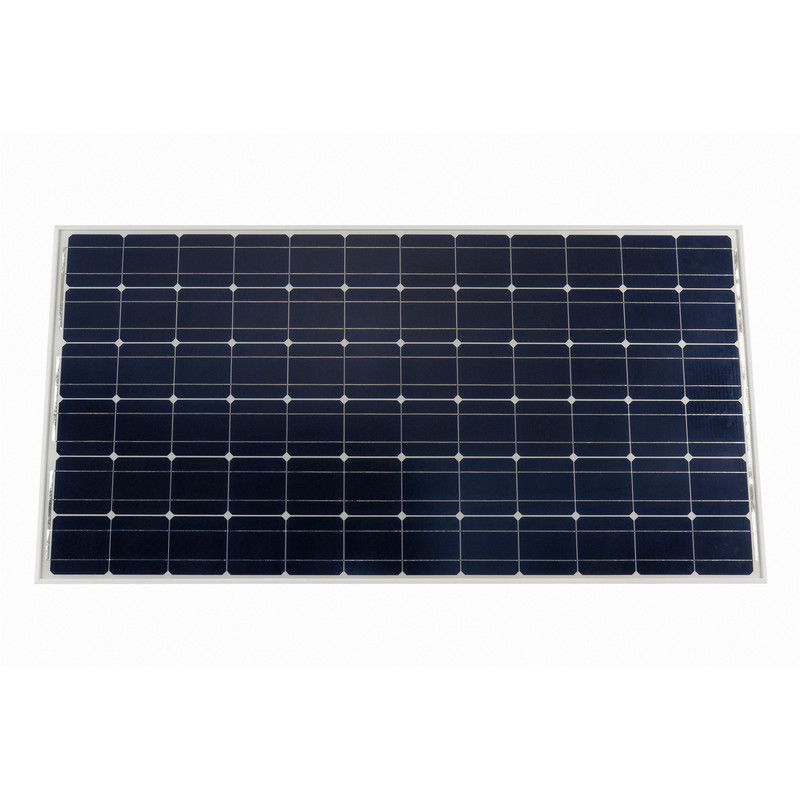

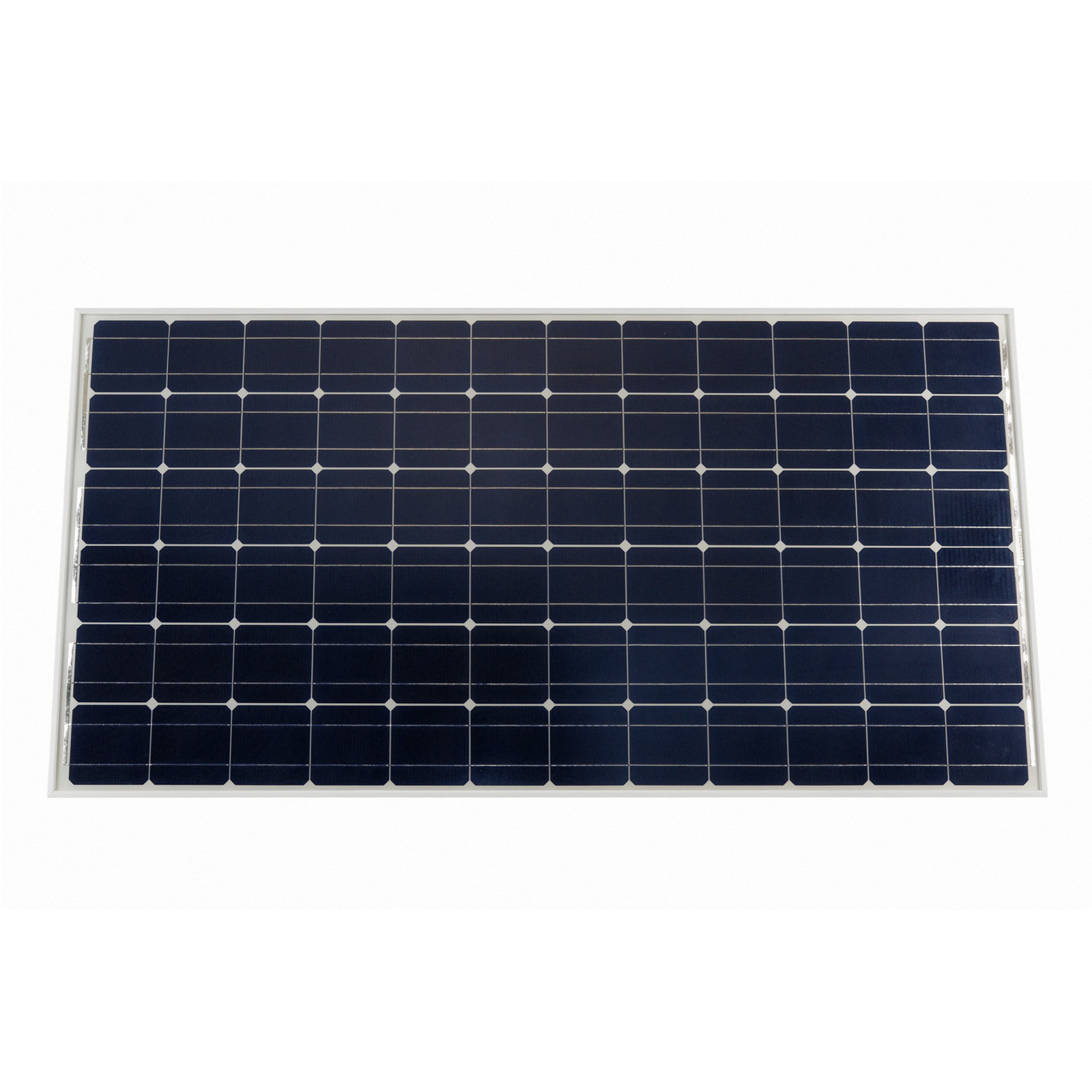

Solar Panel BlueSolar 90W-12V Mono 780x668×30mm series 4a
Monocrystalline BlueSolar photovoltaic panels are made of a single silicon crystal, which ensures high efficiency in converting sunlight into electricity. They are highly sensitive across their entire surface, ensuring high performance even in low light conditions.
The price below applies to one unit of the product.
Product details
- Brand
- Victron Energy
- Reference
- SPM040901200
- EAN13
- 8719076040347
- MPN
- SPM040901200
Data Sheet
| Category | Panel type | Moc |
|---|---|---|
| Panele fotowoltaiczne | Monokrystaliczny | 90W |
Description
Description
Solar Panel BlueSolar 90W-12V Mono
Reliable solar solutions for every installation
BlueSolar photovoltaic panels have been designed for maximum efficiency and reliability even in the most demanding weather conditions. A wide selection of monocrystalline and polycrystalline models with power ratings from 20W to 360W allows the modules to be perfectly matched to the specific requirements of each power supply installation.
Exceptional sensitivity to light across the entire solar spectrum guarantees high energy production even when the sky is overcast or the angle of incidence is low.
This is the proven foundation of every professional photovoltaic system bearing the Victron Energy brand.
Key Features
Discover the advantages that make the difference
Performance in all conditions
Low voltage-temperature coefficient ensures exceptional operating efficiency even at high temperatures. Additionally, high light sensitivity across the entire panel surface enables effective operation in low sunlight conditions.
Highest quality construction
Advanced EVA (ethylene-vinyl acetate) encapsulation system with a three-layer back surface meets the strictest safety requirements. High-transmittance tempered glass provides rigidity and resistance to mechanical damage.
Safety and reliability
Waterproof, multi-functional junction box guarantees a high level of safety. High-efficiency bypass diodes protect against the effects of reverse currents in case of partial module shading.
Extended warranty
- 25 years warranty on performance and proper functioning
- 5 years warranty on materials and workmanship
- Performance warranty: 10 years 90% + 25 years 80% of output power
Each panel undergoes rigorous quality control, ensuring long-term reliability and stable operating parameters throughout its entire service life.
Versatile mounting possibilities
Charge solar energy the smart way with top-level engineering
Ground mount
When selecting the height of the mounting system, ensure the lower edge of the module is not covered by snow for extended periods in areas with heavy snowfall. Additionally, the lowest part of the module should be positioned high enough to avoid shading from plants or trees and damage from sand and stones carried by wind.
Roof Mount
When installing a module on a roof, ensure secure mounting that will withstand wind and snow loads. For optimal cooling, adequate ventilation beneath the module is necessary (minimum 10 cm air space between the module and the mounting surface). Any roof penetrations required for installation must be properly sealed to prevent leakage.
The modules have a Class C fire rating and are suitable for installation on Class A roofs. Do not install modules during strong winds to avoid accidents.
Pole mount
When installing a module on a pole, select a pole and mounting structure that will withstand the anticipated wind loads for the area. The structure must ensure module stability in all weather conditions.
Additional mounting points for increased loads
Modules must be securely fastened to the mounting structure using four mounting points in a standard installation. If additional wind or snow loads are anticipated, it is recommended to use additional mounting points, as shown in the attached drawing.
Load calculations are the responsibility of system designers or installers.
Technical details
BlueSolar photovoltaic panels from Victron Energy harness the full potential of the sun
Panel construction
- Durable anodized aluminum frame allowing easy installation
- Highest quality tempered glass with high light transmittance
- Advanced EVA construction with three-layer back surface
- Resistance to weather conditions and UV radiation
- High resistance to mechanical loads
Electrical system
- Ready-to-use electrical wiring system with PV-ST01 connectors
- High-efficiency bypass diodes protecting against reverse currents
- Waterproof junction box with high safety rating
- Certified MC4 connectors in most models
- Compliance with international safety standards for high-voltage installations
Why choose Victron Energy solar panels?
Victron Energy photovoltaic panels are the ideal choice for both autonomous and grid-connected installations. With a wide range of available models with various power outputs, you will find a solution perfectly tailored to your energy needs.
FAQ
Frequently asked questions
Specifications
Solar Panel BlueSolar 90W-12V Mono 780×668×30mm series 4a (SPM040901200) |
|
| Cell type | Monocrystalline |
| Nominal Power (PMPP) | 90W |
| Output tolerance | ±3% |
| Voltage (V) | 12V |
| Dimensions | 780 × 668 × 30 mm |
| Net Weight | 6.1 kg |
| Max-Power Voltage (VMPP)) | 19.6V |
| Max-Power Current (IMPP) | 4.59A |
| Open-Circuit Voltage (VOC) | 24.06V |
| Short-Circuit Current (ISC) | 5.03A |
| Number of cells in series | 36 |
| Maximum system voltage | 1000V |
| Temperature coefficient of MPP | -0.45%/°C |
| Temperature coefficient of Voc | -0.35%/°C |
| Temperature coefficient of Isc | +0.04%/°C |
| Temperature Range | -40°C to +85°C |
| Surface Maximum Load Capacity | 200 kg/m² |
| Allowable Hail Load | 23 m/s, 7.53 g |
| Junction Box Type | PV-LH0808-1 |
| Length of Cables | 900 mm / MC4 |
| Frame | Aluminium |
| Product warranty | 5 years |
| Warranty on electrical performance | 10 years 90% + 25 years 80% of power output |
