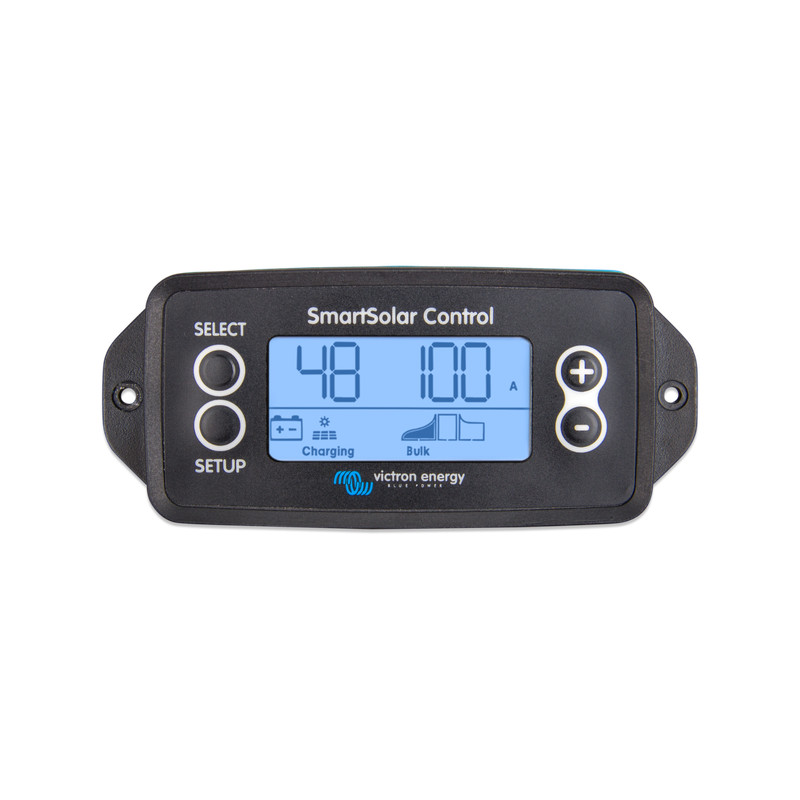

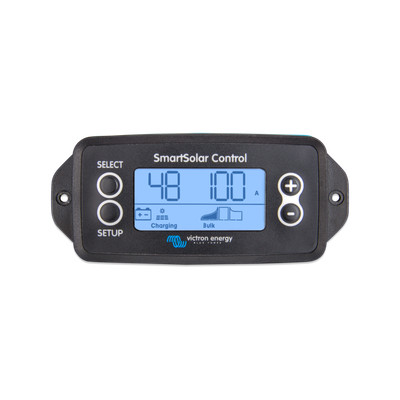

SmartSolar Control Pluggable Display
The SmartSolar Control Display is a pluggable LCD display for the SmartSolar Charge Controllers. It allows real-time viewing of PV system operating parameters.
Product details
- Brand
- Victron Energy
- Reference
- SCC900650010
- EAN13
- 8719076043546
- MPN
- SCC900650010
Data Sheet
| Bluetooth | Category | Rodzaj |
|---|---|---|
| Tak | Displays and Panels | MPPT |
Description
Description
SmartSolar Control
Optional LCD display for SmartSolar charge controllers
The SmartSolar Control display is a dedicated accessory mounted directly on the controller, which allows instant reading of key system data without the need for a smartphone. The device the power of the panels, the charging current, and the battery voltage in real time, providing the user with full transparency of the installation's operation.
The display connects directly to the front panel of the controller. It can function as a permanent or temporary display. Simply remove the plastic cover that protects the display connector on the front of the controller and then connect the display.
The intuitive interface with buttons allows for quick configuration of parameters and easy diagnosis of possible errors directly on the controller housing.
Key Features
Discover the advantages that make a difference
Quick installation
The display allows for instant connection to SmartSolar regulators, providing immediate access to all system readings.
Real-time monitoring
Provides real-time insight into key operating parameters, including voltage, current, and current battery charge status.
Intuitive interface
The clear layout of options and simple navigation make configuration and daily management of the system extremely convenient.
Why choose SmartSolar Control?
This is an indispensable solution for those who value physical access to information and reliable system monitoring in all conditions.
SmartSolar Control display
The SmartSolar Control display is a dedicated display for the following series of MPPT solar chargers:
- SmartSolar MPPT 150/45 up to 250/100
- SmartSolar MPPT 150/70 up to 250/100 VE.Can
- BlueSolar MPPT 150/70 up to 250/100 VE.Can
These solar chargers can also be recognised by a small plastic cover on the front face with the text "display option".
Example of a solar charger without display and with display
Monitor data in real time
Examples of live and historic monitoring:
- PV power, yield, voltage and current
- Battery voltage, current and charge stage
- Load output state and current*
- 30-day historical values
- Cumulative historic values over the live of the solar charger
*Only available if the solar charger is equipped with a load output.
Specifications
SmartSolar Control |
|
|

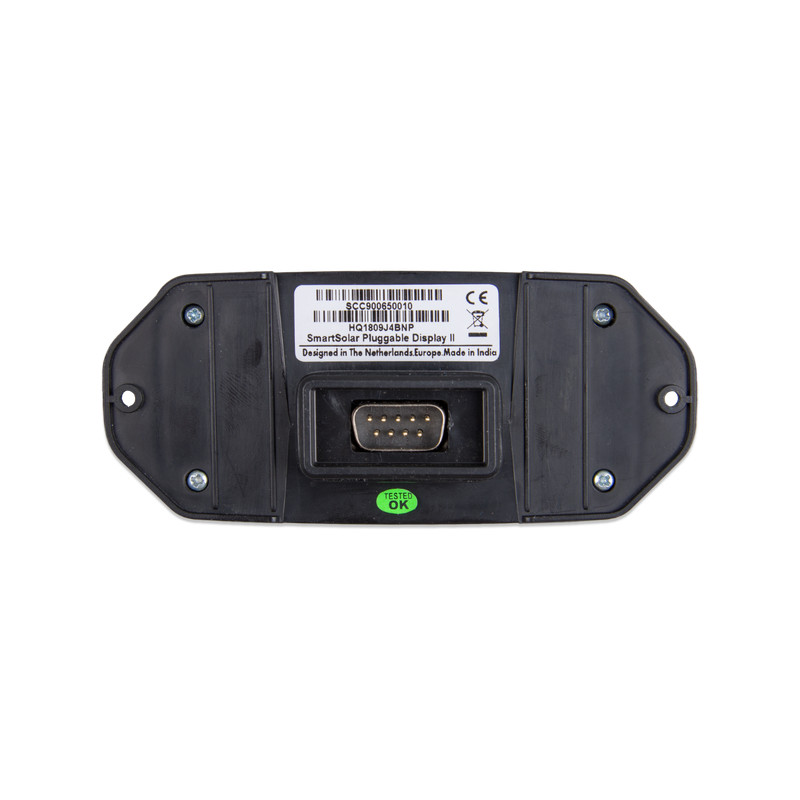

Display port connector |
RS232 9 pin pinout |
|
Dimensions (w x l x h) |
116 mm x 50 mm x 25 mm |
|
Weight |
66 g |
Data sheet
-
BluetoothTak
-
CategoryDisplays and Panels
-
RodzajMPPT
