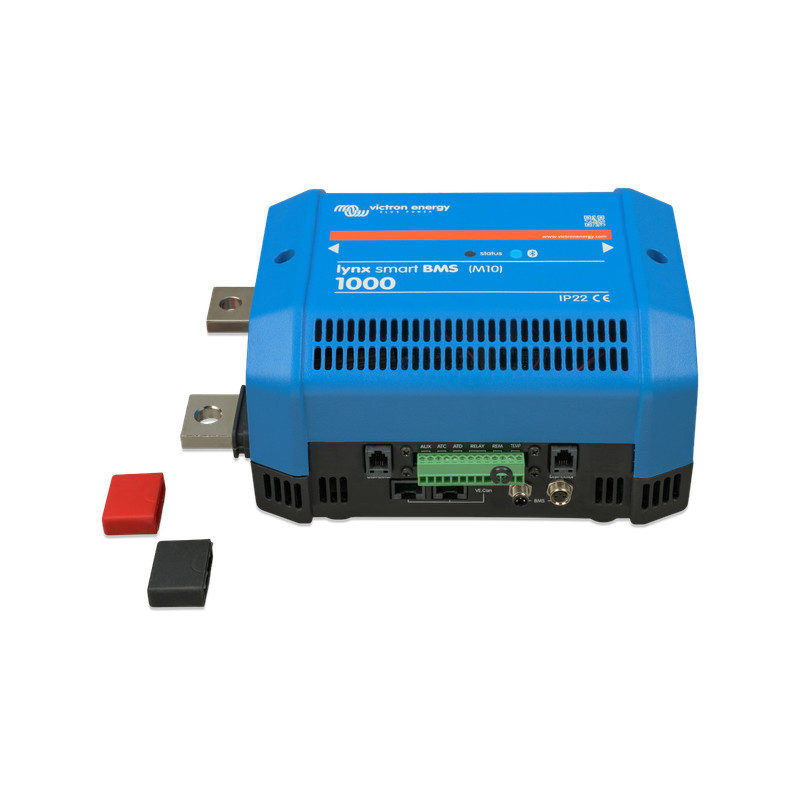

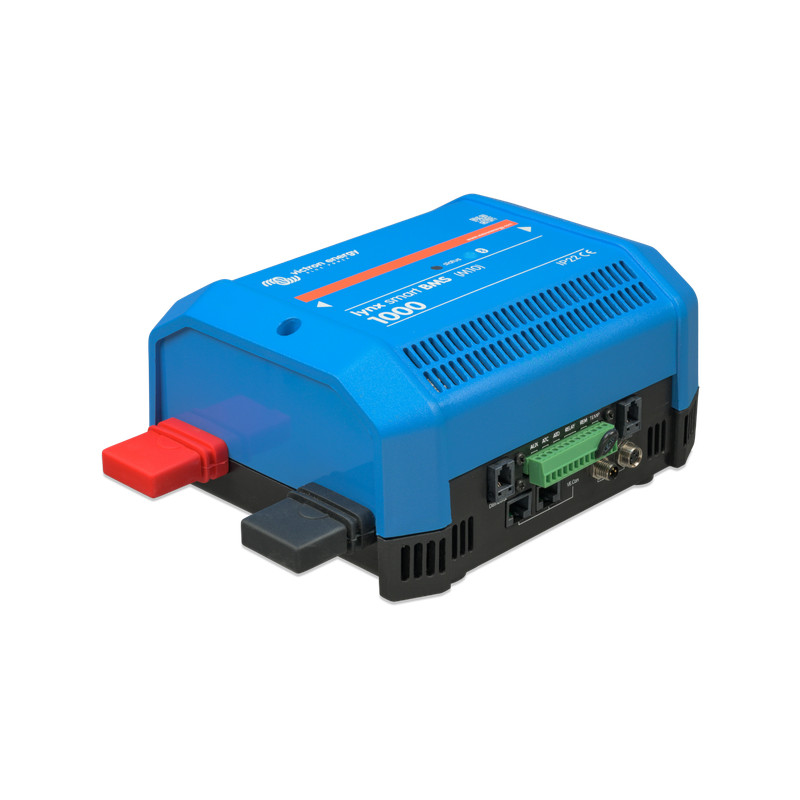

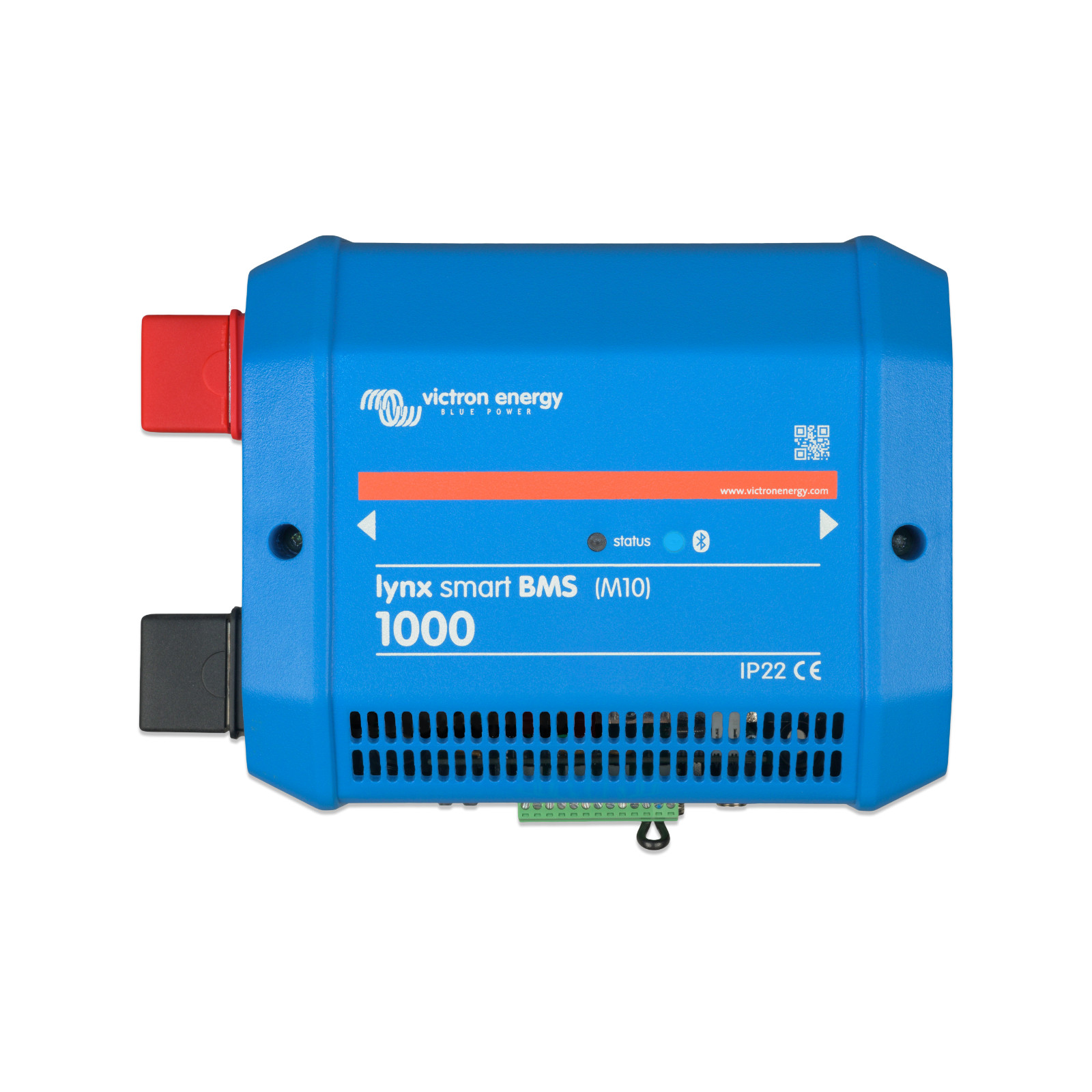

Battery Monitor Lynx Smart BMS 1000 (M10)

Built-in 1000A contactor

The Lynx Smart BMS features a built-in 1000A contactor that acts as an additional safety system, protecting the batteries in the event that the main controllers fail to switch off loads or chargers at the right time. This contactor can also act as a remote-controlled main switch for the system.

Pre-charge circuit

This system has a built-in pre-charge circuit, eliminating the risk of high inrush currents when connecting capacitive loads such as MultiPlus/Quattro inverters or others, thus eliminating the need for external pre-charging.

Monitoring and control

Monitoring and control of the BMS system is done via Bluetooth using the VictronConnect app or GX devices such as Cerbo GX, with access to the VRM Portal platform. The built-in battery monitor provides real-time information on charge status, voltage, current, historical data and other relevant parameters.

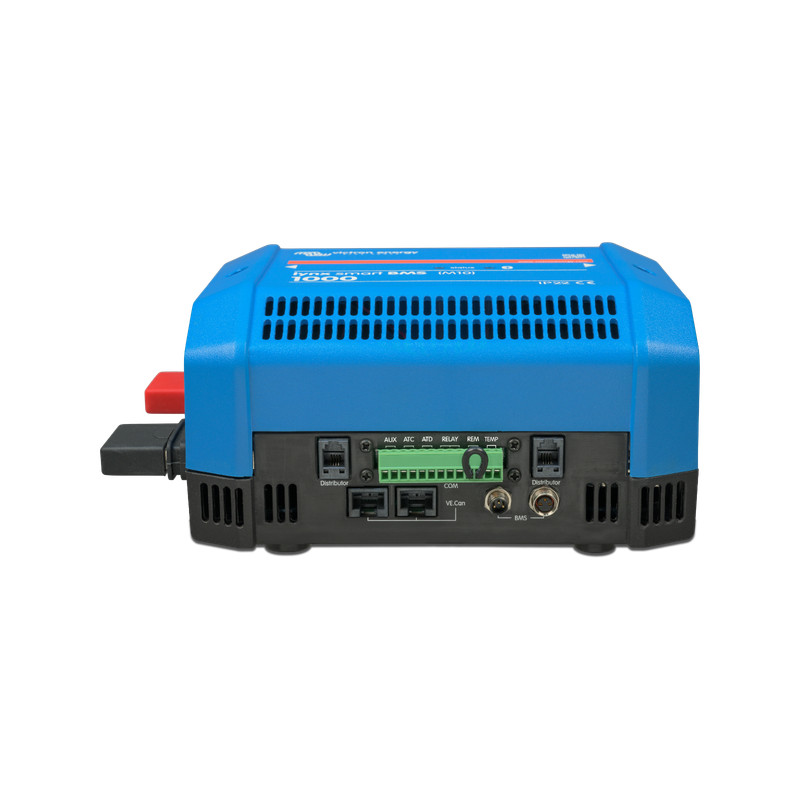

Programmable relay
& AUX terminal

Lynx Smart BMS offers the possibility to program a relay that can act as an alarm or control the alternator via an external regulator. It operates in ATC mode, activating only when the contactor is closed, ensuring safe energy management.

The built-in AUX connector provides auxiliary power in the event of low cell voltage, allowing power to be maintained for devices such as GX devices after the BMS system has switched off the loads.
