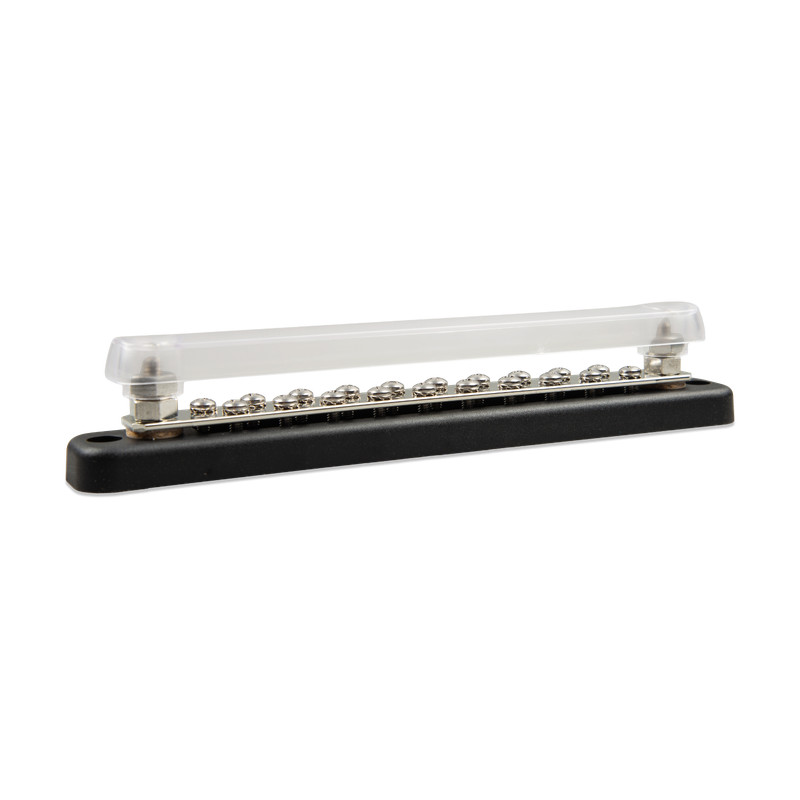

Busbar 150A 2P with 20 screws + cover
The 150A busbar from Victron Energy is used to distribute high-current electricity while providing a connection for batteries and DC devices. The busbar has 2 high-current terminals (for the main system cables) and 20 low-current connections that enable safe and orderly connection of smaller consumers directly to the main busbar.
Product details
- Brand
- Victron Energy
- Reference
- VBB115022020
- EAN13
- 8719076056379
- MPN
- VBB115022020
Data Sheet
| Category | Maximum Current |
|---|---|
| Busbary | 150A |
Description
Description
Busbar 150A 2P
DC Busbar with 20 screws and a cover
Victron Energy Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.
They ensure stable and orderly energy distribution in DC installations, even under heavy loads. Their robust design reduces losses and increases the reliability of the entire system.
The ideal solution for off-grid systems, solar installations and emergency power supply. Proven in professional applications and everyday use.
Key Features
Discover the advantages that make a difference
Maximum current 150A
Provides adequate power for a wide range of applications.
Easy installation
Allows for quick and easy integration into existing electrical installations.
Safety
Provides secure electrical connections, minimising the risk of short circuits and failures.
Why choose Victron Energy?
Victron Energy is a proven brand with a global reputation and many years of experience. It offers reliable energy systems that operate stably even in demanding conditions.
Victron Energy Busbars
Busbars are an integral item in many electrical installations. Victron Energy now sells a range of bus bars to suit different currents. 150, 250 and 600 amp versions, all with protective lids and strong reliable connections.
Main Functions
Main functions and how they work
150A / 70V - 2 high current connections and 20 low current connections
Busbar dedicated to distributing high current from the battery.
Aesthetics, comfort and safety
Instead of connecting multiple cables to a single fuse or battery, it is much easier to connect the battery to a distributor and then connect individual receivers to it. This method of connection ensures aesthetics and convenience, and most importantly, connection safety.
Specifications
Busbar 150A 2P with 20 screws + cover (VBB115022020) |
|
|
Max. current |
150A |
|
Max. Voltage |
70V DC |
|
Terminal diameter |
1/4" / 6,35 mm |
|
Terminal height |
0,67" / 17 mm |
|
Terminal material |
Stainless steel |
|
Hex nut material |
Tin-plated copper |
|
Recommended torque |
60 lbf·inch / 7 N·m |
|
Terminal screws |
8-32 / 4,2 mm |
|
Busbar strip material |
Tin-plated copper (2,4 x 19 mm) |
|
Base material |
ABS, black, UL94 V-0 |
|
Cover material |
Clear Polycarbonate, UL 94 HB |
|
Weight |
2,2 lb / 1 kg |
|
Dimensions (with cover) |
1.8 x 9.1 x 1.25"
|
