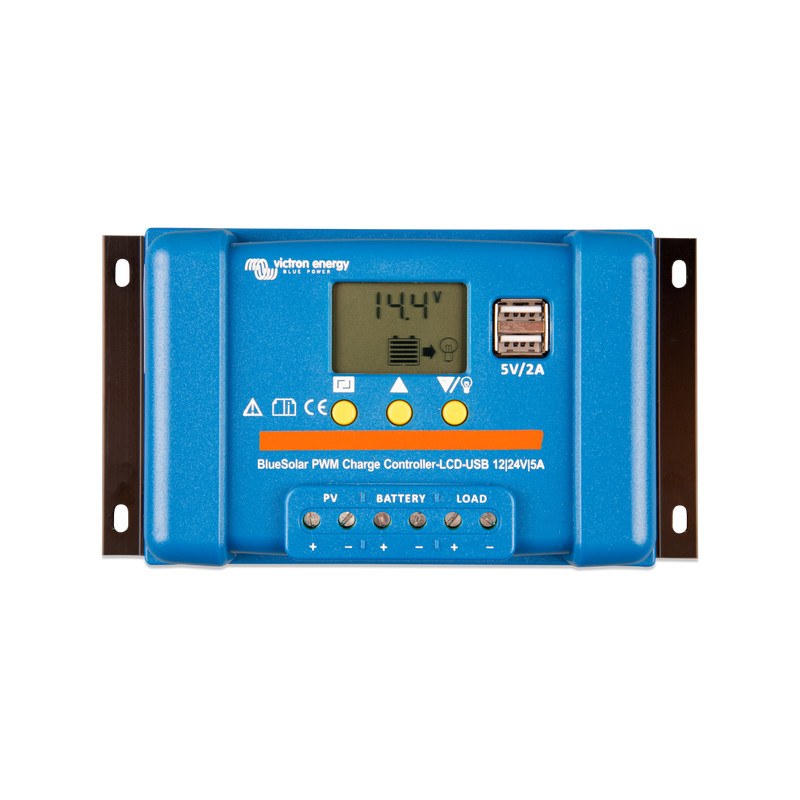

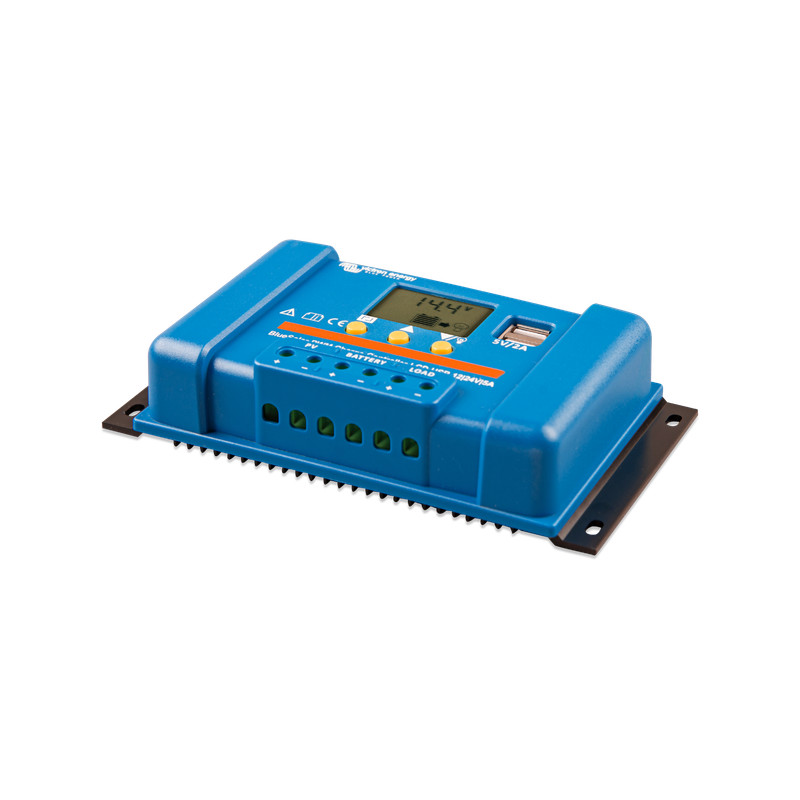

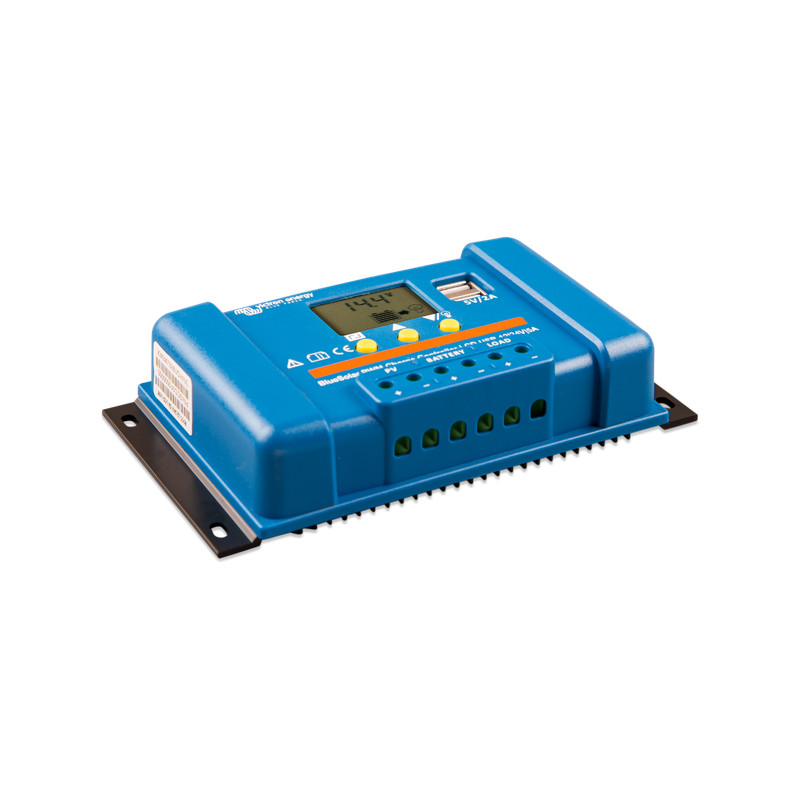

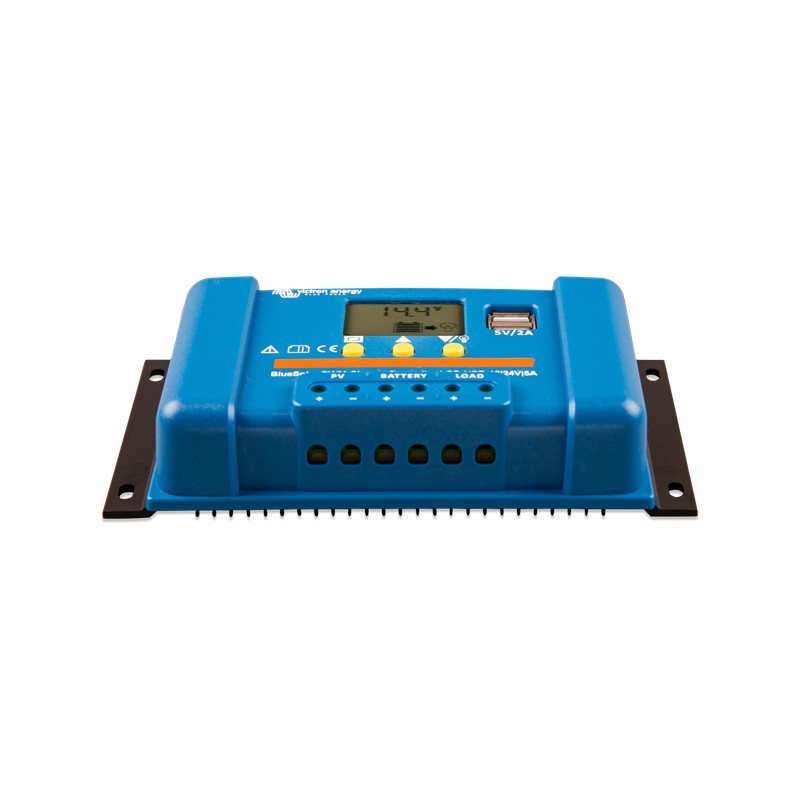

Charge Controller BlueSolar PWM-LCD&USB 12/24V-5A
The BlueSolar PWM-LCD&USB charge controller with automatically selectable 12V or 24V voltage and 5A current, with an LCD panel and two 5V 2A USB outputs.
Product details
- Brand
- Victron Energy
- Reference
- SCC010005050
- EAN13
- 8719076046172
- MPN
- SCC010005050
Data Sheet
| Bluetooth | Charge Current | Category | Rodzaj |
|---|---|---|---|
| Nie | 5A | Regulatory ładowania | PWM |
Description
Description
BlueSolar PWM-LCD&USB 5A
Solar charge controller
The BlueSolar PWM-LCD&USB controller from Victron Energy is a modern and compact solution designed for small photovoltaic systems. The device supports 12V and 24V installations, offering efficient battery charging from panels with a power of up to 160W.
The integrated LCD display allows real-time monitoring of the entire system and precise configuration of the charging characteristics depending on the type of battery installed.
The controller is equipped with two USB 2A ports, allowing for fast and simultaneous charging of mobile devices, and an intelligent dusk sensor automatically manages connected lighting.
Key Features
Discover the advantages that make the difference
Durable Construction
The BlueSolar PWM construction is based on the highest quality components, ensuring multi-year, trouble-free operation even in challenging operating conditions.
Intuitive Operation
The installation process is quick and trouble-free, and the clear LCD display allows for immediate assessment of the charging status and overall system condition.
Intelligent Protection
The applied algorithms actively manage energy, protecting batteries from overcharging, deep discharge, and connection errors.
Why choose BlueSolar PWM-LCD&USB?
BlueSolar PWM-LCD&USB is the ideal choice for users who need reliability from Victron Energy and full control over their system in real-time.
Victron Energy BlueSolar PWM-LCD&USB
Charge solar energy intelligently with the highest level of engineering
Efficient PWM Charging
PWM technology precisely regulates the energy delivered to the battery by rapidly and cyclically switching the power source.
- Constant switching frequency of the signal
- Variable pulse width of voltage
- Stabilization of parameters delivered to the load
Intuitive LCD Display
The built-in LCD screen allows for instant viewing of system operating parameters and easy adjustment of the controller settings.
- Monitoring the charging status in real time
- Simple configuration of the battery type
- Clear display of voltage and current
Two Efficient USB Ports
Two USB ports placed on the front panel allow convenient charging of mobile devices directly from the controller.
- Loading two devices simultaneously
- High current intensity 2A for newer smartphones
- Stable output voltage 5V for full safety
Extra Features
The BlueSolar PWM controller is equipped with a range of additional features and protections that increase the versatility of the device and raise the overall level of safety in the installation.
- Fully programmable lighting control function
- Load output protected against overcurrent and short circuit
- Load output with low voltage and manual disconnection (programmable)
- Protection against reverse polarity connection of solar panels and/or battery
-
Programmable three-stage battery charging (bulk, absorption, float)
Specifications
BlueSolar PWM-LCD&USB 12/24V-5A |
|
|
Battery Voltage (with auto detection) |
12 / 24 V |
|
Rated charge current |
5 A |
|
Automatic low voltage load disconnect |
Yes |
|
Maximum solar voltage |
28 V for a 12 V system and 55 V for a 24 V system |
|
Self-consumption |
<10mA |
|
Overload protection |
Shut down after 60 s in case of 130% load |
|
USB |
2 x 5V, 2A |
|
Operating temp. range |
-35°C to +60°C (full load) |
|
Humidity (non condensing) |
Max 95 % |
|
SETTINGS |
|
|
Charge voltage "absorption" |
Factory setting: 14,2V / 28,4V |
|
Charge voltage "float" |
Factory setting: 13,8V / 27,6V |
|
Load disconnect |
Factory setting: 11,2V / 22,4V |
|
Load reconnect |
Factory setting: 12,6V / 25,2V |
|
ENCLOSURE |
|
|
Protection class |
IP20 |
|
Terminal size |
6 mm / AWG10 |
|
Weight |
0,15 kg |
|
Dimension (h x w x d) |
96 x 169 x 36 mm |
|
STANDARDS |
|
|
Safety |
EN60335-1, IEC 62109-1 |
|
EMC |
EN 61000-6-1, EN 61000-6-3, ISO 7637-2 |
