Battery Monitor BMV-702 Black
The BMV-702 battery monitor in black is a highly accurate battery condition monitoring system. The primary function of this device is to calculate ampere-hours used and the battery charge level.
- On request
Product details
- Brand
- Victron Energy
- Reference
- BAM010702200R
- EAN13
- 8719076020127
- MPN
- BAM010702200R
Data Sheet
| Bluetooth | Category |
|---|---|
| No | Monitory akumulatorów |
Description
Description
BMV-702
High precision battery monitor
The BMV series battery monitors are a precise command center that eliminates the guesswork of determining the actual state of charge of batteries once and for all. The device acts as an advanced fuel gauge, showing not only the voltage, but above all the exact percentage of energy and the time remaining until discharge at the current rate of consumption.
Thanks to Peukert's intelligent algorithms, the system effectively protects your energy storage from excessive discharge, drastically extending the life of expensive cells.
This is an absolutely essential element of any professional installation, guaranteeing peace of mind and full control over the power supply.
Key Features
Discover the advantages that make the difference
Voltage versatility
The device supports 12V, 24V, and 48V systems, allowing for unrestricted use of the monitor in almost any power configuration.
High current efficiency
Thanks to the included 500A shunt, the monitor provides accurate measurements even in installations with very high current loads.
Perfect energy analysis
Advanced algorithms precisely calculate the state of charge (SoC), which facilitates cell protection and maximizes their service life.
Why is it worth to monitor the battery condition?
Precise monitoring allows you to respond to charging errors and deep discharges in real time, which directly translates into maximum battery life and a quick return on investment.
Main Functions
Monitor your energy resources in a smart way

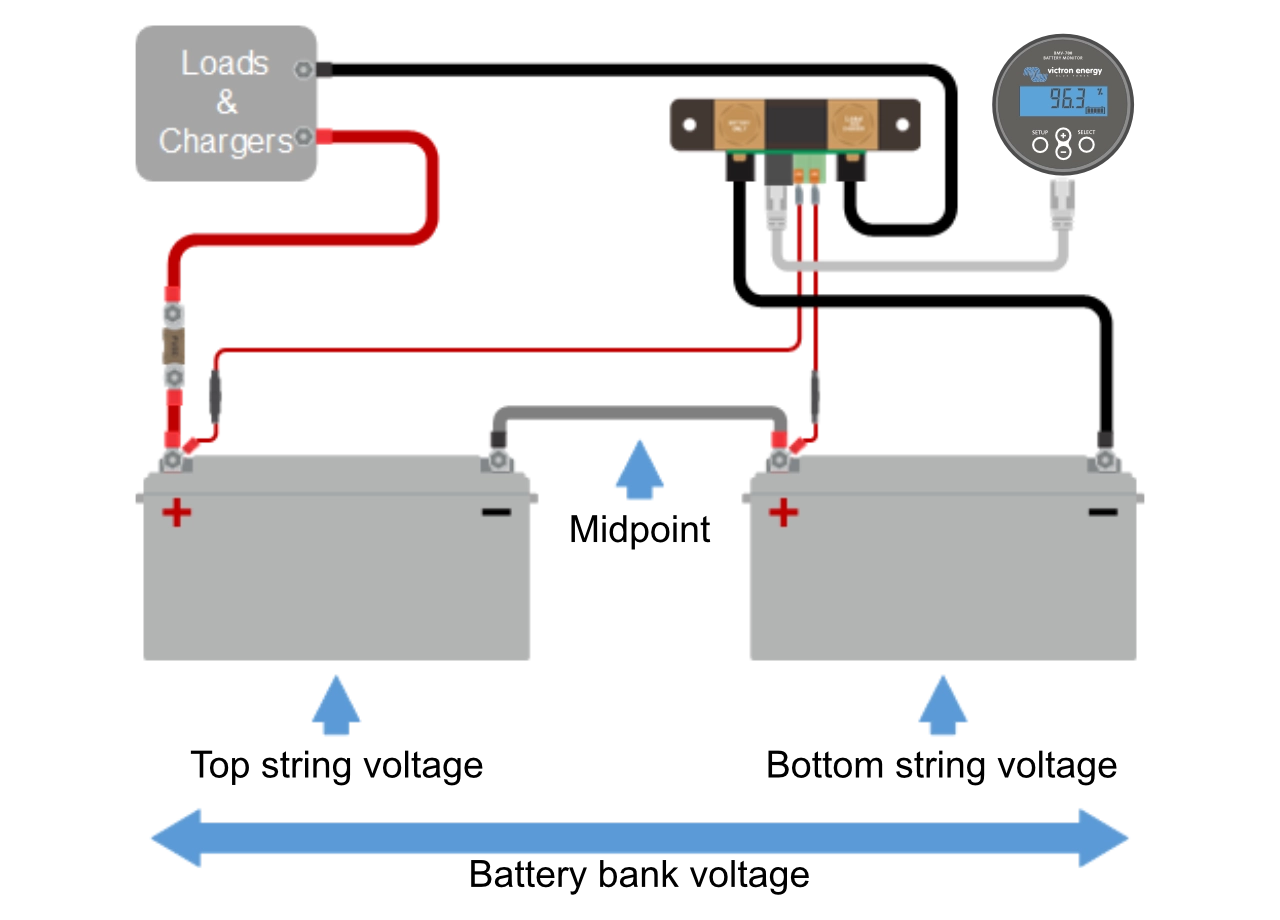

Midpoint voltage monitoring
This professional feature allows for early detection of faults in battery banks connected in series, protecting the system from costly single-cell failures.
- Precise control of voltage balance between battery blocks
- Immediate detection of loading errors or damaged targets
- Alarm for dangerous deviations to prevent battery damage
Comprehensive energy analytics
An advanced algorithm precisely calculates variables such as temperature, cell age, and discharge current to provide you with the most reliable system data.
- Exact time remaining until system shutdown
- Current power consumption expressed in watts
- Percentage indicator of actual battery charge
Quick and complete installation
The well-thought-out design based on ready-made bundles and quick connectors makes the installation of the monitoring system quick, clean, and does not require the purchase of any additional parts.
- Ready-made communication cable, 10 meters long
- Battery cable with built-in overcurrent fuse
- Interchangeable frames to match the shape of the display
Intuitive setup
A clear menu with text messages facilitates manual settings entry, but the fastest way to personalize the system is to use a dedicated mobile app.
- Convenient parameter management via the VictronConnect app
- Instant programming process directly from your phone
- Bluetooth Smart Dongle module required for wireless connectivity
Standard features
- Battery voltage, current, power, ampere-hours consumed and state of charge
- Remaining time at the current rate of discharge
- Programmable visual and audible alarm
- Programmable relay, to turn off non critical loads or to run a generator
- 500 Amp quick connect shunt and connection kit
- Shunt selection capability up to 10,000 Amps
- VE.Direct communication port
- Stores a wide range of historical events
- Wide input voltage range: 6.5 – 95V
- High current measurement resolution: 10 mA (0.01A)
- Minimal energy consumption without placing additional strain on the installation
Remote monitoring and control
Remotely monitor parameters and configure BMV monitor functions from your smartphone
VictronConnect App
VictronConnect app is the most convenient way to configure and operate your battery monitor directly from your smartphone. The intuitive interface provides a complete overview of the system status at the click of a button.
- Preview of key data in real time
- Access to the full event history and battery health data
- Instant settings changes and quick software updates software
Flexible communication methods
The BMV battery monitor offers flexible connectivity options, allowing you to tailor your system management to your individual needs.
- Via Bluetooth - using the VE.Direct Bluetooth Smart Dongle
- Via USB - using the VE.Direct USB interface
- Remotely - using the GX device (e.g. Cerbo GX ) and the free VRM portal
FAQ
Frequently Asked Questions
Specifications
BMV-702 |
|
|
Supply voltage range |
6.5 - 95 VDC |
|
Current draw (backlight off) |
< 4mA |
|
Input voltage range, auxiliary battery |
6.5 - 95 VDC |
|
Battery capacity |
1 - 9999 Ah |
|
Operating temperature range |
-40°C to +50°C |
|
Measures voltage of second battery, temperature or midpoint |
Yes |
|
Temperature measurement range 1) |
-20°C to +50°C |
|
VE.Direct communication port |
Yes |
|
Bistable relay |
60V / 1A normally open (function can be inverted) |
|
RESOLUTION & ACCURACY (with a 500A shunt)) |
|
|
Current |
± 0.01A |
|
Voltage |
± 0.01V |
|
Amp hours |
± 0.1 Ah |
|
State of charge (0-100%) |
± 0.1 % |
|
Time-to-go |
± 1 min |
|
Temperature (0 - 50°C or 30 - 120°F) 1) |
± 1°C/°F |
|
Accuracy of current measurement |
± 0.4 % |
|
Accuracy of voltage measurement |
± 0.3 % |
|
INSTALLATION & DIMENSIONS |
|
|
Installation |
Flush mount |
|
Head unit front diameter |
63 mm |
|
Head unit front bezel |
69 x 69 mm |
|
Shunt connection bolts |
M10 |
|
Head unit body diameter and depth |
52 mm and 31 mm |
|
Head unit protection category |
IP55 (not intended for outdoor use) |
|
STANDARDS |
|
|
Safety |
EN 60335-1 |
|
Emission / Immunity |
EN 55014-1 / EN 55014-2 |
|
Automotive |
ECE R10-4 / EN 50498 |
|
ACCESSORIES |
|
|
Shunt (included) |
500 A |
|
Cables (included) |
10 meter 6 core UTP with RJ12 connectors. |
|
Temperature sensor |
Optional (ASS000100000) |
|
FOOTNOTES |
|
|
1) Only when the optional temperature sensor is connected (ASS000100000). This temperature sensor is not included. |
|
