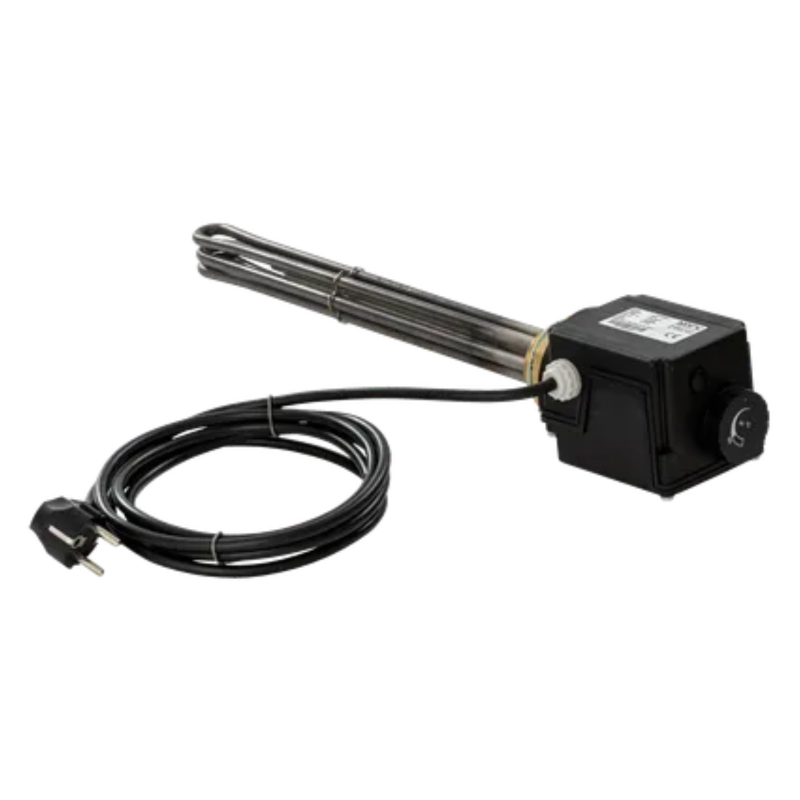

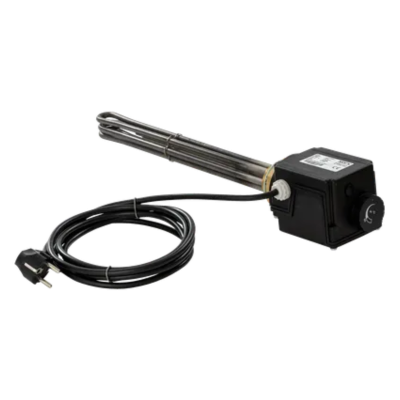

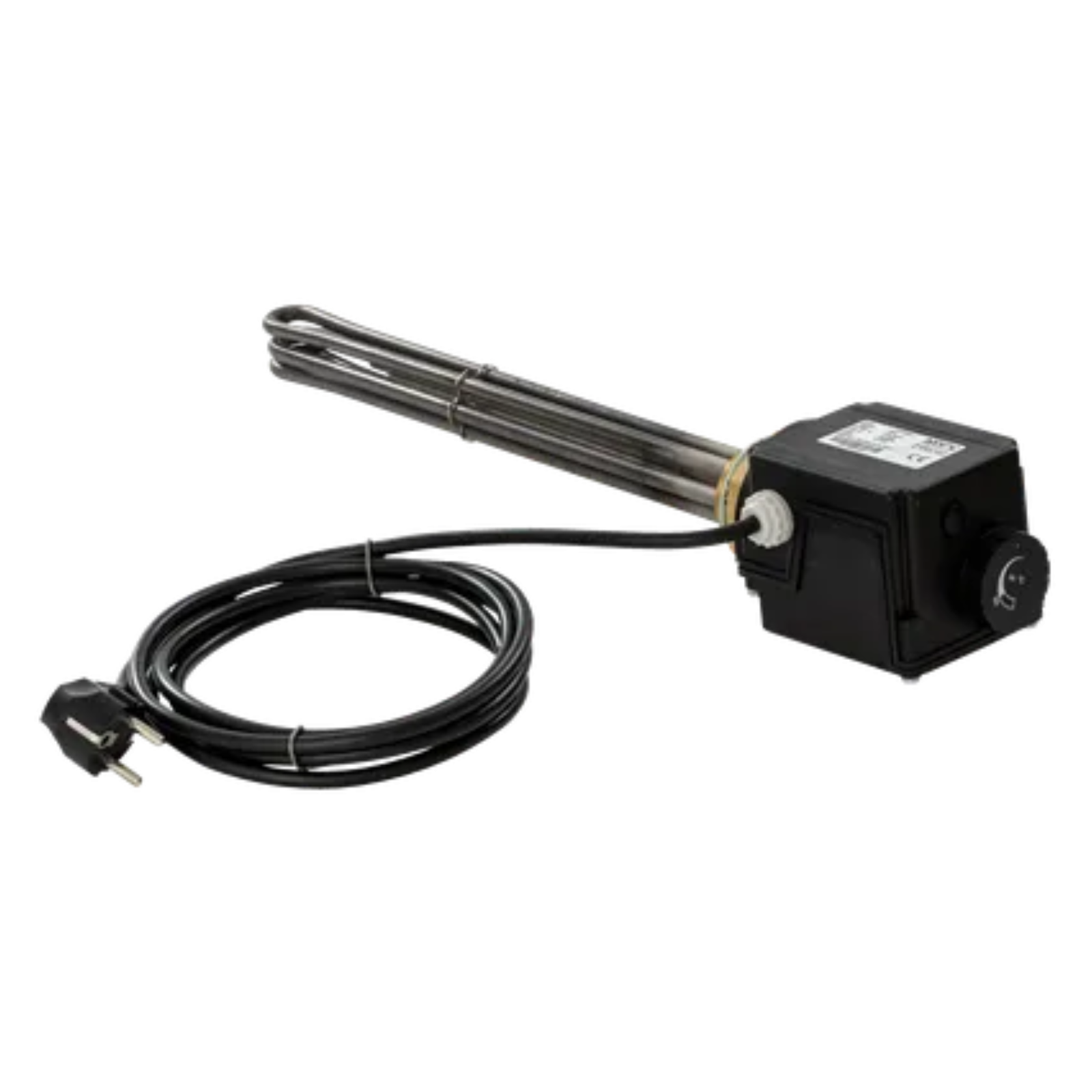

Immersion Heater

my-PV 3 kW Immersion Heater with 1.5" thread and thermostat, designed for AC•THOR and SOL•THOR photovoltaic power managers. Suitable for fresh water and buffer tanks. Enables efficient, infinitely adjustable conversion of surplus solar energy into heat.

  • New
Immersion Heater
Immersion Heater
€233.68
Tax included
€189.98
netto
Only a few items left
Delivery within 2 business days Last items in stock

Product details

Brand
my-PV
Reference
20-0500
MPN
20-0500

Data Sheet

IP Rating Zakres temperatury pracy Power Moc grzewcza Zasilanie Przewód zasilający Gwint grzałki Strefa bez grzania Moment dokręcania Maksymalne ciśnienie robocze Ogranicznik temperatury bezpieczeństwa Wersja bez termostatu Temperatura zadana z termostatem
IP45 Maks. 35°C 3000W 0-3000W Jednofazowe 2.8m G 1 1/2 cala 130mm od poziomu uszczelnienia 60Nm 10bar Około 98°C Około 96-105°C Około 34-78°C

Description

my-PV Logo

Immersion heater for heating with photovoltaic energy

Immersion Heater

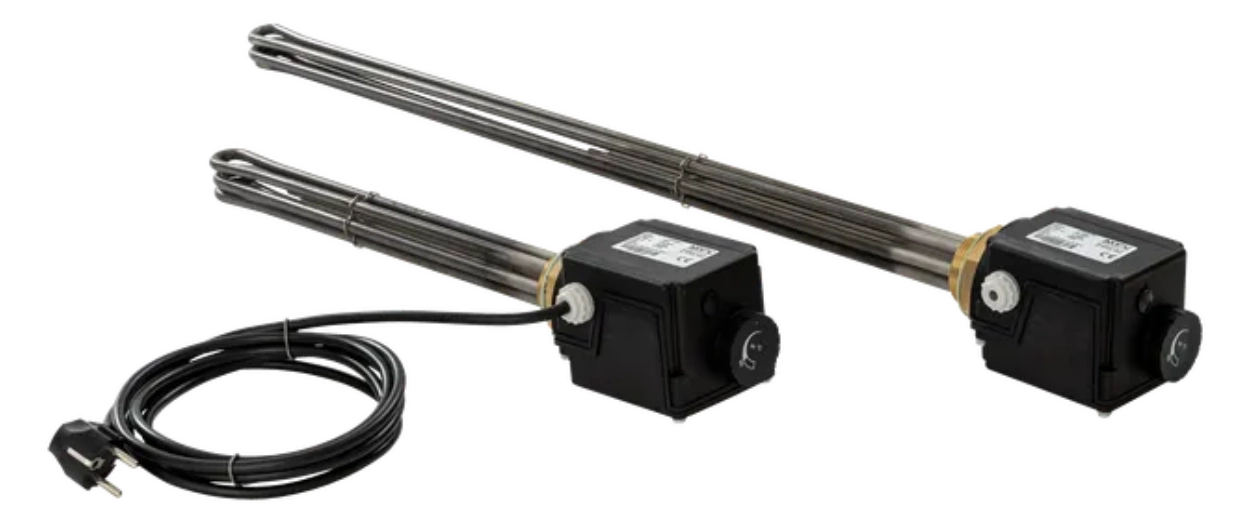

AC•THOR device

3 kW Immersion Heater

The 3 kW immersion heater from my-PV is designed to work with the AC•THOR and SOL•THOR photovoltaic power managers. It can be installed in domestic hot water and buffer tanks.

Thanks to its infinitely variable power control, the device precisely uses surplus energy from the PV system and efficiently converts it into heat. Its special design ensures a low thermal load on the heating element, contributing to a longer service life.

The 3 kW model was developed for use with AC•THOR and SOL•THOR systems. In off-grid installations, SOL•THOR can transfer the full output of the photovoltaic modules to the heater, enabling efficient water heating.

Immersion Heater Advantages
  • Manually adjustable target temperature (bimetal thermostat)
  • 1.5-inch standard thread
  • Single-phase or three-phase power supply
  • Optionally available without a thermostat, with only a safety temperature limiter

Integration Solutions

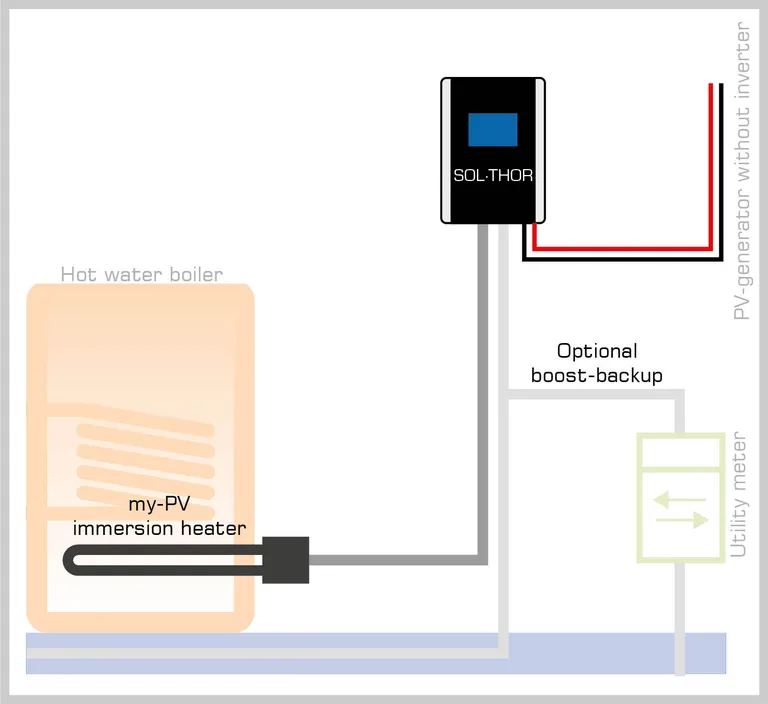

Autonomous photovoltaic heating: linearly controlled by SOL•THOR

Autonomous photovoltaic heating: linearly controlled by SOL•THOR

Linear Control with SOL•THOR

The 3 kW my-PV immersion heater works with AC•THOR, AC•THOR 9s and the SOL•THOR DC controller, which requires direct wiring to the heating element. The temperature is set using a rotary knob, while the integrated safety limiter protects against overheating; a thermostat-free version is available for temperatures above 90°C.

Data sheet

  • IP Rating
    IP45
  • Dimensions (W x H x D)
    88 x 88 x 518mm
  • Zakres temperatury pracy
    Maks. 35°C
  • Weight
    1.65kg
  • Power
    3000W
  • Warranty
    2 lata (z wyjątkiem zakamienienia)
  • Moc grzewcza
    0-3000W
  • Zasilanie
    Jednofazowe
  • Przewód zasilający
    2.8m
  • Gwint grzałki
    G 1 1/2 cala
  • Strefa bez grzania
    130mm od poziomu uszczelnienia
  • Moment dokręcania
    60Nm
  • Maksymalne ciśnienie robocze
    10bar
  • Ogranicznik temperatury bezpieczeństwa
    Około 98°C
  • Wersja bez termostatu
    Około 96-105°C
  • Temperatura zadana z termostatem
    Około 34-78°C

Product Details

  • Brand
  • Reference
    20-0500
  • In stock
    1 Item
  • MPN
    20-0500
