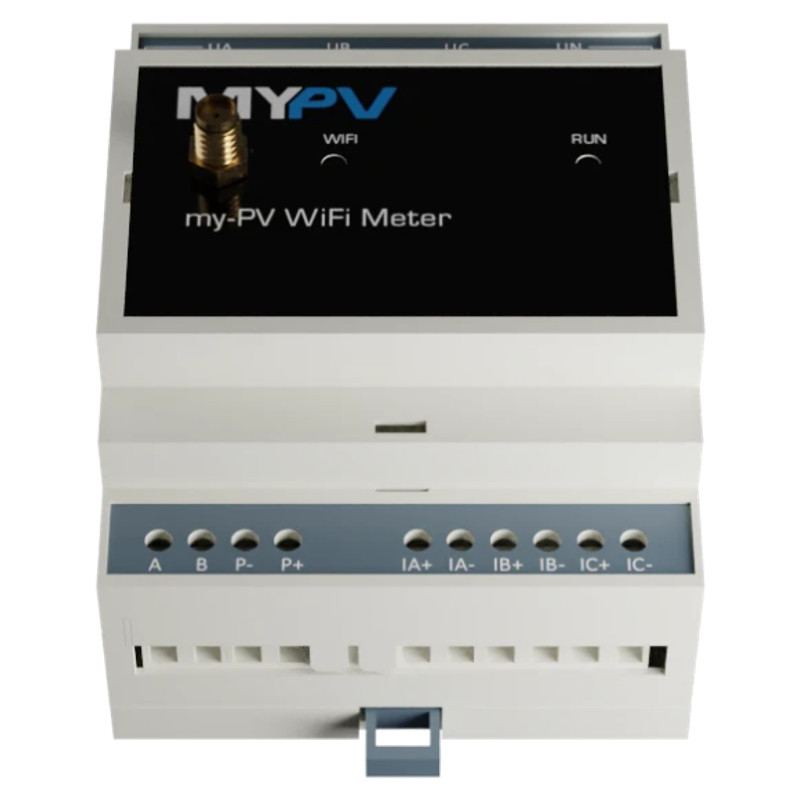

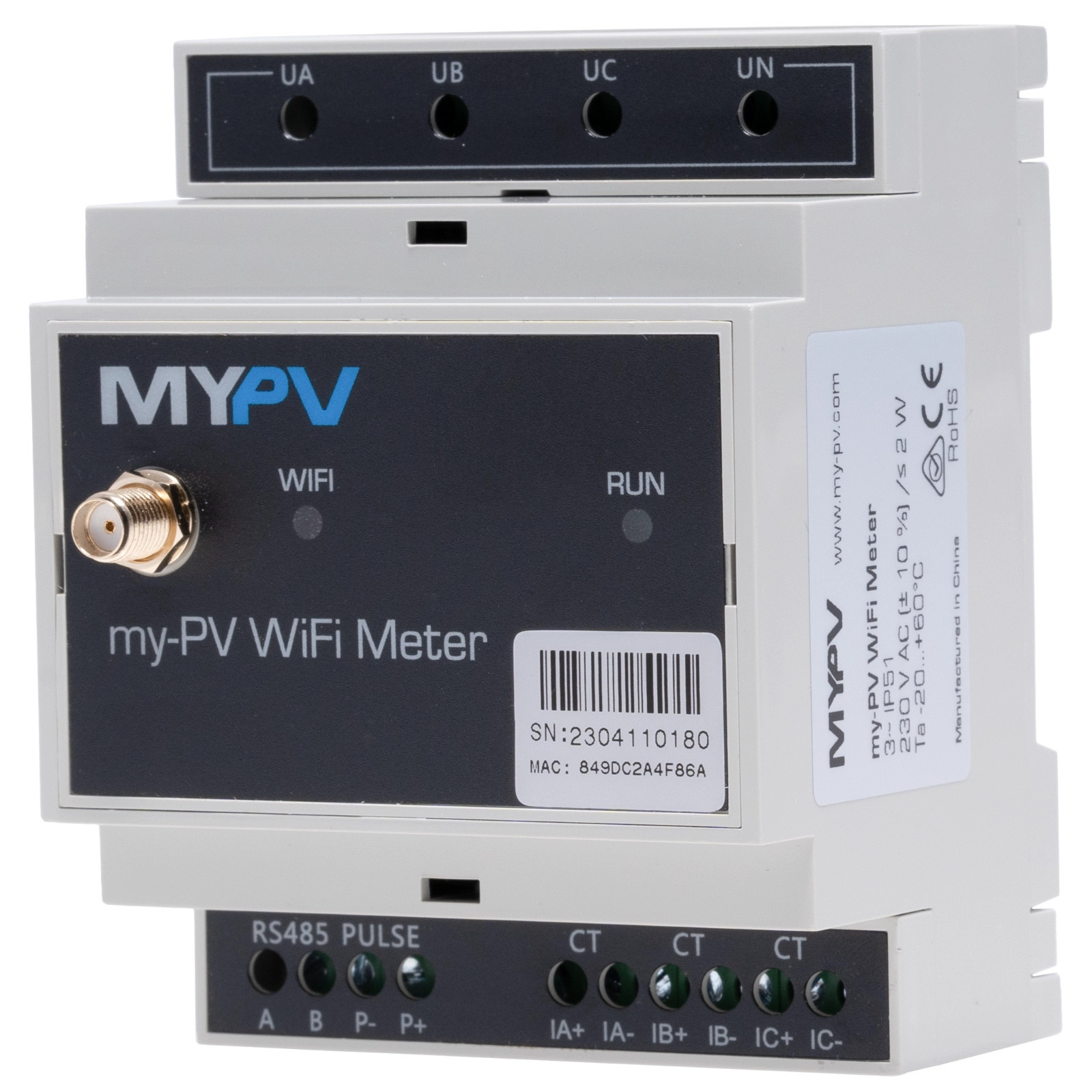

WiFi Meter
my-PV WiFi Meter is a wireless energy meter for monitoring photovoltaic surplus energy. Precise real-time measurement of energy production and consumption. Easy installation with mobile app, compatible with all my-PV devices for optimal energy management.
- On request
Product details
- Brand
- my-PV
- Reference
- 20-0107
Data Sheet
Brak danych technicznych
Description
Description
Monitor photovoltaic surplus quickly and precisely
my-PV WiFi Meter
Maximizes the self-consumption of your PV system in the simplest way
my-PV WiFi Meter maximizes the self-consumption of your PV system in the simplest way. It detects the energy flows of the PV system and transmits the excess energy data to the PV Power Manager AC•THOR, AC•THOR 9s or AC ELWA 2. This processing of information means that only the energy that is currently available is used to generate heat. Power feed-in is avoided. There is therefore no feed-in into the electricity grid: PV self-consumption is maximized and the public grid is relieved.
Advantages of my-PV WiFi Meter
- Clamp-on current transducers for the simplest data acquisition and high installation comfort
- Also suitable for feed-in points with big power rates in commercial applications
- Wireless communication
my-PV WiFi Meter Integration Solutions
Discover how my-PV WiFi Meter works with different systems to maximize your energy efficiency
3-phase power meter for AC•THOR and AC•THOR 9s
The my-PV WiFi Meter is integrated into an existing network infrastructure via WLAN. At the "other end" of the network is the AC•THOR or the AC•THOR 9s, which communicates with the my-PV WiFi Meter. Both together now fulfill the desired control function.
Also suitable for AC ELWA 2
Just as with AC•THOR or AC•THOR 9s, my-PV WiFi Meter can also be used with the proven AC ELWA 2. More simply, surplus management is barely imaginable.
Also in this case, connection options via router / switch, directly or via Powerline are possible.
And at the same time, this solution is very inexpensive.
Bi-directional measurement is easy to install
my-PV WiFi Meter is mounted in the distribution cabinet directly after the utility meter and detects the power flow via three external clamp-on current transducers which can be mounted without disconnecting the phases. It couldn't be easier.
Specifications
my-PV WiFi Meter |
|
|
Measurement range |
0 - 75 A (higher currents possible with other folding inverters); 230 V AC (+- 10%) |
|
Interface |
WiFi |
|
Dimension (W x H x D) |
90,2 x 71 x 57,5 mm |
|
Protection class |
IP 51 |
|
Clamp-on current transducers: Max. wire diameter |
10 mm |
|
Special sizes (W× H × L) |
0-100 A Max. wire diameter max. 23 mm, 51 x 41 x 65 mm |
