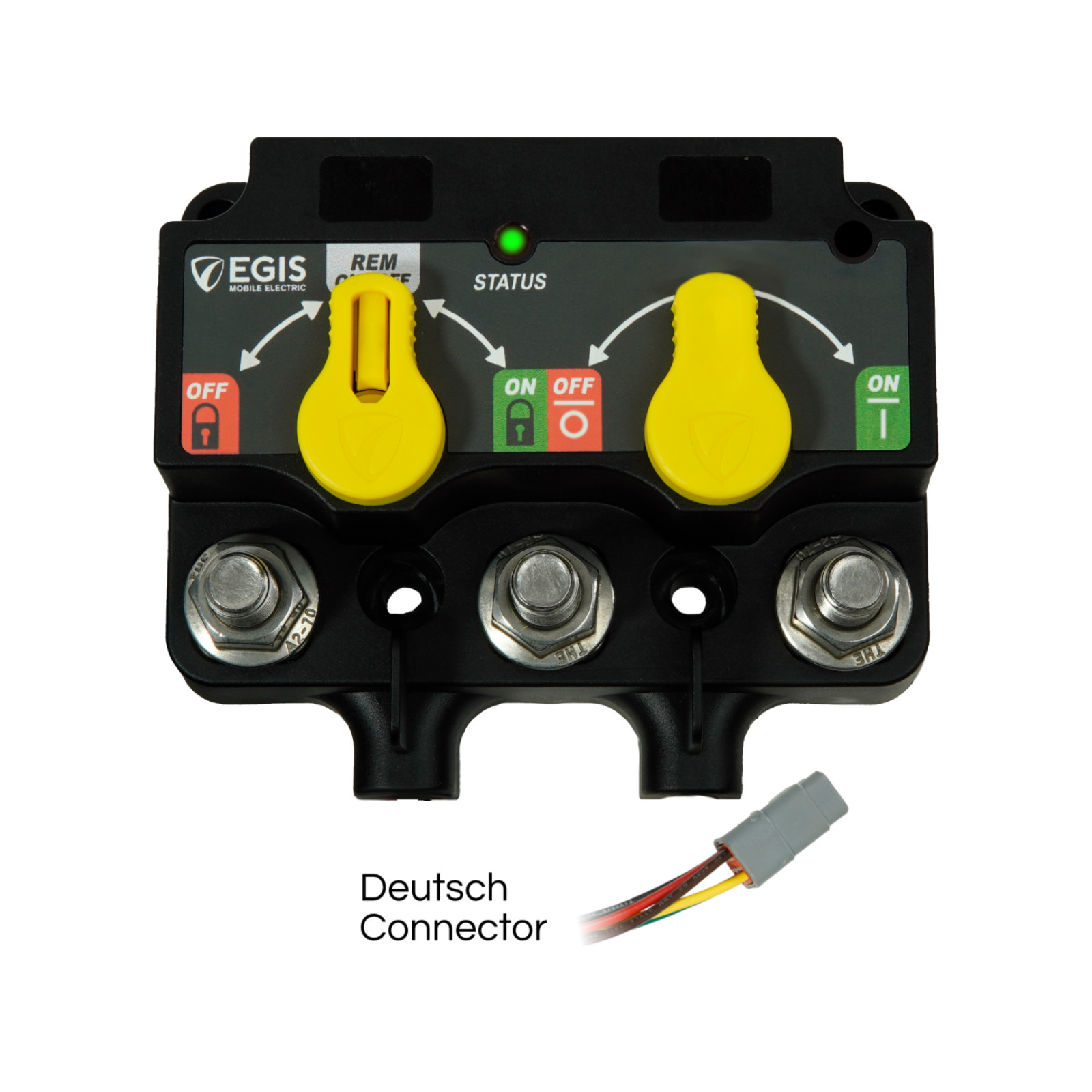

Dual Remote Battery Disconnect Switch (ACR)-(Mech) - DTM Connector - Egis 8820-1390B
Egis XD Series 8820-1390B is a robust Dual Remote Battery Disconnect Switch which combines ACR functionality with a mechanical only battery switch, equipped with a knob and a DTM connector. Ensures reliability and safety in various environments, from vehicles to marine installations.
- On request
Product details
- Brand
- Egis Mobile Electric
- Reference
- 8820-1390B-EGIS
- MPN
- 8820-1390B
Data Sheet
| Voltage Range | Category | Continuous Current | IP Rating | Maximum Cranking Current | Connector Type | Egis Mobile Electric | Total Continuous Current |
|---|---|---|---|---|---|---|---|
| 8-36 V | Disconnect Switches | 500 AMP | IP67 IP6K9K | 1500 AMP | DTM Connector | XD Flex 2 | 500 AMP |
Description
Description
Dual Battery Disconnect Switch 8-36V DC - Egis 8820-1390B
Modern remote battery disconnect switch - knobs and DTM connector
(ACR) - (Mech)
Advanced Power Management
The Egis 8820-1390B replaces two individual high amp relays with one compact module reducing space significantly. It is an advanced, programmable remote battery disconnect switch which combines ACR functionality with a mechanical only battery switch, designed for efficient power management in electrical systems. Equipped with manual rotary knobs, it allows for easy operation and configuration.
Reliability in Demanding Environments
Its rugged, waterproof IP67-rated design and DTM connector ensure corrosion protection and dependable performance even in harsh conditions. The product is an excellent choice for marine, automotive, and industrial applications that require monitoring and automatic switching of power sources.
Total Continuous Current
500 AMP
Max Cranking Current
1500 AMP
Mechanical Switch Lifetime
1,000,000 Cycles
Voltage Range
8-36V DC
Feature Summary
Applications / Problems This Solves.
Compact & Lightweight Design
Achieves a 35–75% reduction in mounting space and overall product weight through an advanced bi-stable solenoid architecture, optimizing installation efficiency.
Dual Battery Charging Management
Prevents dead start batteries by enabling shared charging between two batteries and isolating them when no charge source is active.
Multi-Engine Compatibility
Integrates independent start or engine isolation inputs, allowing seamless operation across multiple engines or charge systems while maintaining optimal charging performance.
Expandable System Architecture
Easily connects to additional XD relays-dual, triple, or single-using Link and Cross-Link busbars to support more complex multi-battery configurations.
Rugged, Sealed Construction
Built to endure harsh environments with IP67/IP6K9K sealing, stainless steel hardware, and high-temperature materials suitable for any mounting location.
Intuitive Programming & Compatibility
Offers simple dip-switch programmability for flexible configuration and plug-and-play compatibility with legacy ML Series bi-stable relays, reducing integration time.
Why Egis 8820-1390B?
Discover the advantages that make a difference.
LED Status Display
Equipped with a front-facing LED for immediate device status visibility and a remote LED output that mirrors on-device signals for easy system monitoring.
Manual Override Control
Features a 3-position knob allowing users to force the relay open or closed and lock it in either condition for enhanced control and maintenance flexibility.
Enhanced Protection & Longevity
Includes a protective cover to prevent accidental shorts and an integrated Gortex vent that regulates internal pressure, eliminating moisture ingress and extending service life.
Stainless Hardware
Utilizes stainless steel studs and self-locking flanged nuts for superior corrosion resistance, ensuring reliable operation even in marine or high-humidity environments.
Made in USA
Manufactured using premium-quality components for lasting performance and reliability.
