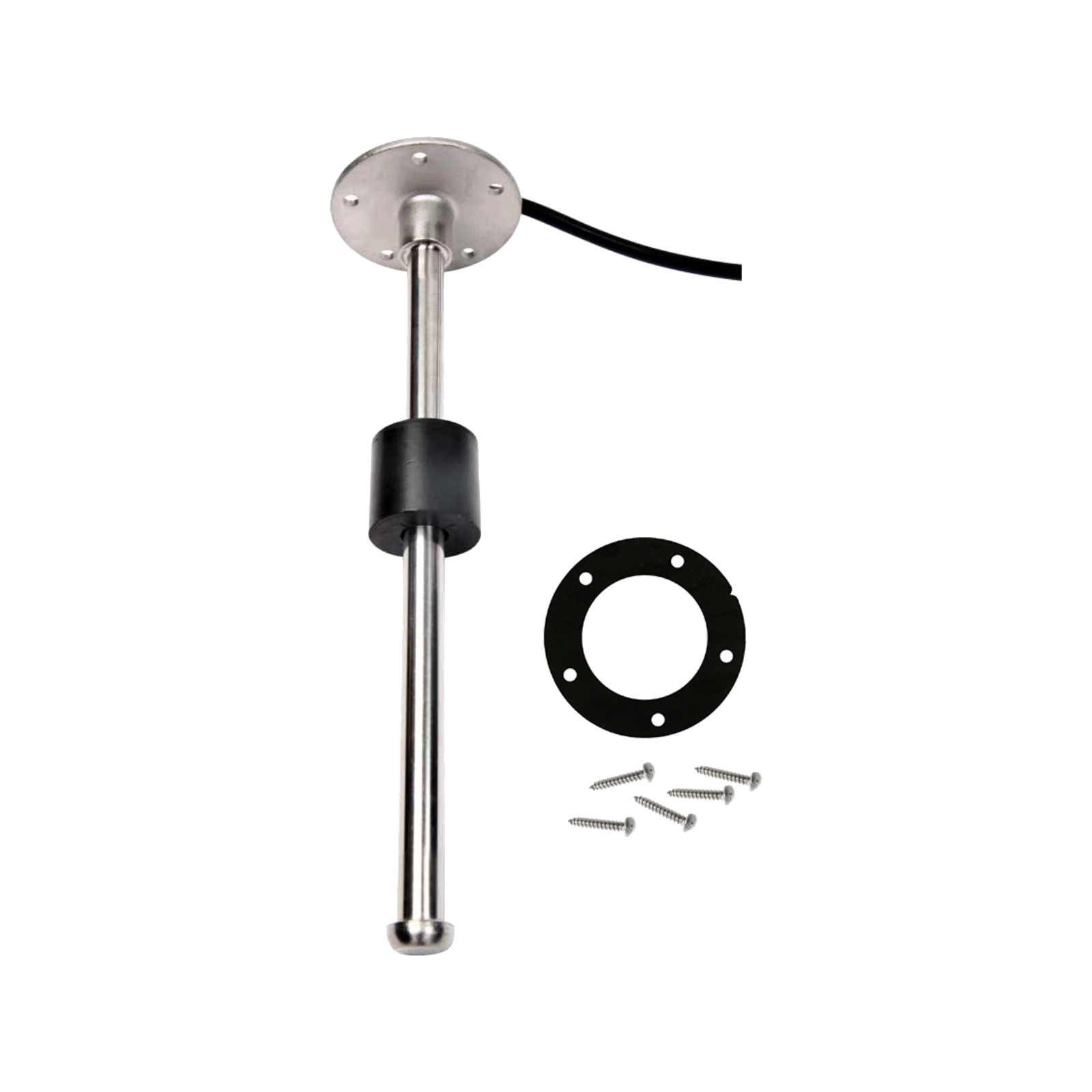

Liquid Level Sensor - SAE-5-Hole Pattern - 500 mm - Wema S5-E500
The Wema S5-E Liquid Level Sensor is a high-precision, SAE-5-Hole Pattern stainless steel sender designed to measure fuel, water, oil, and other liquids with exceptional reliability. Engineered for durability and trusted by leading marine and automotive manufacturers for over four decades.
Product details
- Brand
- Wema
- Reference
- 323110
- EAN13
- 7025923231105
- MPN
- 323110
Data Sheet
| Voltage | Mount | NMEA2000 | Range | Sensor Length (mm) |
|---|---|---|---|---|
| 12V 24V | SAE-5-Hole Pattern | No | 0-190 Ohm | 500 |
Description
Description
Liquid Level Sensor - SAE-5-Hole Pattern - Wema S5-E
Professional solution for precise liquid level measurement
Working Range
0–190 Ohm (EU Standard)
Operating Temperature
-40°C to +85°C
Power Supply
12 / 24 V
Mounting
SAE-5-Hole Pattern
IP Rating
IP65
Material
316 Stainless Steel
Key Features
Durable & Reliable Construction
Designed for long-term performance, the S5 Sender combines precision engineering with premium materials to ensure accurate tank level monitoring in demanding environments.
- AISI 316 stainless steel body
- Single external moving float
- Sealed, water-resistant cable entry
Versatile Performance & Compatibility
Engineered for flexibility, the S5 Sender is suitable for various fuel and water applications and designed to integrate seamlessly with matching gauges.
- Suitable for diesel, petrol, oil, potable and grey water
- Compatible with 0–190 Ohm gauges
- Works in boats, trucks, RVs
Specifications
Wema S5-E500 Liquid Level Sensor 500 mm |
|
|
Sensor length |
500 mm |
|
Working range |
0-190 ohm |
|
Operating temperature |
-40°C do 70°C |
|
Voltage |
12 / 24 V |
|
Mounting type |
SAE-5-Hole Pattern |
|
Hole diameter |
40 mm |
|
External diameter of the sensor head |
69 mm |
|
Height above the tank |
21 mm |
Data sheet
-
Voltage12V
24V -
MountSAE-5-Hole Pattern
-
NMEA2000No
-
Range0-190 Ohm
-
Sensor Length (mm)500
Product Details
-
Brand
-
Reference323110
-
In stock12 Items
-
EAN137025923231105
-
MPN323110
