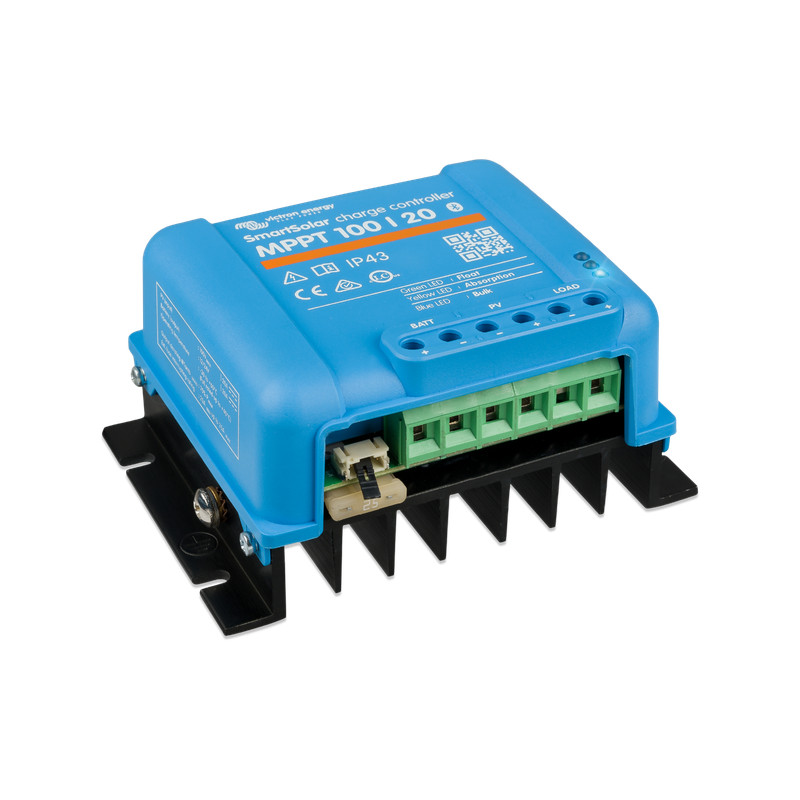

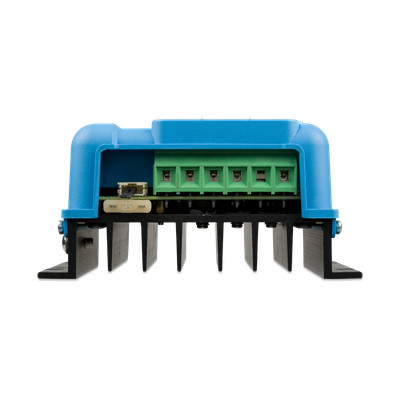

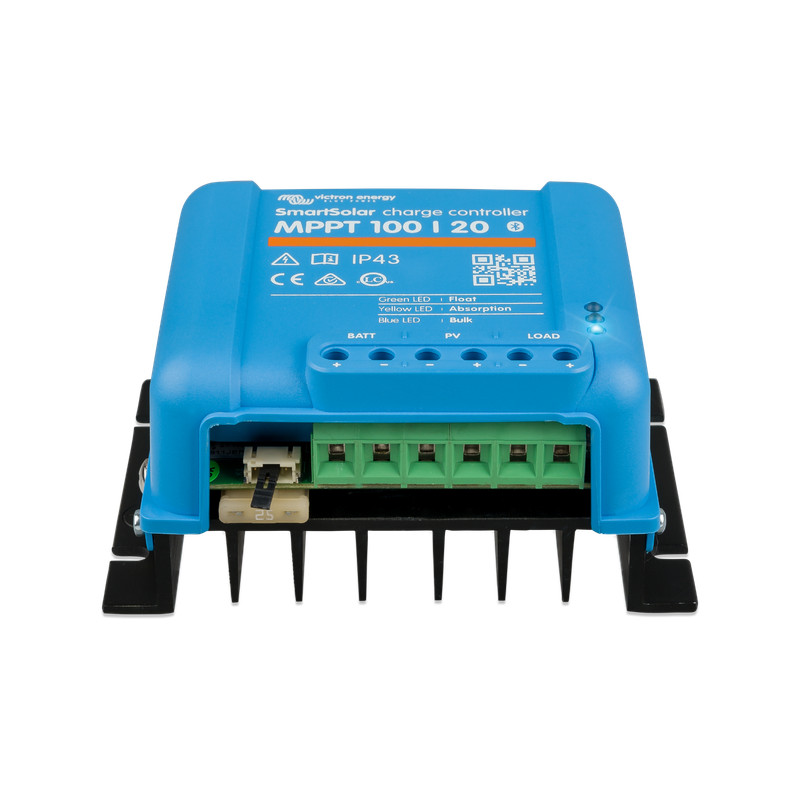

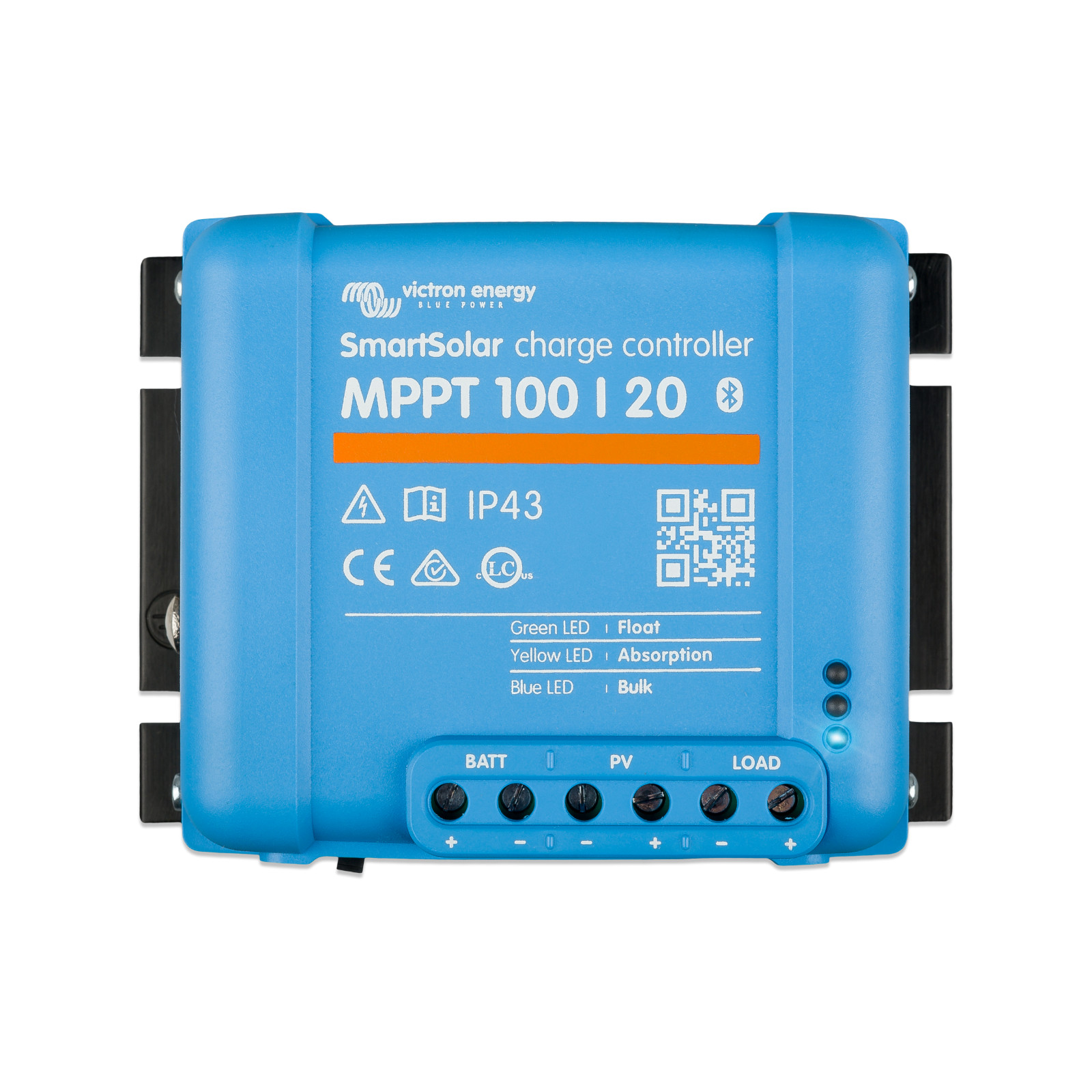

Charge Controller SmartSolar MPPT 100/20 (up to 48V)

SmartSolar MPPT 100/20-48V

Battery voltage (auto select)

12 / 24 / 48 V

Rated charge current

20 A

Nominal PV power, 12 V _{(1a, 1b)}

290 W

Nominal PV power, 24 V _{(1a, 1b)}

580 W

Nominal PV power, 48 V _{(1a, 1b)}

1160

Max. PV short circuit current ₍₂₎

20 A

Automatic load disconnect

Yes

Max. PV open circuit voltage

100 V

Peak efficiency

98%

Self-consumption – load on

12 V: 26 mA
24 V: 20 mA
48 V: 19 mA

Self-consumption – load off

10 / 8 / 7 mA

Charge voltage 'absorption'

14,4 V / 28,8 V / 57,6 V (adjustable)

Charge voltage 'float'

13,8 V / 27,6 V / 55,2 V (adjustable)

Charge algorithm

Multi-stage adaptive

Temperature compensation

-16 mV /°C or -32 mV /°C

Max. continuous load current

20 A / 20 A / 1 A

Low voltage load disconnect

11,1 V / 22,2 V / 44,4 V or 11,8 V / 23,6 V / 47,2 V or Battery Life algorithm

Low voltage load reconnect

13,1 V / 26,2 V / 52,4 V or 14 V / 28 V / 56 V or Battery Life algorithm

Protection

Output short circuit / Over temperature

Operating temperature

-30 to +60 °C (full rated output up to 40 °C)

Humidity

95 %, non-condensing

Data communication port

VE.Direct (see the data communication white paper on our website)

ENCLOSURE

Colour

Blue (RAL 5012)

Power terminals

6 mm ² / AWG10

Protection category

IP43 (electronic components)
IP22 (connection area)

Weight

0,65 kg

Dimensions (h x w x d)

100 x 131 x 60 mm

STANDARDS

Safety

EN-IEC 62109-1,
UL 1741, CSA C22.2
