Remote Panel for BlueSolar PWM-Pro Charge Controller
Remote control panel for BlueSolar PWM-Pro charge controllers. It allows users to easily monitor and configure controllers.
Product details
- Brand
- Victron Energy
- Reference
- SCC900300000
- EAN13
- 8719076025627
- MPN
- SCC900300000
Data Sheet
| Category |
|---|
| Displays and Panels |
Description
Description

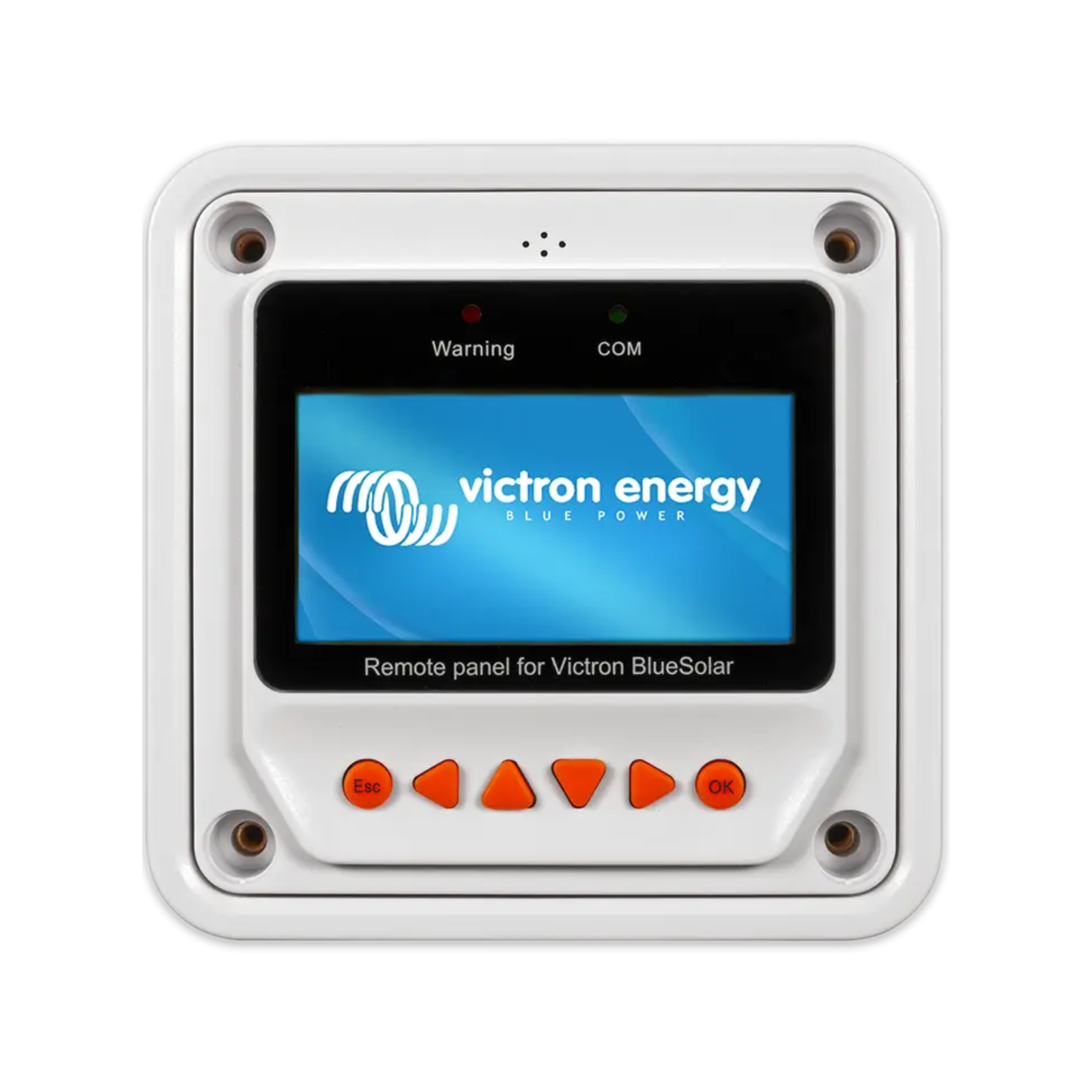

Remote Panel for BlueSolar PWM-Pro
Optional LCD remote control panel for BlueSolar PWM-Pro charge controllers
The remote control panel is a dedicated tool for full monitoring and advanced configuration of PWM-Pro series charge controllers. Equipped with a clear LCD display, it allows for instant viewing of key system parameters such as battery voltage and current charging rate.
Intuitive interface enables precise adjustment of charging algorithm settings and customization of the device to a specific battery type and installation needs.
Thanks to compatibility with the entire range of Pro controllers (5-30A), the panel serves as an indispensable command center in solar systems in campers, on boats, and in off-grid installations.
Key Features
Discover the advantages that make a difference
Intuitive LCD display
The built-in LCD display provides clear and instant access to key system parameters such as battery voltage and current charging rate.
Advanced customization
The panel allows for free adjustment of charging parameters and cut-off voltages, enabling perfect device adaptation to a specific battery type.
Wide compatibility
This universal solution is compatible with all BlueSolar PWM-Pro controllers with current ratings from 5A to 30A, operating in 12V and 24V systems.
Why buy the remote control panel?
The remote control panel is an essential extension that unlocks the full potential of the controller, enabling precise programming of charging parameters and convenient monitoring of system status from any location.
Interface and LEDs
Discover the functions of buttons and indicators that enable full system control and instant response to device operating status. urządzenia.
- Warning LED - the warning indicator LED flashes in case of failure of the connected charge controller
- Audible alarm - the audible failure alarm can be activated or deactivated
- Communication LED - indicates communication status when the display is connected with the charge controller

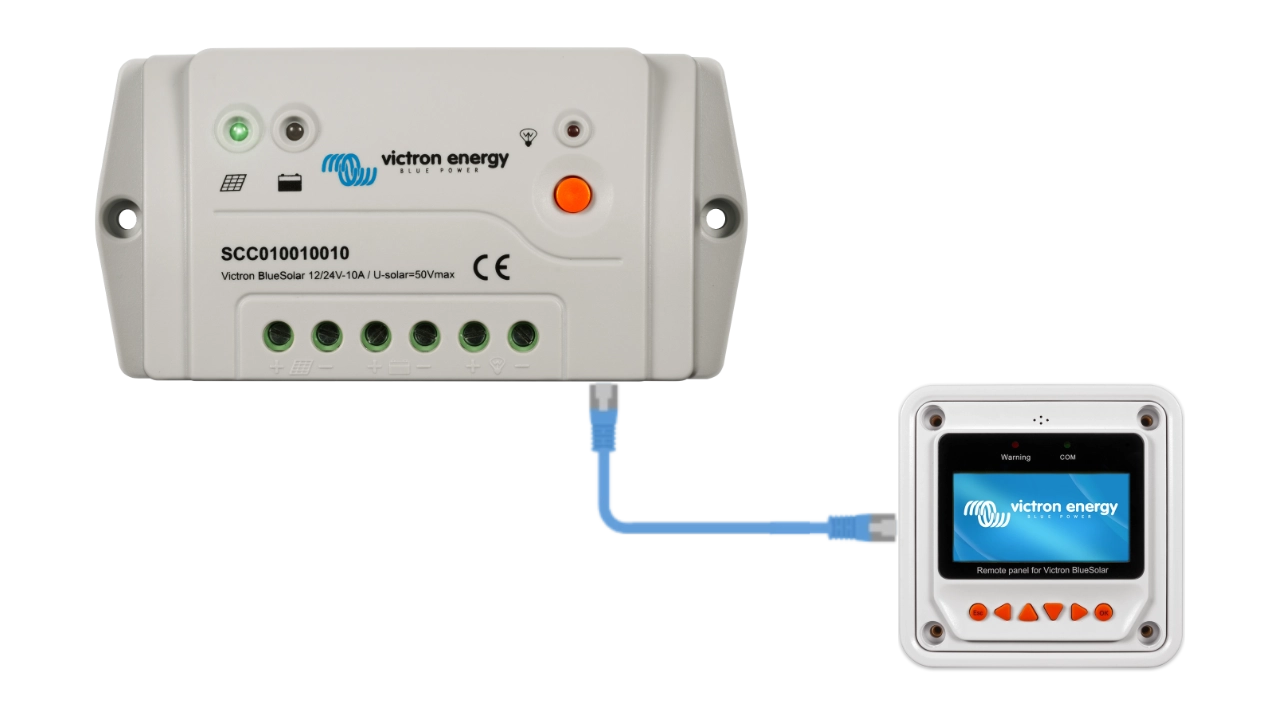

Installation of the panel
The installation of the device is extremely simple and involves connecting the panel to the BlueSolar PWM-Pro controller using standard RJ45 UTP network cable.
Specifications
Remote Panel for BlueSolar PWM-Pro |
|
|
Self-consumption |
Backlight and acoustic alarm on: max. 65 mA |
|
Faceplate dimensions |
98 × 98 mm |
|
Frame dimensions |
114 × 114 mm |
|
Connector type |
RJ45 |
|
Cable length |
Max. 20 m |
|
Weight |
0,2 kg |
|
Ambient Temperature |
-20°C to +70°C |
