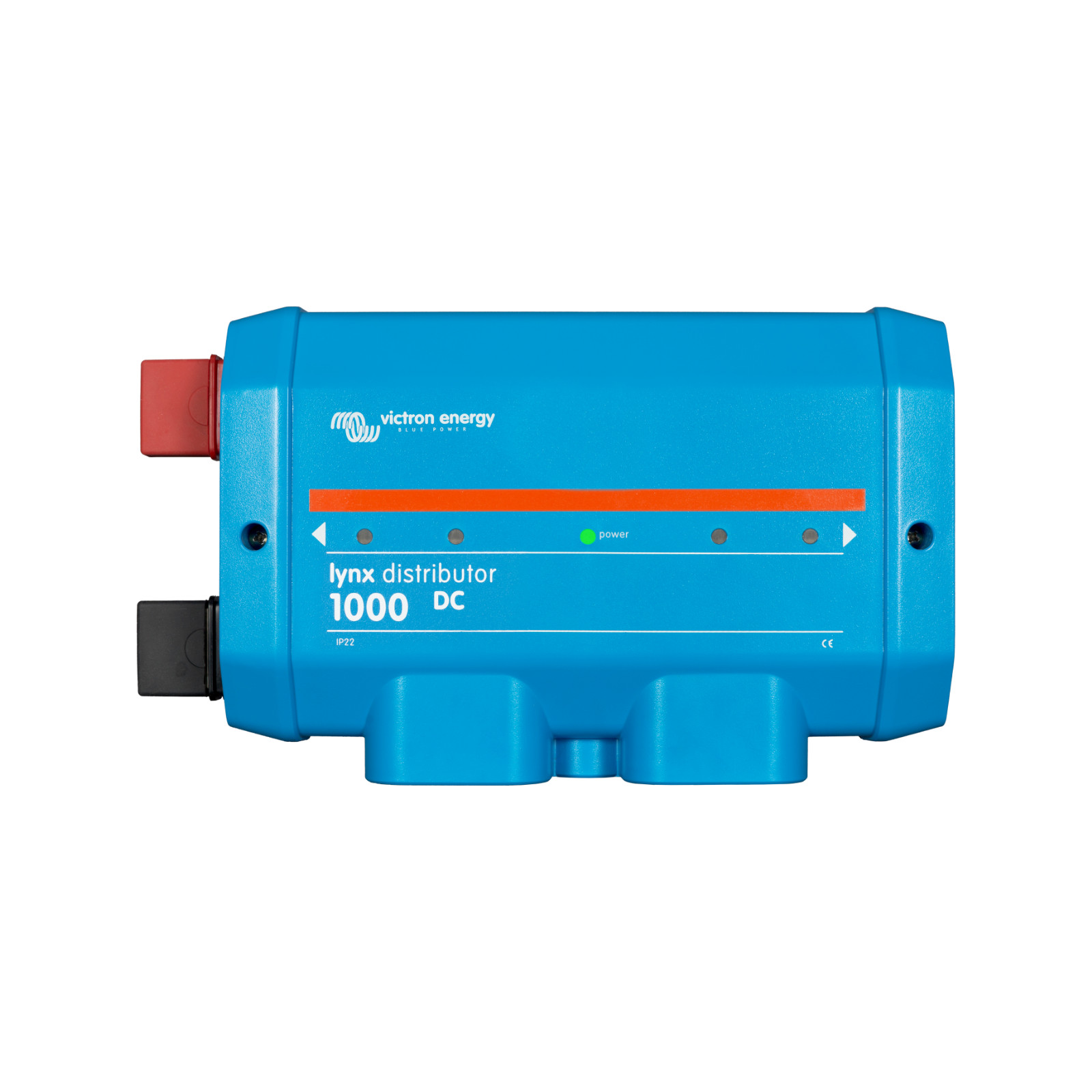

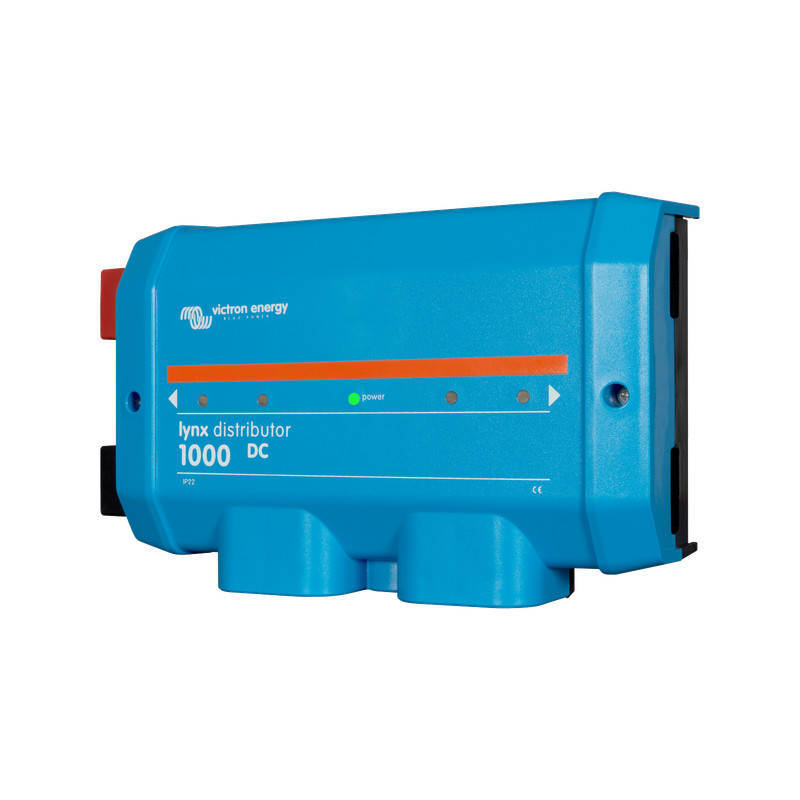

DC Busbar Lynx Distributor (M8)
A modular DC busbar Victron Lynx Distributor (M8) with spaces for four DC fuses. It monitors the status of each fuse and displays its condition with an LED. Perfect for modern energy storage and photovoltaic systems.
- Withdrawn from sale
Product details
- Brand
- Victron Energy
- Reference
- LYN060102000
- EAN13
- 8719076022633
- MPN
- LYN060102000
Data Sheet
| Model | Version |
|---|---|
| Lynx | Distributor |
Description
Description
Lynx Distributor (M8)
Innovative DC voltage distributor

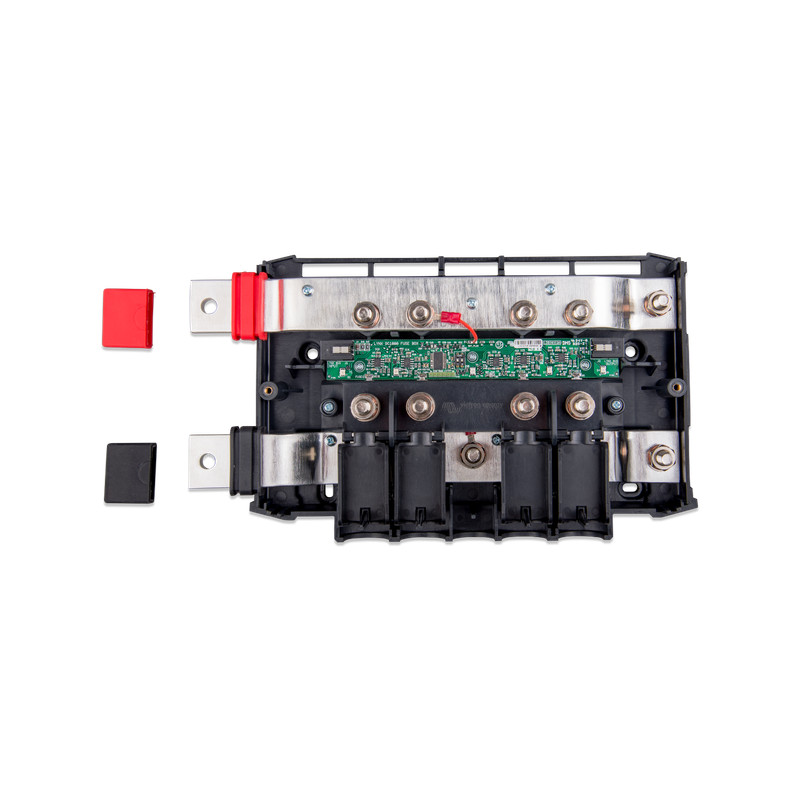

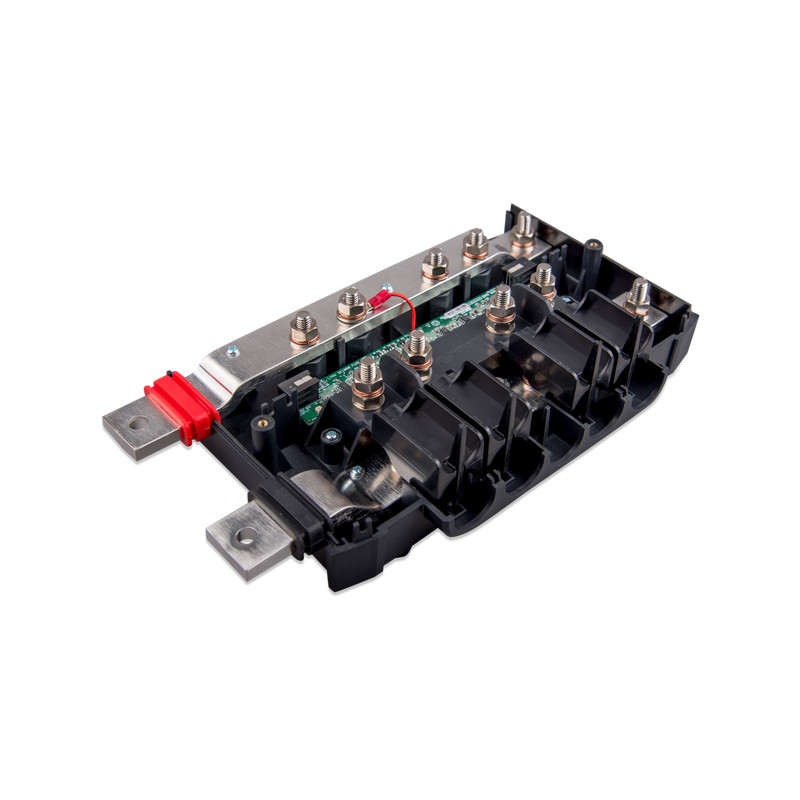

The Victron Energy Lynx Distributor is a modular DC busbar for safe and orderly power distribution in advanced energy systems. The device integrates positive and negative busbars, offering four independent outputs for loads or inverters.
The module has an integrated MegaFuse fuse monitoring system, which uses LEDs to instantly indicate the status of each circuit. Thanks to its full compatibility with the Lynx system, the distributor allows for easy expansion of a professional DC power distribution board. The distributor is equipped with a 12V DC output, which can be used to power various devices.
It is a reliable foundation for the installation, ensuring the highest level of protection and transparency in energy management.
Key Features
Discover the advantages that make a difference
High quality
Lynx Distributor features a robust and durable construction that ensures reliability and longevity.
Easy integration
Designed for easy integration with Victron Energy systems. M8 terminals enable quick and secure cable connection, facilitating installation and maintenance.
Advanced energy management
As part of the Victron modular system, the Lynx Distributor optimises distribution and facilitates energy monitoring in complex installations.
Why Lynx Distributor?
Lynx Distributor is an excellent alternative to traditional splitters, especially in complex systems where orderly cabling and quick diagnostics are crucial.
System examples
Examples of Lynx Distributor configurations
Lynx Smart BMS, 2x Lynx Distributor and lithium batteries
This advanced system utilises Lynx Smart BMS for complete lithium battery management and two Lynx Distributor modules for secure connection of consumers and chargers.
- Parallel connection of Lithium Smart batteries with fuse protection.
- Lynx Smart BMS controls the contactor and monitors the status of the entire energy bank
- The Cerbo GX device enables reading data from the BMS and the status of fuses.
Lynx Distributor only
Lynx Distributor can operate as a standalone busbar with any battery and receiver configuration, offering flexibility of installation even in the simplest setups.
- Possibility of connecting multiple Lynx Distributor modules
- Can be used as a passive fuse busbar
Monitoring
VictronConnect App
The VictronConnect app enables remote monitoring of the status of Lynx Distributor modules via the Lynx Smart BMS device.
- Full insight into the status of all connected dispensers
- Click on the “DISTRIB.” tab to see the Lynx Distributor status window
- Instant notification of blown fuses
The Lynx Distribution System
The Lynx Distribution System is a modular busbar system that incorporates DC connections, distribution, fusing, battery monitoring and/or Lithium battery management.
Specifications
Lynx Distributor (M8) - Victron Energy |
|
|
Voltage range |
9 - 60V DC |
|
Supported system voltages |
12, 24 or 48V |
|
Reverse polarity protection |
Yes (1) |
|
Current rating |
1000A |
|
Maximum power consumption (2) |
100 mA (with all LEDs illuminated) |
|
Busbar |
M8 |
|
Fuses |
M8 |
|
Power (2) and data (3) |
40 cm RJ10 cable (included) |
|
Enclosure material |
ABS |
|
Enclosure dimensions (H x L x W) |
290 x 170 x 80 mm |
|
Weight |
2,2 kg |
|
Busbar material |
Tinned copper |
|
Busbar dimensions (H x W) |
8 x 30mm |
|
Operating temperature range |
-40°C to +60°C |
|
Humidity |
Max. 95% (non-condensing) |
|
IP rating |
IP22 |
|
1) The RJ10 cable connection is not protected against reverse polarity |
|
|
2) Powered from Lynx Shunt VE.Can or Lynx Smart BMS. |
|
|
3) Data can only be received by a Lynx Smart BMS. |
|
