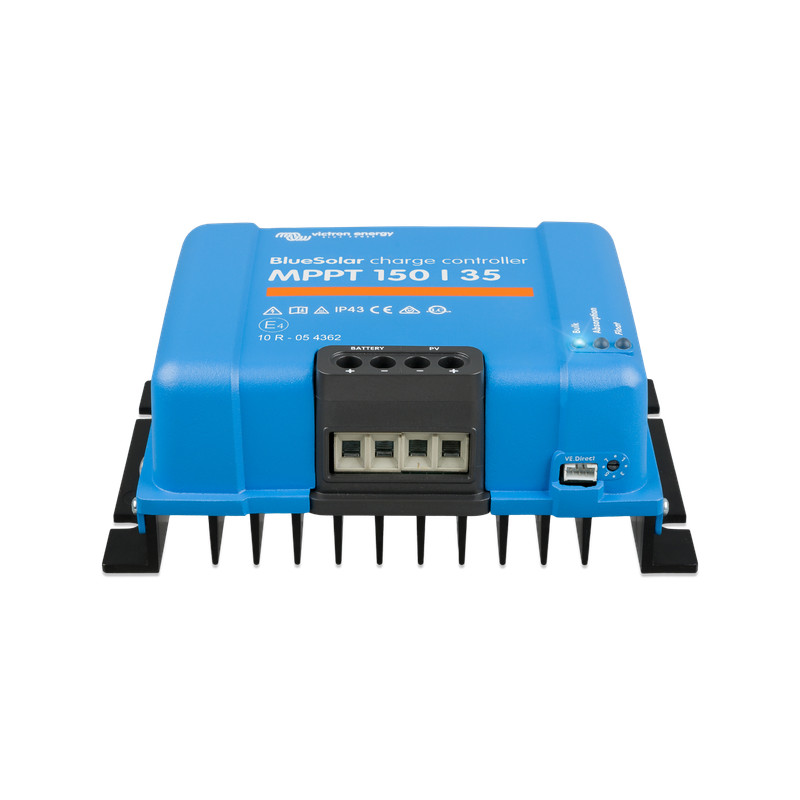

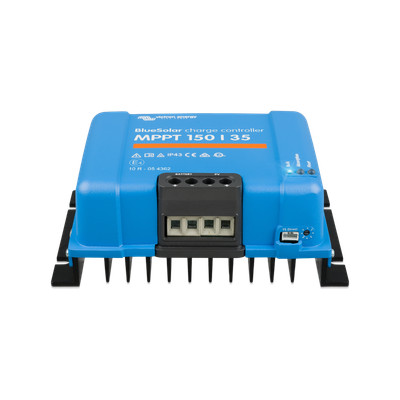

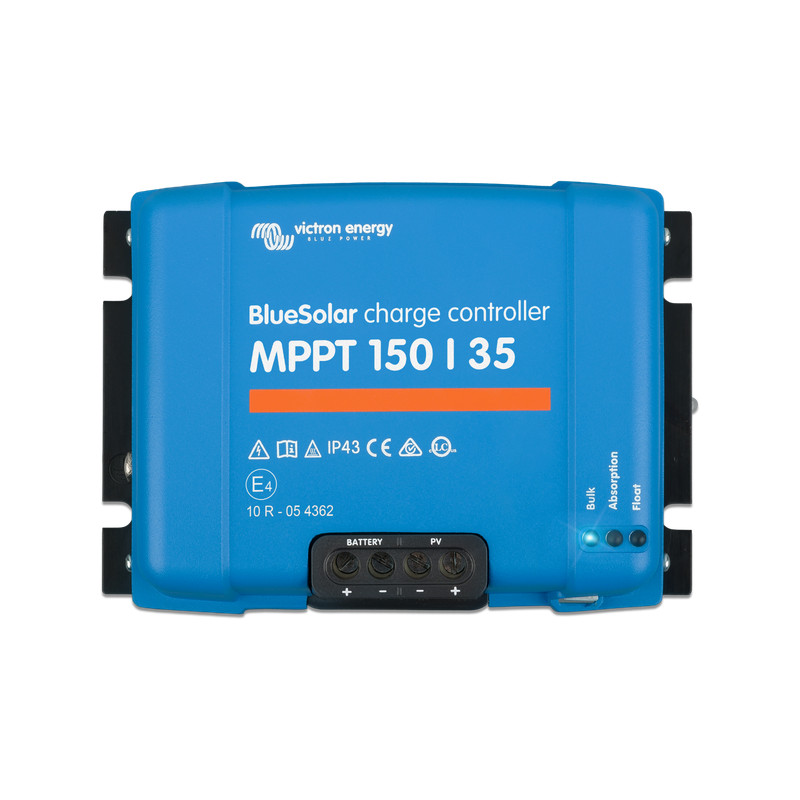

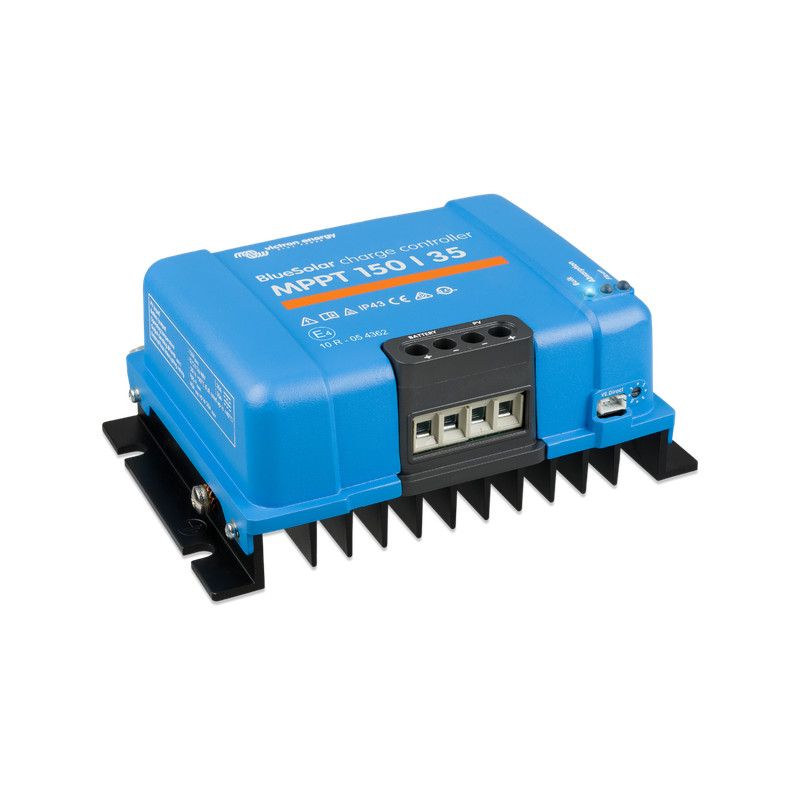

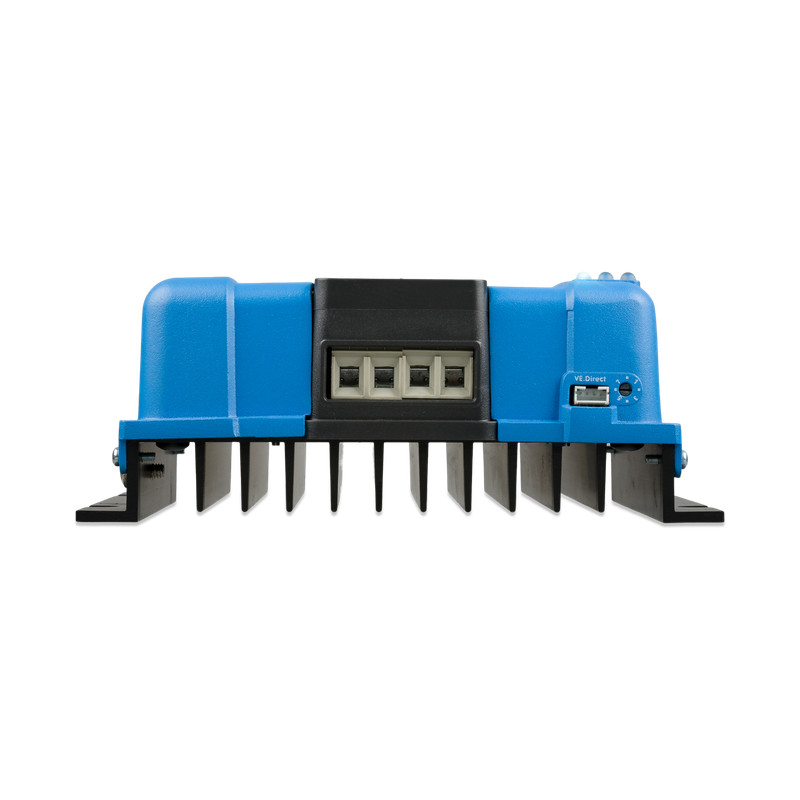

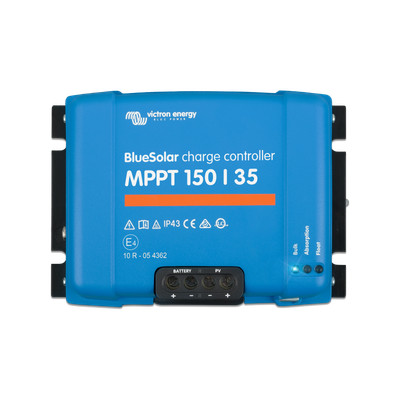

Charge Controller BlueSolar MPPT 150/35

BlueSolar MPPT 150/35

Battery voltage (auto select)

12 / 24 / 48 V
(software tool needed to select 36V)

Rated charge current

35 A

Nominal PV power _{(1a, 1b)}

12 V : 500 W
24 V : 1000 W
36 V : 1500 W
48 V : 2000 W

Max. PV short circuit current ₍₂₎

40 A

Max. PV open circuit voltage

150V absolute maximum coldest conditions
145V start-up and operating maximum

Peak efficiency

98%

Self-consumption

12 V: 20 mA
24 V: 15 mA
48 V: 10 mA

Charge voltage "absorption"

Default setting: 14,4 / 28,8 / 43,2 / 57,6 V (adjustable)

Charge voltage "float"

Default setting: 13,8 / 27,6 / 41,4 / 55,2 V (adjustable)

Charge algorithm

Multi-stage adaptive
(eight pre-programmed algorithms)

Temperature compensation

-16 mV / -32 mV / -64 mV /°C

Protection

PV reverse polarity
output short circuit
over-temperature

Operating temperature

-30 to +60°C (full rated output up to 40°C)

Humidity

95% non-condensing

Data communication port

VE.Direct (see the data communication white paper on our website)

ENCLOSURE

Colour

Blue (RAL 5012)

Power terminals

16 mm ² / AWG6

Protection category

IP43 (electronic components),
IP22 (connection area)

Weight

1,25 kg

Dimensions (h x w x d)

130 x 186 x 70 mm

STANDARDS

Safety

EN-IEC 62109-1,
UL 1741, CSA C22.2

FOOTNOTES
