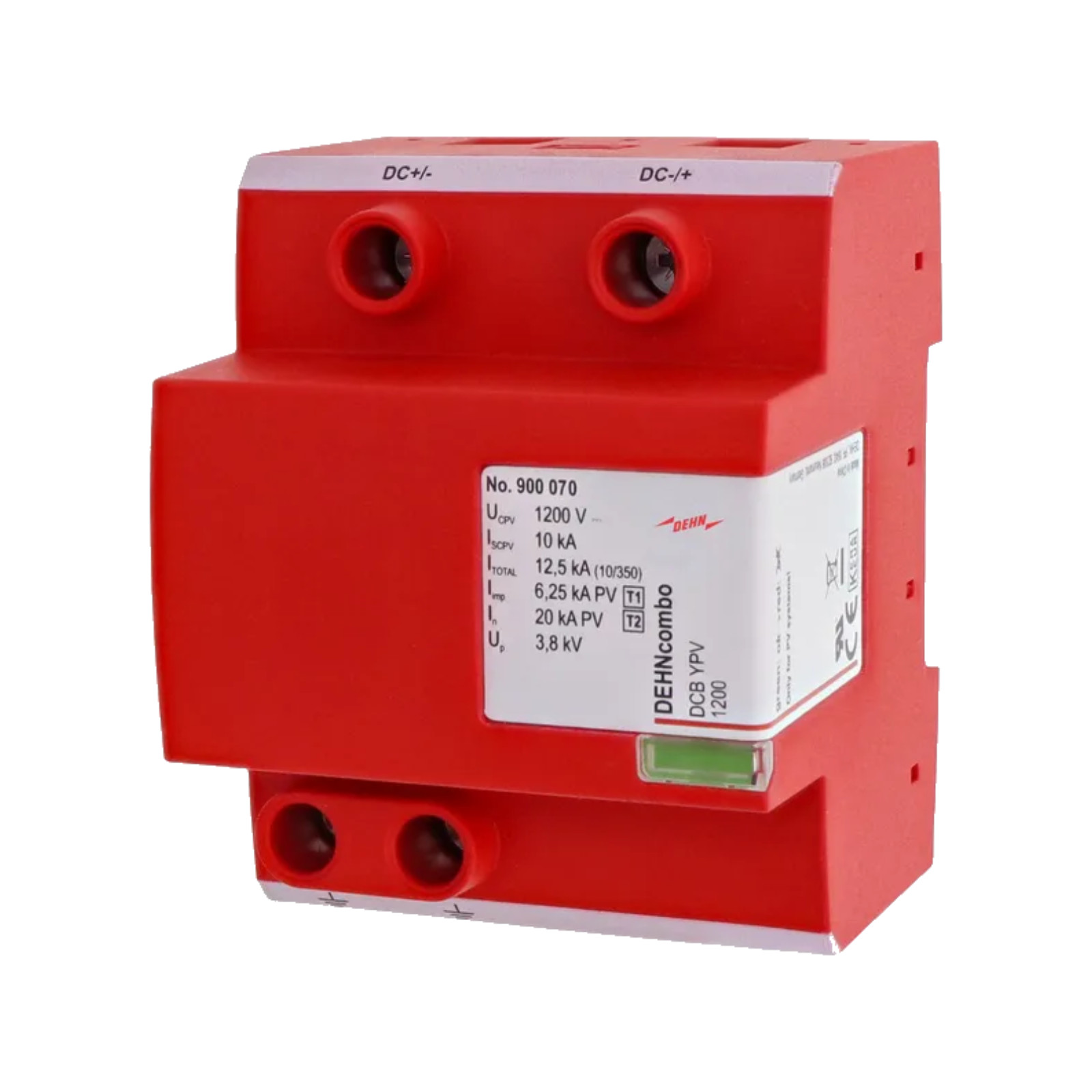

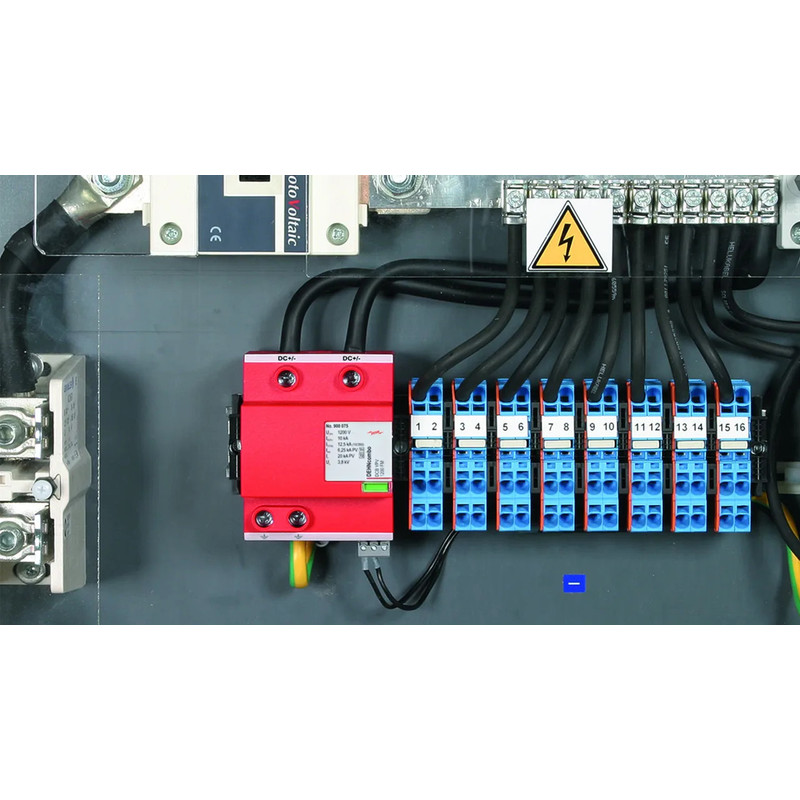

Surge Protector DEHNcombo DCB YPV 1200 - 900070
Combined lightning current and surge arrester for use in photovoltaic power supply systems up to 1500 V d.c.
Деталі продукту
- Бренд
- DEHN
- Артикул
- 900070
- код EAN13
- 6942299504521
- MPN
- 900070
Технічна документація
Brak danych technicznych
Опис
Description
Photovoltaic system protection
DEHNcombo YPV
Combined type 1+2 surge protective device for photovoltaic installations up to 1500V DC
Advanced surge protection technology
DEHNcombo YPV is a professional surge protective device combining type 1 and type 2 protection, specifically designed for photovoltaic installations with high DC voltages up to 1500V.
The device provides comprehensive protection against atmospheric surges and switching overvoltages, protecting photovoltaic inverters from damage caused by direct lightning strikes and ensuring reliable operation of your solar power system.
Compact design with only 4 DIN modules width saves valuable panel space while providing the highest level of protection in accordance with EN 61643-31 and IEC 60364-7-712 standards.
Key Features
- Type 1 + Type 2 protection in one device
- High voltage DC applications up to 1500V
- High lightning impulse current capability
- Visual status indication: green/red
- Certified: KEMA, UL approved
Innovative technical solutions
Advanced fail-safe Y circuit provides protection against damage in case of insulation faults in the generator circuit.
The device features a prewired fault-resistant Y circuit that prevents damage to the surge protective device in case of insulation faults in the generator circuit. The rated voltage is the same for all modes of protection, allowing the arrester to be used in earthed systems as well.
Space-saving enclosure with only four modules width accommodates modern high-voltage photovoltaic systems while maintaining compact dimensions for efficient panel space utilization.
-40°C to +80°C
≤ 25 ns
Easy installation and operation
Professional DIN rail mounting with intuitive status indication for reliable operation monitoring.
The device may only be connected and installed by an electrically skilled person, observing national standards and safety regulations in accordance with IEC 60364-7-712. The compact design occupies only 4 modules on a standard DIN rail.
Built-in status indicator in the inspection window provides clear operational feedback - green indicates normal operation, while red signals a fault condition requiring device replacement.
Installation requirements
- Installation by qualified electrician only
- Indoor installation only (IP20)
- Flexible cable cross-section range
DC battery storage system compatibility
Advanced application capabilities in DC systems with battery storage and high short-circuit current ratings.
DEHNcombo YPV series can be utilized in DC battery storage systems with high short-circuit currents. For such applications, appropriate backup fuses are required to ensure safe operation and comprehensive system protection.
Professional backup protection:
-
High-voltage DC fuses
Specialized backup fuses for battery systems -
aR-type protection
Fast-acting semiconductor protection
Specifications
DEHNcombo (900070) |
|
| SPD according to EN 61643-31 / IEC 61643-31 | type 1 + type 2 / class I + class II |
| Max. PV voltage [DC+ -> DC-] (U CPV ) | ≤ 1200 V |
| Max. PV voltage [DC+/DC- -> PE] (U CPV ) | ≤ 1200 V |
| Short-circuit current rating (I SCPV ) | 10 kA |
| Nominal discharge current (8/20 µs) (I n ) | 20 kA |
| Max. discharge current (8/20 µs) (I max ) | 40 kA |
| Total discharge current (8/20 µs) [DC+/DC- -> PE] (I total ) | 40 kA |
| Total discharge current (10/350 µs) [DC+/DC- -> PE] (I total ) | 12.5 kA |
| Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I imp ) | 6.25 kA |
| Voltage protection level [(DC+/DC-) -> PE] (U P ) | < 3.8 kV |
| Voltage protection level [DC+ -> DC-] (U P ) | < 3.8 kV |
| Response time (t A ) | ≤ 25 ns |
| Operating temperature range (T U ) | -40 °C ... +80 °C |
| Operating state / fault indication | green / red |
| Number of ports | 1 |
| Cross-sectional area (min.) | 1.5 mm 2 solid / flexible |
| Cross-sectional area (max.) | 35 mm 2 stranded / 25 mm 2 flexible |
| For mounting on | 35 mm DIN rails acc. to EN 60715 |
| Enclosure material | thermoplastic, red, UL 94 V-0 |
| Place of installation | indoor installation |
| Degree of protection | IP 20 |

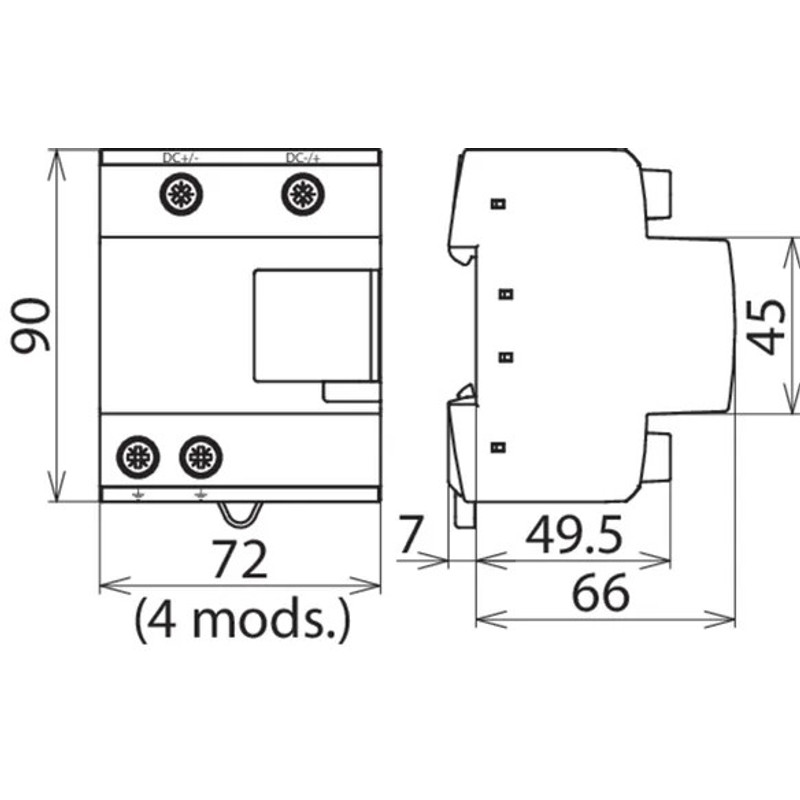

| Dimensions | 4 module(s), DIN 43880 |
| Approvals | KEMA, UL |
| Extended technical data: | --------------------------------- |
| – Use in DC battery storage systems up to I SCCR | ≤ 100 kA (t ≤ 5.83 ms) |
| – Backup fuse for DC battery storage systems up to I SCCR | Bussman HLS 2000Vdc / 200 A 2+/A173 DST aR, manufacturer's Part. No.: 170M2040 |
| – Backup fuse for DC battery storage systems up to I SCCR | Mersen Protistor D122SD20C200QF 200A 2000V DC aR |
| Manual | DEHNcombo_User_Manual.pdf |
