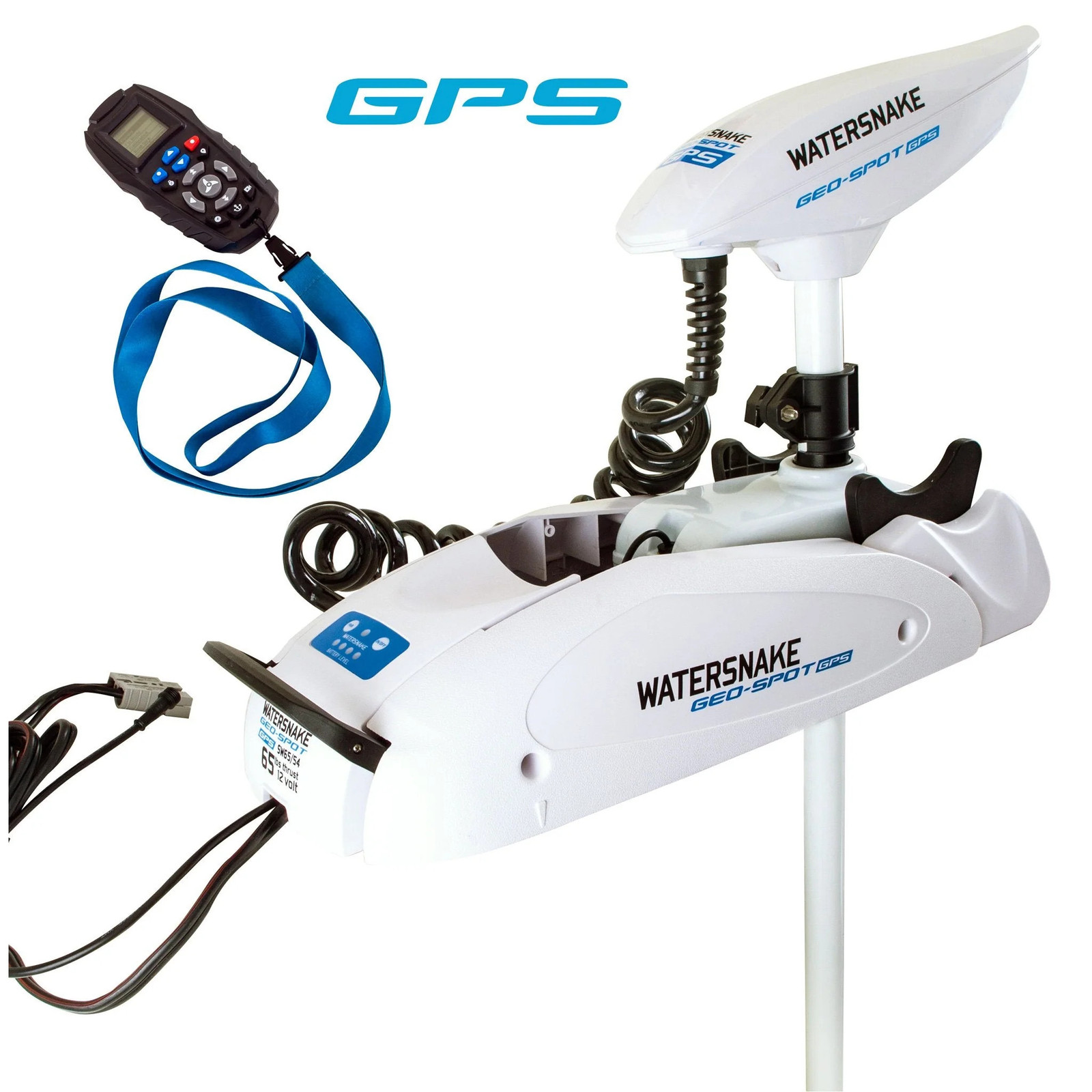

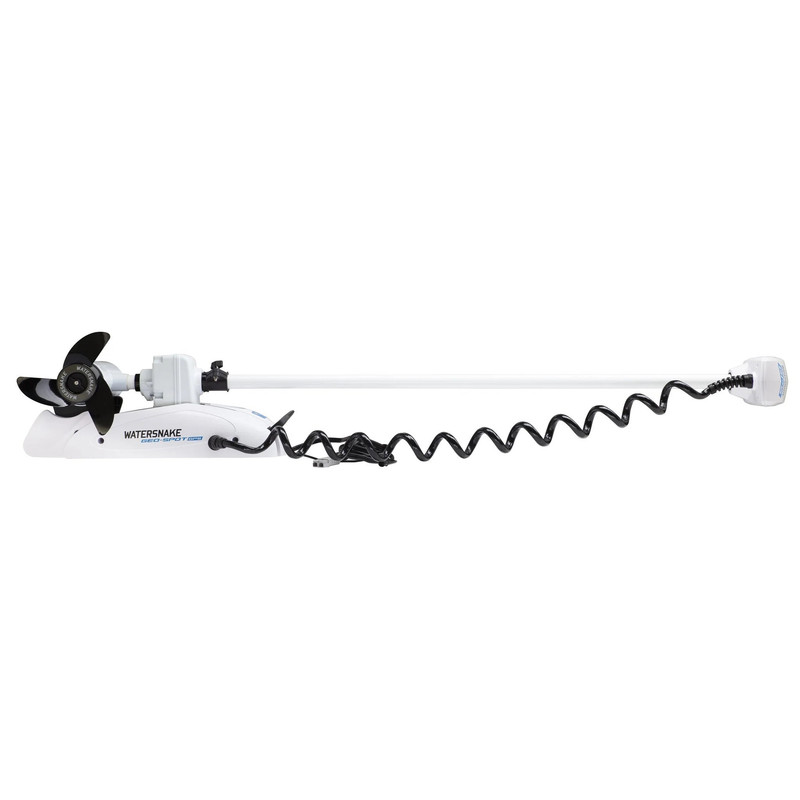

Electric bow mount motor with 65 pounds of thrust and a shorter 54-inch shaft (137 cm), perfect for smaller fishing boats. Equipped with a GPS system featuring anchor mode and navigation mode. Draws maximum 50 amps, providing a good balance between power and energy consumption.
A true breakthrough in GPS motor technology
Watersnake Geo-Spot bow mount motors are a true breakthrough in GPS motor technology thanks to features like anchor mode, pilot mode, and navigation mode.
The GEOSPOT 65 series offers impressive thrust up to 65 lb, drawing only up to 50 amps of power. Welcome long hours on the water! And despite all this power, they only need one 12V battery to operate.
Motors are available in shaft length variants of 54" (137 cm) or 66" (167 cm), allowing you to perfectly match a model to your boat.

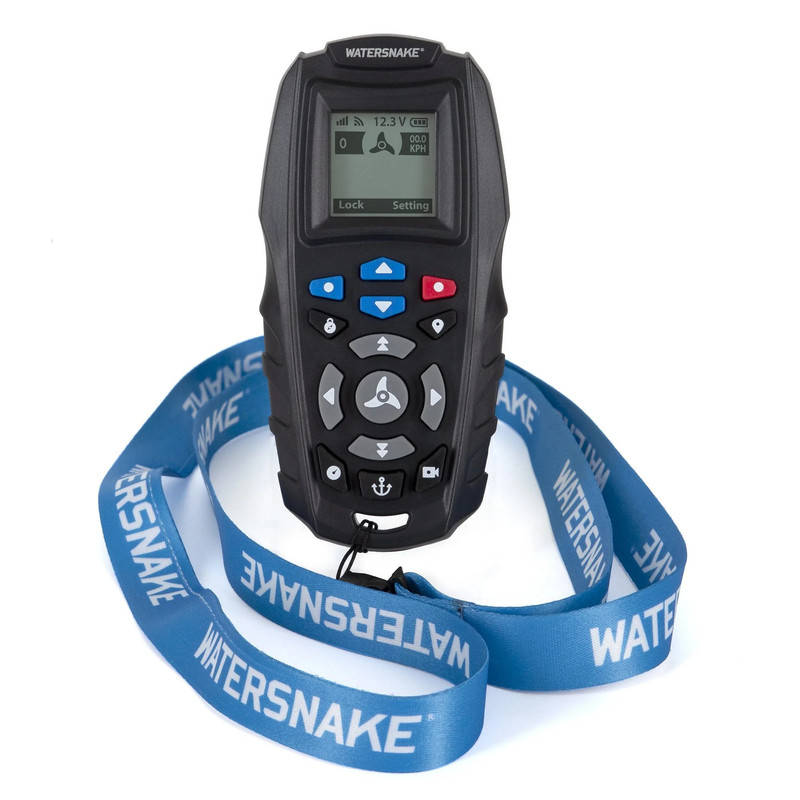

All of this is controlled with a splash-resistant handheld remote, giving you control from anywhere on your boat. The Geo-Spot is also compatible with an optional foot pedal controller sold separately.
Every angler's favorite mode, maintaining position better than other models. Simply press the Anchor button to maintain your position, despite wind, tides, or waves.
With these modes, you can maintain direction and speed relative to the bottom regardless of wind and current, focusing on fishing rather than steering the boat.
If you want to regularly navigate specific areas, such as winding coastlines, these modes are for you. After recording a track (up to 5 km in length), you can autonomously replay that track whenever you want. The Geo-Spot can store up to 16 tracks at once.
Despite the strong 65 lb thrust, the motor draws only 50 amps of power, ensuring long hours on the water. It operates with a single 12V battery (recommended minimum capacity 95 Ah).
| Geo Spot GPS SW65/54 | |
|
CODE |
55313 |
|
THRUST |
65lb |
|
VOLTS |
12v |
|
AMP DRAW |
0-50A |
|
WATTS (MAX) |
420W |
|
SPEEDS |
Variable |
|
MAX PROP RPM |
1650rpm |
|
MOTOR WEIGHT |
15KG |
|
SHAFT |
54" (137cm) |
|
SHAFT DIA. |
1.2 Inches (30mm) |
|
SHAFT WALL THICKNESS |
4.25mm |
|
STEERING |
GPS, Remote Control Fob |
|
PROP |
3-Blade (94mm Pitch) |
|
REMOTE CONTROL |
Digital Fob |
|
MOUNTING |
Bow Mount XB Bracket |
|
WIRE GAUGE |
10AWG |
|
BATTERY REQUIRED |
12V Deep Cycle or LIFePO4 Lithium |
|
SUGGESTED MINIMUM BATTERY CAPACITY |
100 Amp hours or more |
|
SUGGESTED MAXIMUM BOAT WEIGHT |
Up To 750kg |
